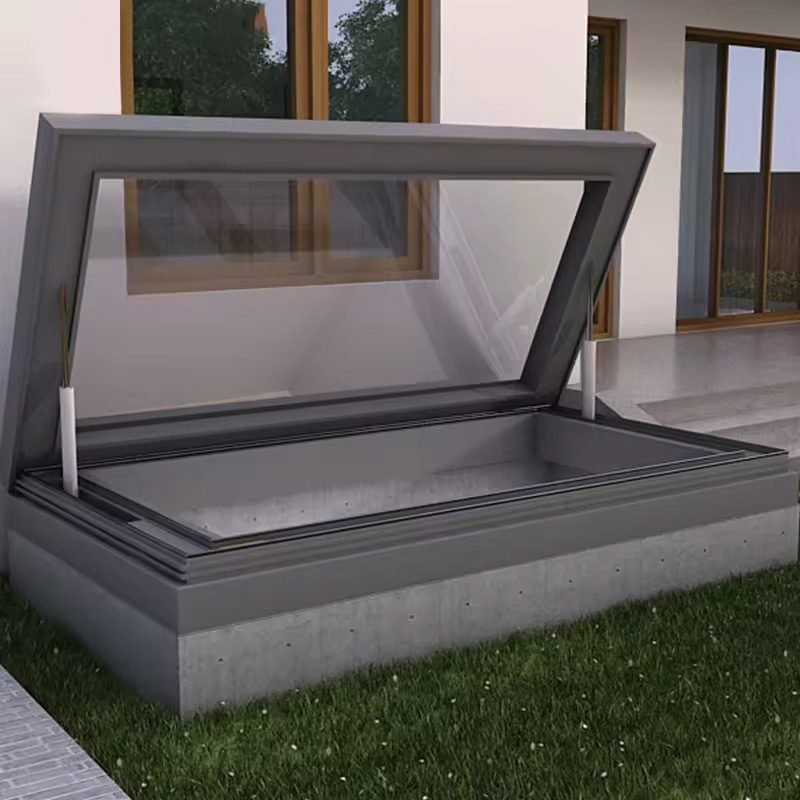

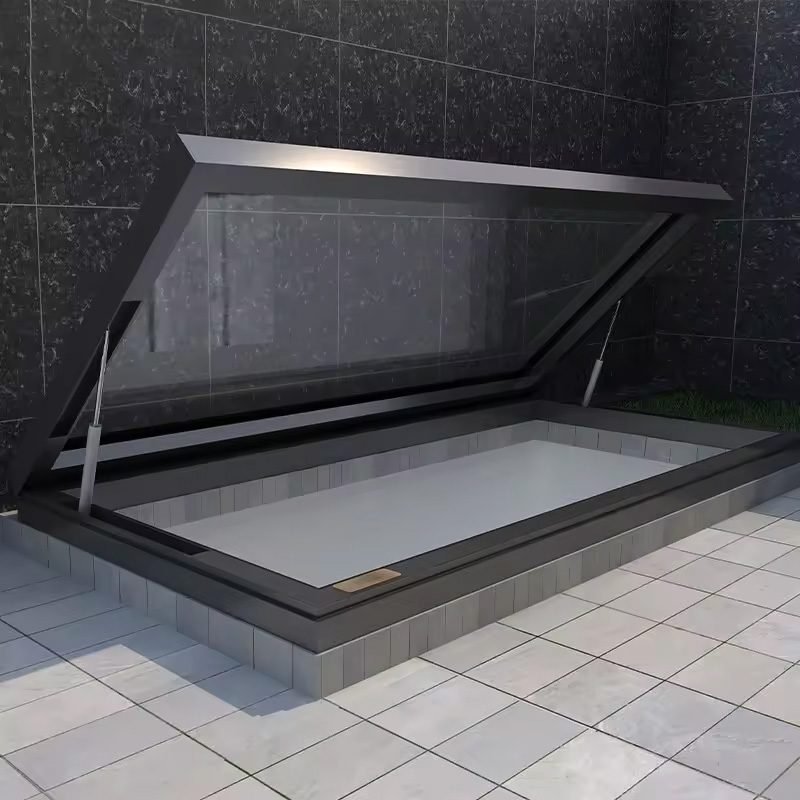

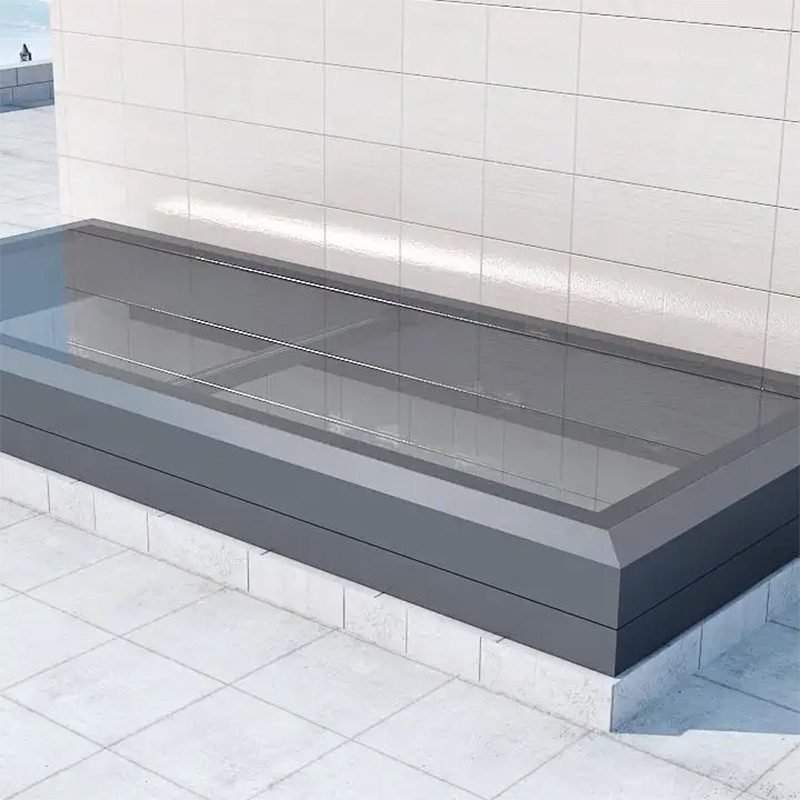

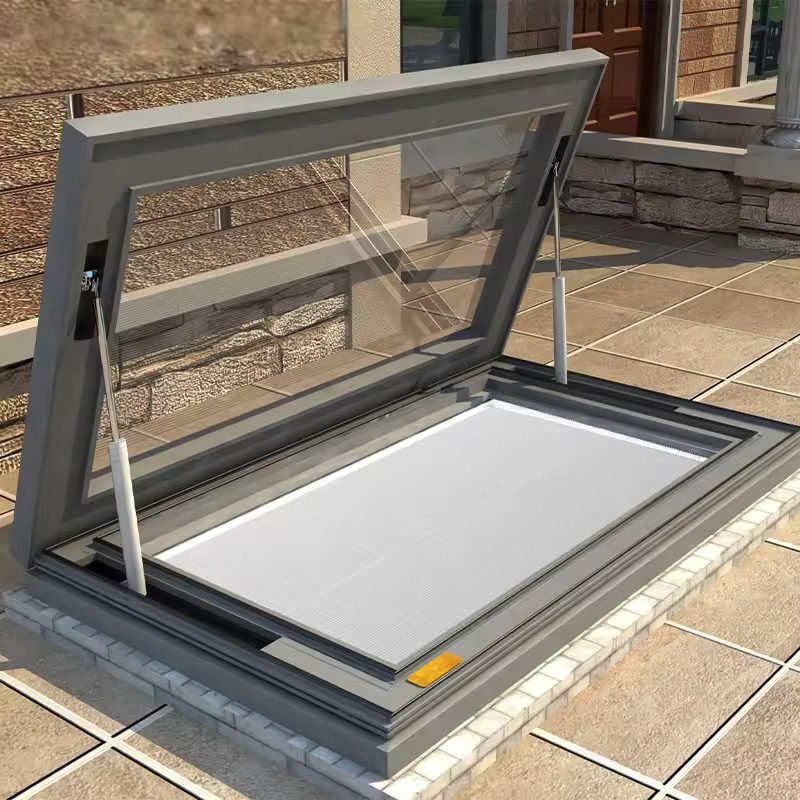

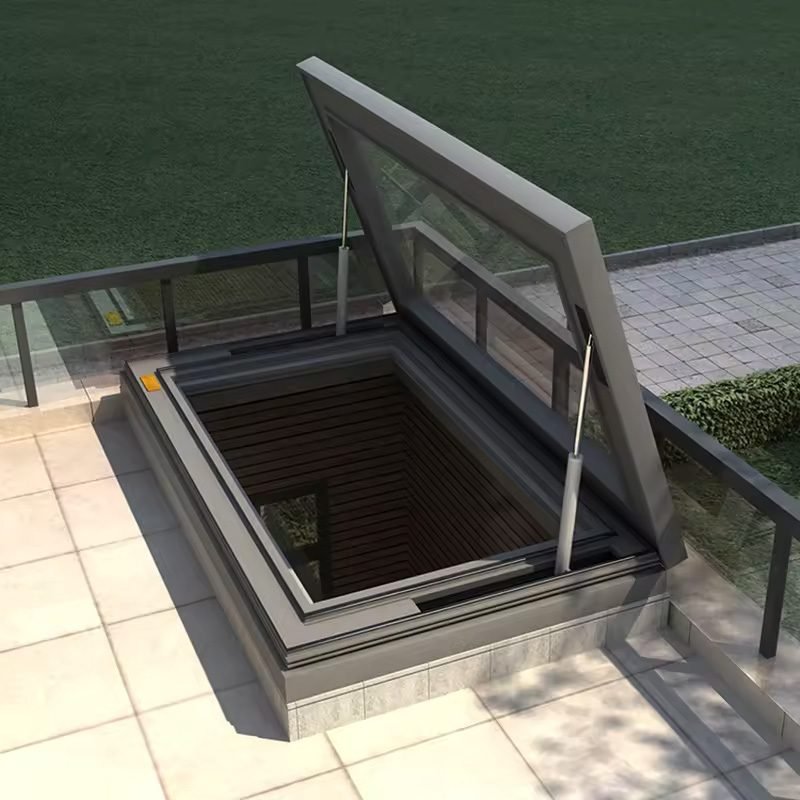

Ventilated Design Glass Roof Window Skylight
A ventilated glass roof window or skylight combines abundant natural light with controlled, fresh airflow. Ideal for kitchens, Living Room, bathrooms, and attic conversions, these systems feature thermally broken frames and impact-resistant glazing to balance maximum daylighting with weather protection and energy efficiency
Design & Functional Features
Glazing & Insulation: Typically utilizes double or triple tempered, low-E (low-emissivity) glass to block harmful UV rays, reduce solar heat gain, and maintain comfortable indoor temperatures.
Electric Openable Operation Styles:
- Manual: Operates via a telescopic crank handle or screw-jack mechanism.
- Electric/Motorized: Chain – actuated or motor-driven systems that seamlessly integrate with remote controls, wall switches, or smear building systems.

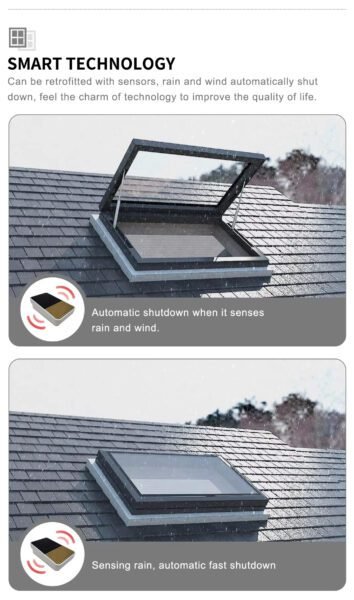

- Solar-Powered: Features built-in solar panels and rain sensors, allowing for automated, energy-efficient climate control
- Frame Materials: Built with durable, rust-resistant materials such as extruded aluminum alloy, which provides structural strength without adding excessive weight to the roof.
- Ventilation & Airflow: Designed to open outward, pivot, or slide, allowing warm, stale air to escape while drawing fresh air in. Many units include integrated fiberglass insect screens.
Features
| Product Name | Aluminum Sunroom |
| Frame Material | Aluminum Alloy |
| Product Parameters | Opening method |
| Feature Magnetic Screen | Folding Screen |
| Function | anti-theft |
| Application | Basement |
| Design Style | Modern |
| Design limitations | Maximum area of single leaf≤4m2 Single leaf 650mm≤height(H)≤4000mm Single leaf width(W)≤4000mm |
| Standard Configuration | material:6063-T5 Aluminum profile Thickness:2mm Lap surface:90mm Total height of frame:190mm Total width of frame:90mm |
| Glass configuration(Selective) | 5mm+27Ar+5mm 5mm+1.52pvb+5mm 5mm+22Ar+5mm+0.76pvb+5mm Optional other glass and colored glass |
| Standard profile | silent safety motor patent control system Mute waterproof switch 304 stainless steel solid bearing pulley Solid steel reinforced corner code Product Concept |
| Project Solution Capability | total solution for projects |
| Opening Pattern | Horizontal |
| Screen Netting Material | Nylon |
| Open Style | Automatic |
| Roof Design | Arc, Flat, Polygon, Slant, Triangle, etc |
| Curtain Type | Louver |
| Product Name | Basement glass roofing |
| Material | Aluminum Alloy + Glass + Accessories |
| Color | 12 Colors For Option |
| Surface treatment | Powder Coated, Whole window electrostatic powder spraying |
| Glass | Hollow Glass / Laminated Glass, Glued glass, Coated glass, Insulating Glass, High insulation float glass and other materials |
| Application | Residential / Commercial / Industry |
| Size | Customized Size |
| Advantage | Daylighting / Ventilation / Soundproof / Impact Resistance |
| Technology Support | Make 3D design and offer installation video |
| Single package size | 100X100X100 cm |
| Single gross weight | 100.000 kg |
Electric Vertical Lifting Skylight – Efficient Ventilation
