Telescopic Sliding Gate Motor
| Notice | If you want to place an order, please get in touch with the seller, and we will calculate the cheapest freight for you! |
Telescopic gates are a popular choice for homeowners seeking to enhance the security and aesthetics of their properties. With their innovative design and advanced features, these gates provide a durable and stylish solution for residential entrances

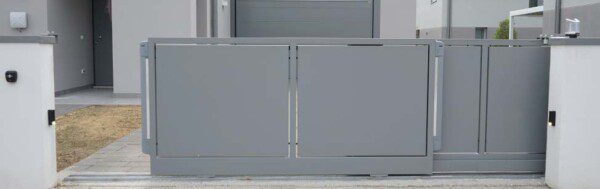

The Structure of the telescopic sliding gate consists of two or more modular wings, and the way it works is similar to a telescope – when the wings are closed, they move one after the other. The telescopic gate, like the sliding gate, can slide on a rail or as a self-supporting structure.
The Sliding Gate Motor MR-TSGM1000 is designed with an AC motor, and the gear rack operator provides a soft start, lasting operation, and slow down which make it ideal for most applications. It is an all-in-one motor and control panel, making it simple to install and extremely compact and neat.
Benefits of Telescopic Sliding Gate Motor:
- The structure of integrated mechanic part and electronic part with built-in control panel, no external controllers needed;
- When power fails, use an Allen key to release the clutch, and push the door manually.
- Gate auto stop and re-open when an obstacle is encountered.
- Auto close time can be adjusted from approximately 3 to 120 seconds.
- Spring limit switch and magnetic limit switch for optional.
- DC all-in-one machine: battery and transformer have been assembled inside of the motor.
Specification:
| ITEMÂ | Â DESCRIPTION |
| Brand Name | Â MR. TECH |
| Model Number | Â MR-TSGM1000 |
| Type | Â Automatic Gate Operator |
| Name | Â Telescopic Sliding Gate Motor |
| Material | Â Aluminum & Plastic |
| Power Supply | Â 220v AC / 110v AC / 24v DC |
| Rated Motor power | Â 250 W |
| Max. Loading | Â 1000 KG |
| Output Speed | Â 50 r/min |
| Open/close Speed | 16 m/min |
| Limit Switch Type | Â Magnetic / Spring |
| Output Torque | Â 30 N.m |
| Max. pull force | 1200N |
| MOQ | 3 Set |
| Application | Residential, Apartments, Industrials, etc. |
| Accessories Included With Sliding Gate Motor MR-TSGM1000 | Control Panel with Box, Base Mount Plate, Remote With Receiver, Safety Sensor, Pinion, and Fitting Accessories. |
| Optional Accessories | Photo Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port. |
Control panel main features of telescopic sliding gate motor
- Single button control circularly /three buttons control can be closed
- Alarm lamp interface
- Automatic closing time adjustable
- Pedestrian mode
- soft start, soft stop
- Terminal for open only, close only for the external control device.
- The gate will auto-stop and re-open when an obstacle is encountered
- Battery accepted in the case of power failure
