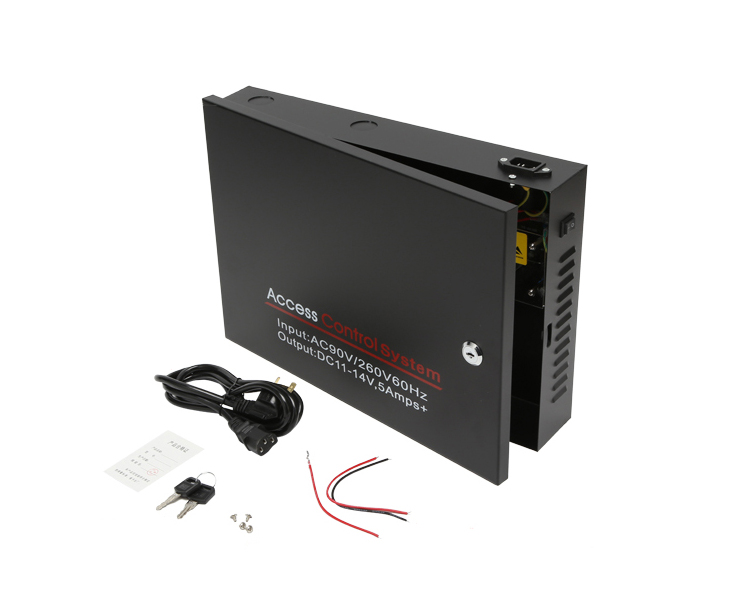

TCP/IP Network Access Control Board Power Supply MR-PSB240


Door access control system are digital security systems that ensure authorized access to your building.

TCP/IP Network Access Control Board Power Supply MR-PSB240

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!

Single panel door control TCP/IP with AC110 to 240V 5A Network Access control security door controls TCP/IP Network Access Control Board Power Supply MR-PSB240

Ethernet One Door Network Access Control Panel for Door Access Control and Parking Management Access Control

What does Network Access Control do?

Advanced Network access control is the act of keeping unauthorized users and devices out of a private network. TCP/IP Network Access Control Board Power Supply, or NAC, is one aspect of network security. There are many NAC tools available, and the functions are often performed by a network access server.

Single panel door control TCP/IP with AC110 to 240V 5A Network Access control security door controls TCP/IP Network Access Control Board Power Supply MR-PSB240

Specification:

ItemTCP/IP Network Access Control Board Power Supply
ModelMR-PSB240
Input VoltageAC100∼240V, 50Hz∼60Hz
Output VoltageDC9V∼16V
Output Current5A
Dimension371 x 266 x 66mm
Packaging box395 x 270 x 74mm
Weight2.04kg

TCP/IP Network Access Control Board Power Supply MR-PSB240 Single panel door control TCP/IP with AC110 to 240V 5A Network Access control security door controls

Features:

TCP/IP Network Access Control Board Power Supply features are listed below;

  • Directly control electric lock to reduce the load of access controller.
  • NC output can control all kinds of electric lock.
  • Setup unlock button input to directly open lock.
  • Automatically cut down power or burn out fuse when short circuit and other accidents happen.
  • With strong anti-interference ability, excellent stability and reliability.
  • Apply to all building intercom and access control systems, particularly for driving all kinds of electric locks.

TCPIP Network Access Control Board Power Supply MR-PSB240

TCP/IP Network Access Control Board Power Supply Technical Specification:

ParameterSingle Door Control PanelMulti Door (2) Control PanelMulti Door (4) Control Panel
Model #ACB-001ACB-002ACB-004
CommunicationTCP/IP 10M/100M adaptiveTCP/IP 10M/100M adaptiveTCP/IP 10M/100M adaptive
DescriptionControl 1 door, get in and out the door by swiping the card, or get in by swiping the card and get out the door by buttonControl 2 doors, get in and out the door by swiping the card or get in by swiping the card and get out the door by buttonControl 4 doors, get in the door by swiping the card, and get outdoor by button
Size of PCB board160mm *106mm160mm *106mm218mm *106mm
Size of Case273mm*228mm*65mm
Power Supply12VDC 4-7A
Power Consumption of Circuit BoardLess than 100mA
Input Format of ReaderWiegand 26 (All card readers with compatible protocol, such as Motorola, HID, EM, Mifare one, etc)
Quantity of Readers2pcs4pcs4 pcs
Door Controlled1door2 Doors4 Doors
Door opening time extending setting1-600 seconds(adjustable)
Max q ‘ ty of controllerNo limit







TCP/IP Network Access Control Board Power Supply MR-PSB240 Single panel door control TCP/IP with AC110 to 240V 5A Network Access control security door controls

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!
ItemTCP/IP Network Access Control Board Power Supply
ModelMR-PSB240
Input VoltageAC100∼240V, 50Hz∼60Hz
Output VoltageDC9V∼16V
Output Current5A
Dimension371 x 266 x 66mm
Packaging box395 x 270 x 74mm
Weight2.04kg
