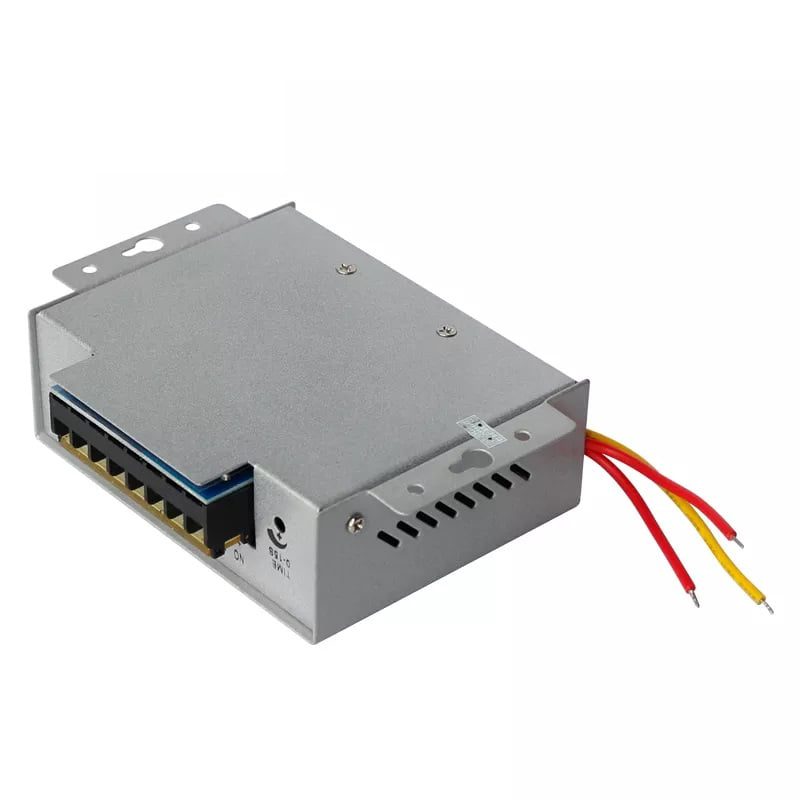

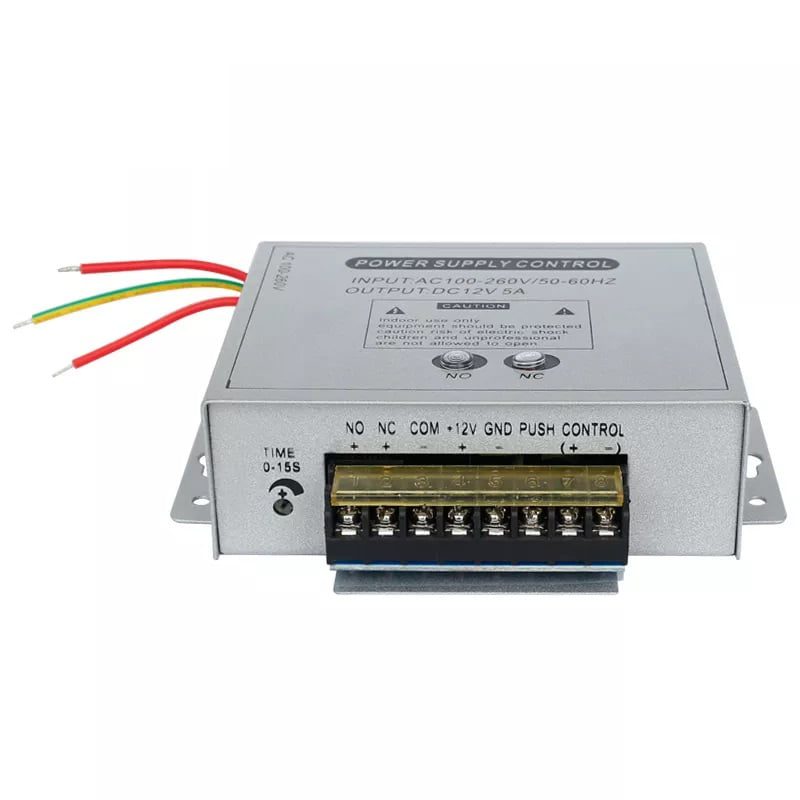

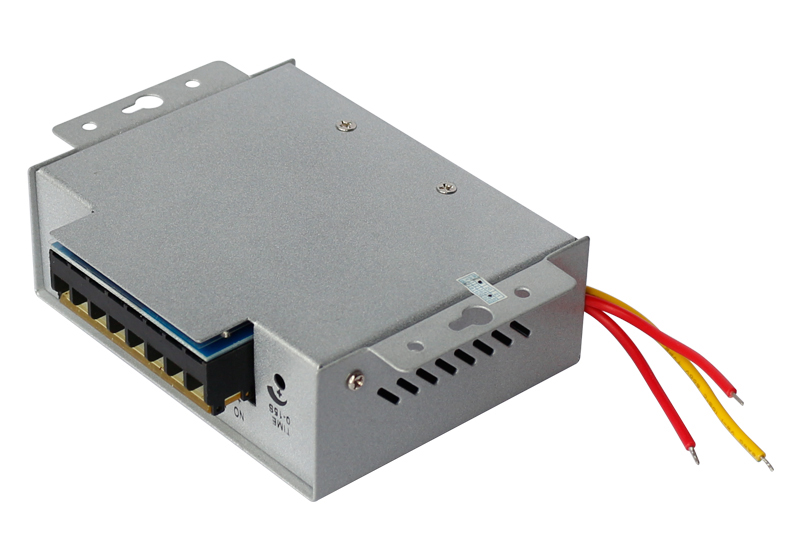

12V 5A Switching Access Power Supply Access Control System


The products are applicable to all kinds of electronic equipment’s, New all metal shell design is more humanized

12V 5A Switching Access Power Input Voltage AC100 Uninterruptible Supply Access Control System

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!

12V 5A Switching Access Power Input Voltage AC100 Uninterruptible Supply Access Control System

12V 5A Switching Access Power Input Voltage AC100 Uninterruptible Supply Access Control System

Features of 12V 5A Switching Access Power Supply :

  • 12V 5A Switching Access Power Supply – Input AC 220V/50HZ, Output DC 12V stabilized 3A/5A

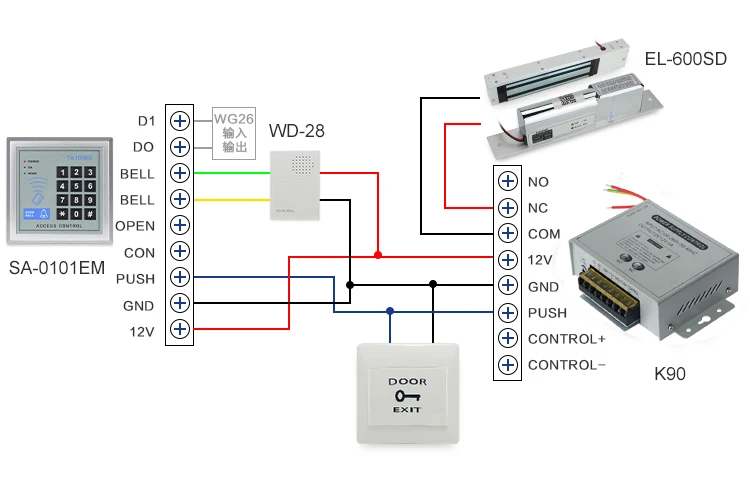

  • Direct control of door locks to reduce loading on door inhibitors, anti-disturbance, reduced wiring to save costs and reduce possible faults.
  • N/O and N/C contacts for connection to various electric locks.
  • Automatic protecting power will be temporarily disconnected or fuse will blow when there is overloading or short circuit.
  • Delayed switching, settable between 0-15 seconds.
  • Remote control with an optional remote control module. A remote controller is used to activate doors/gates control range is up to 80mm at open field with no disturbance.

12V 5A Switching Access Power Input Voltage AC100 Uninterruptible Supply Access Control System

12V 5A Switching Access Power Input Voltage AC100 Uninterruptible Supply Access Control System

12V 5A Switching Access Power Supply specifications:

ModelK90
Input VoltageAC100-260V
Output VoltageDC 12V
Output Current5A
Power50W
Lock VoltageDC12V. NO or NC
Time delay0-15S
Dimension140 x 100 x 39mm
Packing box150 x 108 x 48mm
Weight0.42KG



12V 5A Switching Access Power Input Voltage AC100 Uninterruptible Supply Access Control System

Advantages of power supply access control system:

12V 5A Switching Access Power Supply unit, Several benefits which elevates the performance

  1. Universal AC input/full range.
  2. Withstand 300V AC surge input for 5 second
  3. No load power Consumption<0.2w
  4. Miniature size and 1U low profile
  5. High operating temperature up to 70ºC
  6. Protections: short circuit/ overload / over voltage
  7. Cooling by free air convection
  8. Operating altitude up to 5000 meters
  9. Withstand 5G vibration test
  10. High efficiency, long life and high reliability
  11. 100% full load burn-in test

12V 5A Switching Access Power Input Voltage AC100 Uninterruptible Supply Access Control System

12V 5A Switching Access Power Input Voltage AC100 Uninterruptible Supply Access Control System12V 5A Switching Access Power Input Voltage AC100 Uninterruptible Supply Access Control System12V 5A Switching Access Power Input Voltage AC100 Uninterruptible Supply Access Control System

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!
ModelK90
Input VoltageAC100-260V
Output VoltageDC 12V
Output Current5A
Power50W
Lock VoltageDC12V. NO or NC
Time delay0-15S
Dimension140 x 100 x 39mm
Packing box150 x 108 x 48mm
Weight0.42KG
