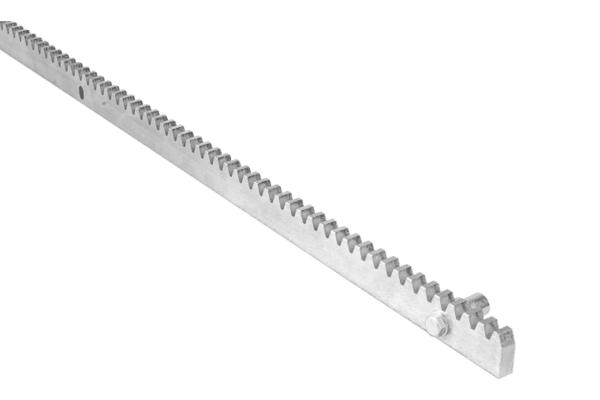

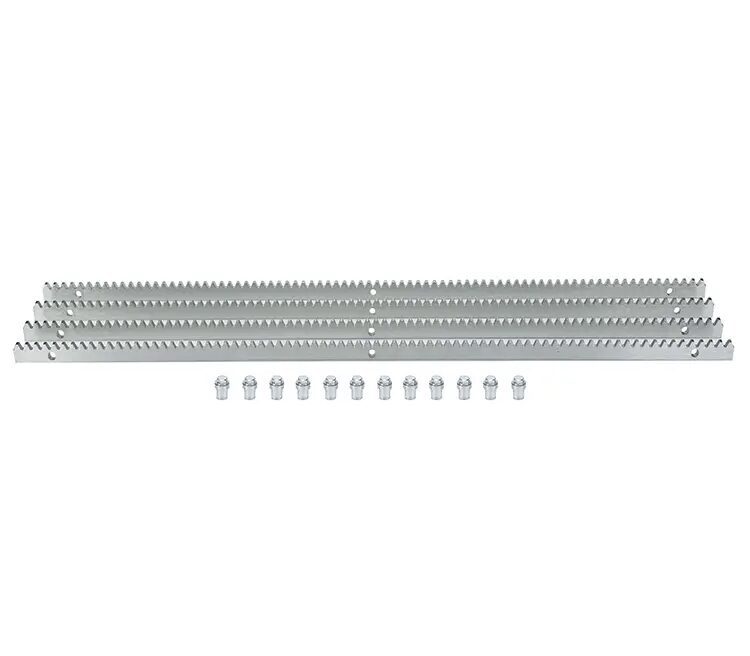

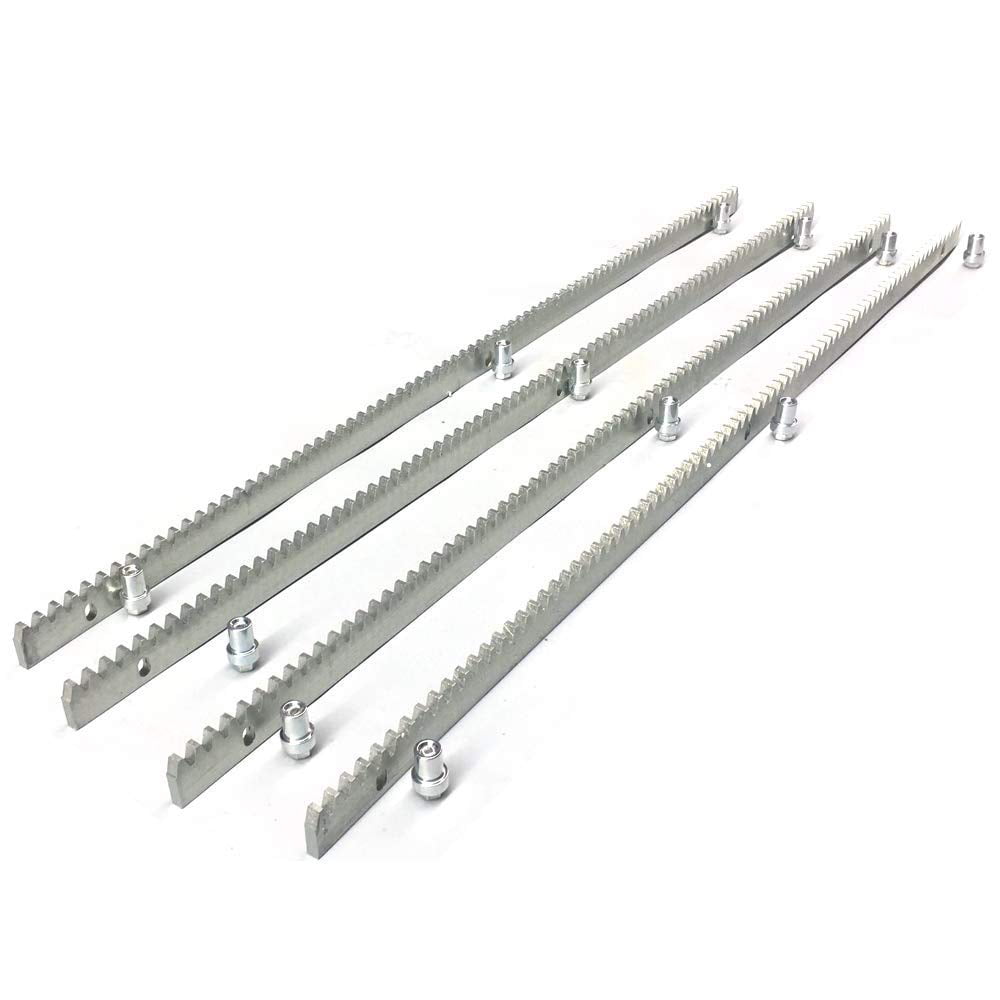

Module 4 Steel Rack With Fixing Staves for Sliding Gate Motor
MR. TECH Module 4 Steel GI Gear Rack with Fixing Staves, Galvanized mild Steel, Silver Finish, Made in India, Suitable for Cantilever and Sliding Gates.
Rack and pinions are used for lifting mechanisms (vertical movement), horizontal movement, positioning mechanisms, stoppers, and to permit the synchronous rotation of several shafts in general industrial machinery. On the other hand, they are also used in sliding gates for movement.
- MR. TECH Sliding Gate Gear Rack – Galvanised Steel (9-22 mm) with Three Studs
- Precision-Engineered for Smooth, Heavy-Duty Sliding Gate Automation
Product Overview
The MR. TECH Sliding Gate Gear Rack is a high-performance, hot-dip galvanised steel rack designed for smooth, quiet, and long-lasting sliding gate operation. Featuring a three-stud mounting system and available in multiple thicknesses (9 mm to 22 mm), this gear rack ensures optimal engagement with gate motor pinions, reducing wear and ensuring reliable, maintenance-free performance for years.
Key Features & Benefits
-  Hot-Dip Galvanised Steel – Superior rust & corrosion resistance for harsh outdoor conditions.
- Three-Stud Mounting System – Ensures secure alignment and prevents rack movement under load.
- Multiple Thickness Options (9 mm, 12 mm, 16 mm, 20 mm, 22 mm) – Compatible with most sliding gate motors.
- Precision-Cut Teeth – Minimizes backlash, noise, and motor strain for smoother operation.
- Heavy-Duty Construction – Built to withstand high-cycle use in industrial & residential applications.
- Easy Installation – Pre-drilled stud holes for quick, tool-free mounting.
Specification:
| Item | Description |
| Brand | MR, TECH |
| Model Number | MR-SGMR8, MR-SGMR9,MR-SGMR10, MR-SGMR12, MR-SGMR22 (customizable) |
| Product Name | Sliding Gate Motor Galvanized Steel Rack |
| Core Components | Gear Rack |
| Material | Q235 steel/ C45 steel /high-quality galvanized mild steel/High-strength carbon steel |
| Used For | Sliding Gate Motor Gi Rack |
| Finish | 270g/m2 Hot Dipped Galvanized |
| Color | Silver |
| Tooth Profile | Straight Teeth |
| Dimension/Thickness Range | 9 mm, 12 mm, 16 mm, 20 mm, 22 mm*30*1005mm /pcs |
| Length Options | 1m, 2m, 3m (custom lengths available) |
| Surface Treatment | Polished Hot-dip galvanised (ISO 1461) ensures long-term corrosion resistance. |

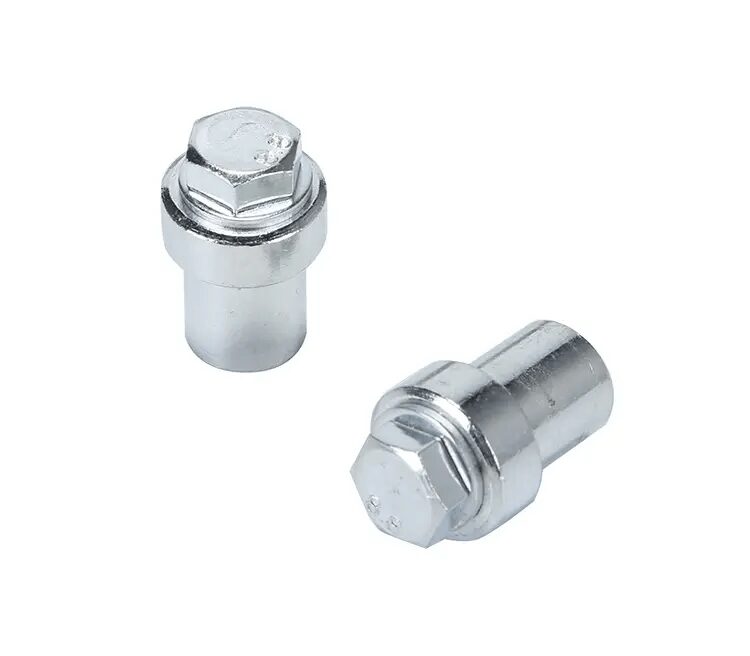

| Stud Configuration | 3-stud design (M8/M10) |
| Load Capacity | Up to 1500 kg (depends on motor pairing) |
| Feature | Corrosion Protection |

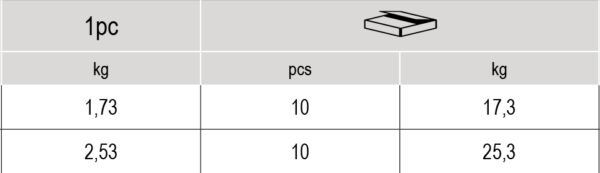

| Weight | 1.73-4.6KG |
| MOQ | 4set |
| Application | Sliding Door, Cantilever Sliding Gate, Window, Wardrobe Furniture |

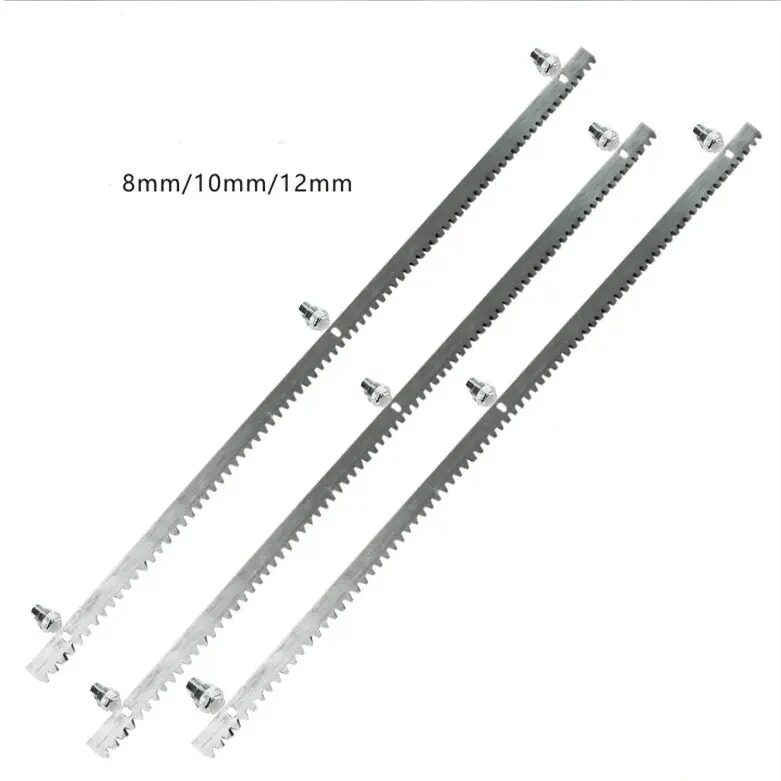

Gate Motor Galvanized Steel Rack Optional Sizes:
| THICKNESS | SIZE | WEIGHT |
| GI RACK – 8MM | 8*30*1005mm | 1.8kg |
| GI RACK – 10MM | 10*30*1005mm | 2.1kg |
| GI RACK – 12MM | 12*30*1005mm | 2.5kg |
| GI RACK – 22MM | 22*30*1005mm | 4.8kg |
Applications
- Residential & Commercial Sliding Gates
- Industrial & High-Security Perimeter Gates
- Automated Parking Barriers & Access Control Systems
Why Choose MR. TECH Sliding gate motor Gear Racks?
- Engineered for Durability – Lasts longer than standard racks, even in coastal/high-moisture areas.
- Smoother Gate Movement – Precision-machined teeth reduce motor wear and noise.
- Trusted Brand – Used by installers worldwide for reliable automation solutions.
Ordering Information
- Standard Lengths: 1m, 2m, 3m
- Custom Lengths & Modules Available (Contact for OEM/wholesale inquiries)
