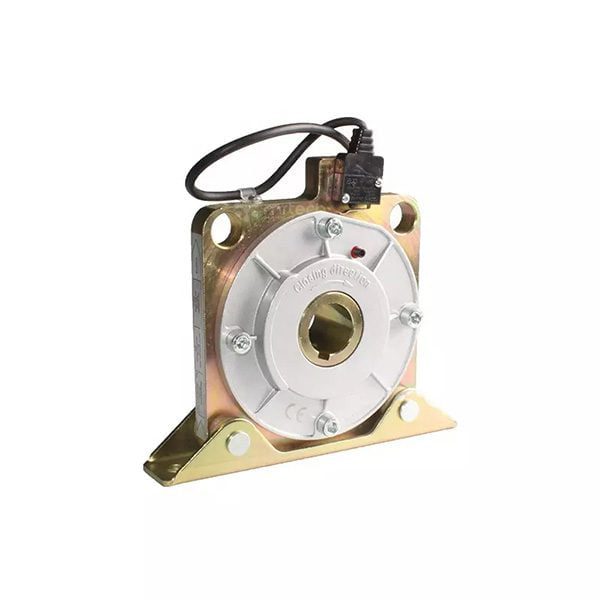

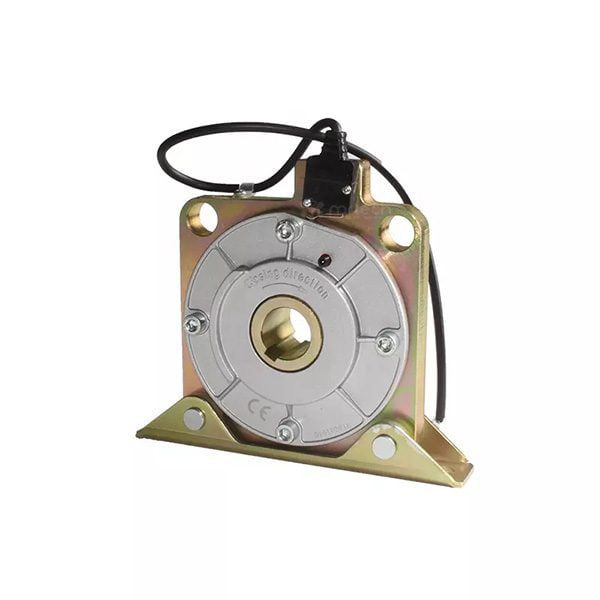

Safety Brake for Roller Shutter Door Single Way Operator

Safety Brake for Roller Shutter Door Single Way Operator protect users who pass underneath in the unfortunate event should the door fail and fall in a guillotine effect.

3 Items sold in last 2 days

Available on backorder

SEND US A MESSAGE

    CONTACT INFORMATION

    wd pointer

    Plot No 2, 4th St, Kailash Nagar, Tiruchirappalli,

    Tamil Nadu, India.

    Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.

    product delivery 1 Add  31,850.00 and we will send you the order for free shipping!
    product delivery 1

    Fast Shipping

    product meny products 1

    20k products

    product support 1

    24/7 Support

    product quality 1

    Delivery

    2842 People watching this product now!

    Payment Methods:

    2Q==

    Description

    Safety Brake for Roller Shutter Door Single Way Operator

    Safety Brake for Rolling Shutter Door Double Way Operator

    Notice If you want to place an order, please contact the seller, and we will calculate the cheapest freight for you!

    Protection against any single failure of a vulnerable suspension component must be protected such that the door is so light that it will only exert a low static weight of 20kg maximum when measured at the leading edge, in the least favorable position ( usually almost closed ) with single balancing system components failed, e.g. one single spring, cable, chain or drive unit disconnected.

    Safety Brake for Rolling Shutter Door Double Way Operator

    Parameters:

    BrandMRTECH
    Model NoMR RSB30
    Product NameSafety Brake for Roller Shutter Door Single Way Operator
    TypeShutter Accessories
    MaterialStainless Steel
    OperationSingle-way
    Max. Speed 22 (r/min)
    Run Torque365 N.m
    Instant Max. Torque1444 N.m
    Bolt Torque20 N.m
    Max. weight of shutter800kgs
    Bore square30 (mm)
    MOQ3 Set
    UsageRolling Shutter for Tubular Motors
    Package IncludedSafety brake system, Micro switch, Manuals
    ApplicationsWarehouses, Restaurants, Commercial Building, Hospital, etc..

    Safety Brake for Rolling Shutter Door Double Way Operator 6

    Advantages of Safety Brake for Roller Shutter Door Single Way Operator:

    1. Protection Device
    2. Act as pressure transmission.
    3. Well, function and long using life.
    4. Good quality with factory price.
    5. For garage door, rolling door, rolling shutter.
