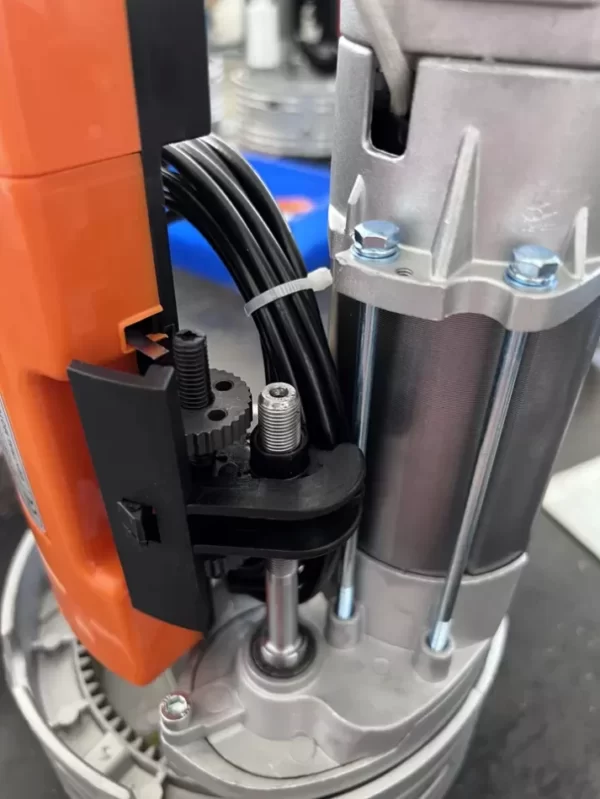

Rolling Shutter Center Motors MRTRS-180

Central Motor is a kind of motor, which is installed in the center of a shutter door, so we called it central motor.

Quantity Price Discount
0-5 19,101.00 kit 0%
6-20 18,527.97 kit 3%
21-100 17,763.93 kit 7%
101+ 16,617.87 kit 13%
3 Items sold in last 2 days

Original price was: ₹21,101.00.Current price is: ₹19,101.00.kit

1 in stock (can be backordered)

1 in stock (can be backordered)

SEND US A MESSAGE

    CONTACT INFORMATION

    wd pointer

    Plot No 2, 4th St, Kailash Nagar, Tiruchirappalli,

    Tamil Nadu, India.

    Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.

    product delivery 1 Add 35,000.00 and we will send you the order for free shipping!
    Ordered:5
    Items available:1
    product delivery 1

    Fast Shipping

    product meny products 1

    20k products

    product support 1

    24/7 Support

    product quality 1

    Delivery

    2621 People watching this product now!

    Payment Methods:

    2Q==

    Description

    Rolling Shutter Center Motors MRTRS-180

    Rolling shutter is commonly used for garages, godowns, shops, etc. as they are quite strong and offer proper safety to the property. The door shutter

    Rolling Shutter Center Motors are used in Rolling Shutters up to 4m x 4m. It can be Operated by remote control and ordinary switch. During Power failure, it allows operating the rolling by hand.

    Fitted at the center of spring system suitable for up to 180 kgs Rolling Shutter Manual Operation on power fail clutch key for locking ( optional ) 100% safety due to spring system remote control ( optional )

    Application

    Rolling Shutter Center Motors used in Residence, Apartments, warehouses, Hotel, Banks,….etc upto (to 180kgs )

    Features

    • Motor is Not visible.
    • use a safety spring.
    • Manual Operation all-time Thermal Protection.
    • Built-in Speed Reducer
    • Limit switch
    • Digital Lock Remote Control
    • Electro Magnetic Lock ( optional )

    Rolling Shutter Center Motors

    Specification:

    ITEM DESCRIPTION
    Brand NameMR TECH
    Model NumberMR TRS-180
    TypeAutomatic Door Operator
    NameDoor Operator
    UsageGarage Shutter Door
    MaterialAluminum alloy
    Voltage110/220V
    Torque180N.m
    R.P.M10
    Limit Switch6m
    Power590w
    Consumption2.56A
    Motor Weight10KG
    Tube Rolling60mm
    Pulley200mm/220mm
    Max. Shutter Weights180KGS
    MOQ3 Set
    ApplicationVilla, Residentials, Commercials



    Rolling Shutter Center Motors

    Motorized Roller Shutters:

    A very popular choice, Rolling Shutter is controlled by a Rolling Shutter Center Motors that opens and closes with the push of a button. These shutters can be operated by remote control or with a wall-mounted control panel.

    • Easy to open and shut.
    • Ideal for homeowners who find manual shutters hard to open and close.
    • Durable, Offering secure protection from the elements and would-be intruders.
    • can be programmed to open & close at particular times of the day.
    • can be controlled remotely.

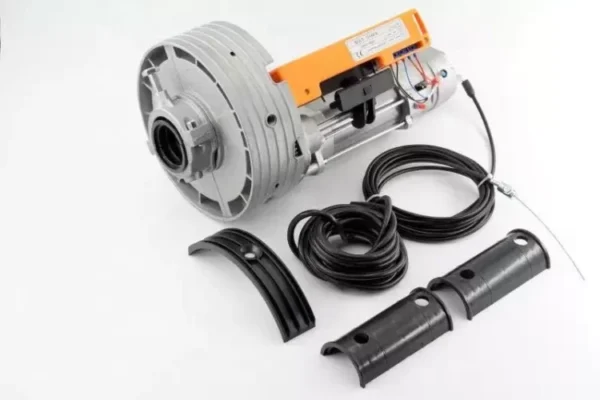

    Accessories Included With MOTORControl Board With Remote, Manual Release Break System, Flexible Cable, Electro Brake, Limit Switch, Brake Lining.
    Optional AccessoriesBluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Fingerprint, Vehicle LOOP Detectors, and Face Recognition.

    Rolling Shutter Center Motors

    Technical Parameters

    Torque

    (Nm)

    R.P.M



    Limit Switch

    (m)

    Running Time

    (min)

    Power Absorbed

    (w)

    Consumption

    (A)

    Lifting

    (KGS)

    Shutter Shaft Diameter (insert)

    (mm)

    Flange/Drum Diameter

    (mm)

    12010643961.7212060mm(48mm) 200mm/200mm
    14010644501.9514060mm(48mm) 200mm/200mm
    16010645102.2116060mm(48mm) 200mm/200mm
    18010645902.5618060mm(48mm) 200mm/200mm
    20010646202.6820060mm(48mm) 200mm/200mm
    24010647253.1524060mm(48mm) 200mm/200mm
    26010648003.4826060mm(48mm) 200mm/200mm
    36010648803.6436060mm(48mm) 200mm/200mm
    4209.5649703.9542076mm(60mm) 240mm/260mm

    Automatic Rolling Shutter Motor:

    Rolling Shutter Center Motors owing to the presence of our expert team members, we have been able to offer a wide range of Rolling Shutter Center Motors. These are available with us in various technical specifications and range as per the precise demands and requirements of clients. Our finely designed devices are available in various ranges and models

    Rolling Shutter Center Motors

    Advantages of Roller Shutter Center Motors:

    1. Secure: Roller Shutter doors are made of strong metals like steel and aluminum. This makes roller shutters robust and durable, which is the perfect deterrent against thieves.
    2. Fire Protection: Rolling Shutter Center Motors can help slow the spread of fires. What’s more, some roller shutters come with a fire-protecting rating, which means the shutter is built to withstand a fire for a certain amount of time
    3. Easy to operate: Most Roller shutter doors operate electrically, making them easy to open and close. It’s as simple as the push of a button.
    4. Rust and scratch protection: Roller Shutters often have special coatings to prevent rust and scratches. And if you find any rust or damage, then you can just re-paint the shutters to continue using them for a long time.
    5. Insulation: offer insulation benefits. Not only do they block out noise to an extent, but they can also help to keep your property warm in the winter and cool in the summer. This can help cut your electricity and gas bills too
    6. Customizable: We know your company’s brand is important. That’s why you can choose from a wide range of colors with our in-house powder coating service. What’s more, Powder coating makes our shutters stronger, more durable and more durable and more resistant to scratches, chipping, and corrosion.

    Rolling Shutter Center Motors
