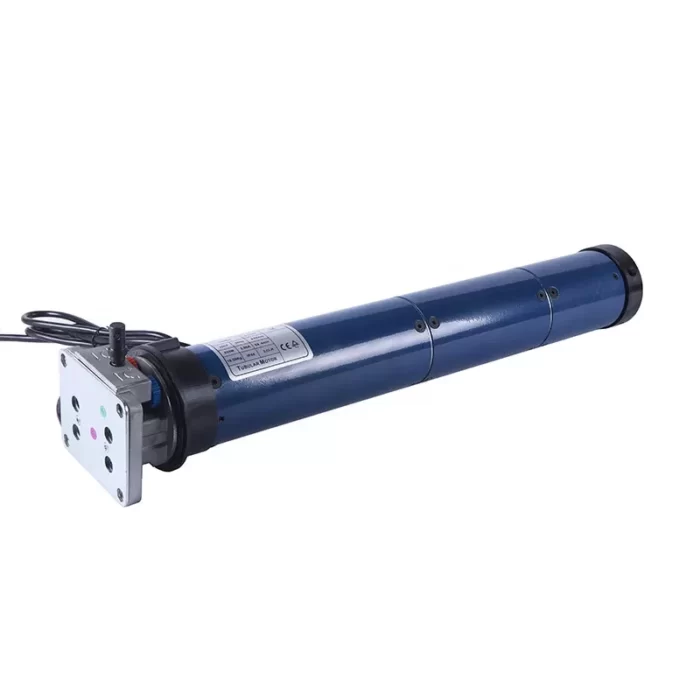

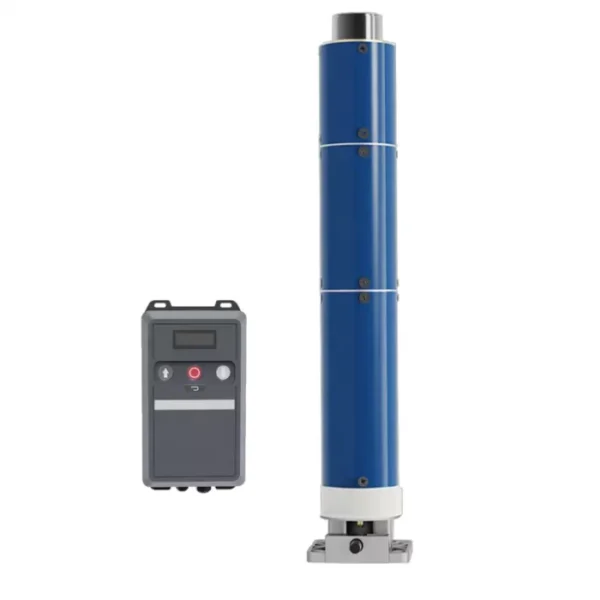

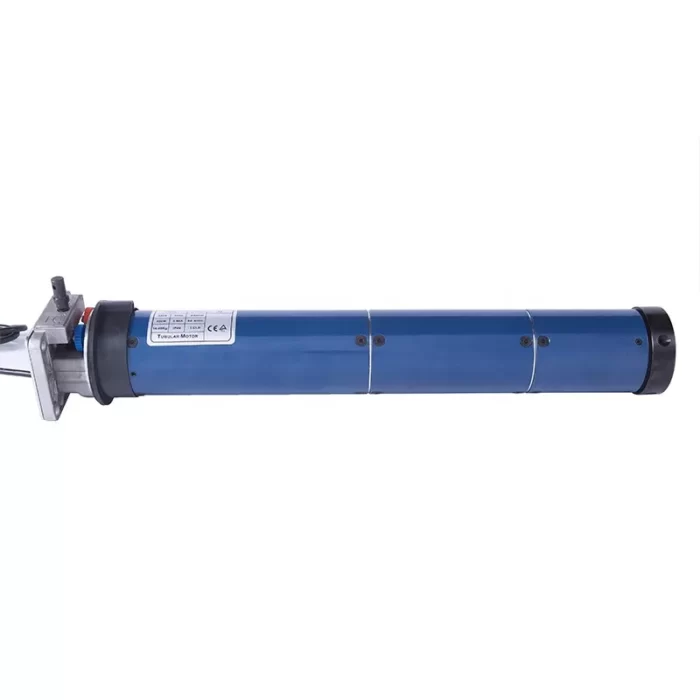

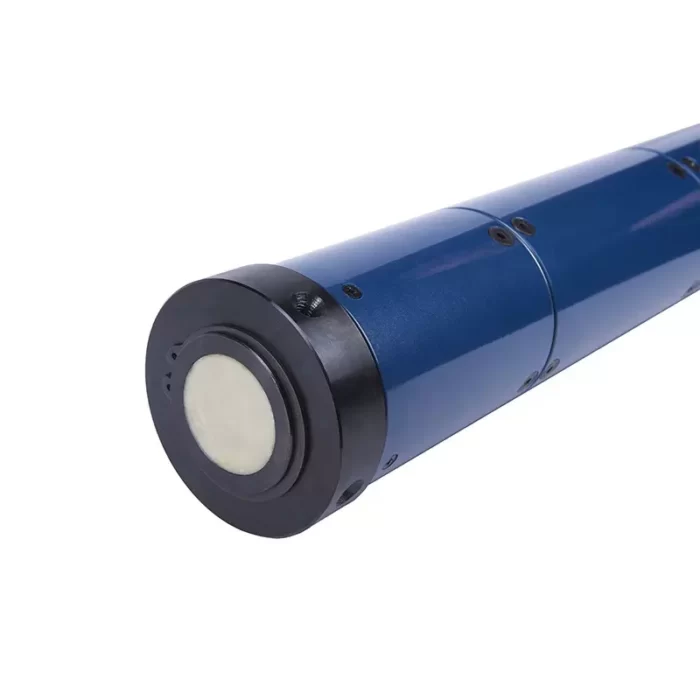

Roller Shutter Tubular Motor MR-RSTM92


The Roller Shutter Tubular Motor MR-RSTM92 is designed for heavy-duty roller shutter operation, providing reliability and convenience.

Roller Shutter Tubular Motor MR-RSTM92

Electric motors of 92mm series are designed for automation of roller shutters with leaf weighing up to 300kg and a shaft with diameter of 102mm. The Drive has a built-in reducer of emergency opening that allows you to control roller shutters in the absence of power in the network

Roller Shutter Tubular Motor MR-RSTM92 Installation Diagram

Roller Shutter Tubular Motor designed for blinds, roller shutters, rolling doors and curtains, allows the application of several accessories to operate with all types of tubes. It is available in various diameters (35, 45, 59, and 92), with or without a built-in control board, and with or without a manual crank.

Roller Shutter Tubular Motor MR-RSTM92 Installation Diagram

Benefits of Roller Shutter Tubular Motor

  1. Standard Type, Traditional Type
  2. Lower Noises
  3. used for awnings, roller blinds, roller shutters, rolling doors, etc.
  4. Mechanical limit switches, Adjustable limit switch
  5. convenient installation and operation
  6. Special design for solving power failure and overheating protection
  7. Stable quality with an attractive price



Roller Shutter Tubular Motor MR-RSTM92 Installation Diagram

Specification:

ITEM DESCRIPTION
Brand NameMRTECH
Model NumberMR-RSTM92
TypeAutomatic Door Operator
NameRoller Shutter Tubular Motor
UsageGarage, Blinds, Shutter, Door, Window
MaterialAluminum alloy
Voltage230V
Input Power580W∼980W
Rated Current2.60A
Output Torque140Nm ∼ 330Nm
Output Speed12(r/min)
Max. Lifting 70kg
Motor Weight16KG
Standard Tube  4″inch
MOQ3 Set
ApplicationResidential, Commercials, Industrials

The new super quiet motion drive for roller shutters in the wired version with two selectable running modes: standard running or whispering mode. Gentle operation is ensured by the protection of the blind, intelligent force measurement, and soft brake

Roller Shutter Tubular Motor MR-RSTM92 Installation Diagram

Accessories Included with Tubular MotorShaft Adapter, Cheek plate, U cup or Bearing, Limit Switches, Control Unit.
Optional AccessoriesBluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Fingerprint, Vehicle LOOP Detectors, Face Recognition, Lock Box with Key.

Details of Roller Shutter Tubular Motor:

  • Operation voltage range from 180 to 240v allows using tubular motors in the networks with unstable voltage.
  • Motors of the electric drive are equipped with an electric brake which provides an accuracy of stopping in the end positions and performs the functions of the lock.
  • Electric motors of 92mm series are designed for the automation of roller shutters with leaves weighing up to 300kg and a shaft with a diameter of 102mm. The Drive has a built-in reducer of emergency opening that allows you to control roller shutters in the absence of power in the network
  • Limit Switches have highly accurate and reliable performance due to its metal gears and axes resistant to wear.
  • A 3-stage planetary reducer, gears of which are made of high-strength steel is located inside the case. Their durability ensures long service life.

Technical Parameters of Roller Shutter Tubular Motor:

ModelRated Torque
(N.m)
Rate Voltage
(V)
Rated Frequency
(Hz)
Rated Power Input
(W)
Tube Diameter
(mm)
Rated Current
(A)
Running Time
(min)
Rated Speed
(rpm)
Protection Index
(IP)
Insulation
MR-RSTM45823050158920.70S2 4min12/17Ip44class F
1023050162920.75S2 4min12/17Ip44class F
1523050170920.78S2 4min12/17Ip44class F
2023050178920.80S2 4min12/17Ip44class F
3023050235921.05S2 4min12Ip44class F
4023050276921.23S2 4min12Ip44class F
5023050282921.25S2 4min12Ip44class F



Roller Shutter Tubular Motor MR-RSTM92 Roller Shutter Tubular Motor MR-RSTM92

TECHNICAL DATA
AC 230V/50HZ
Type
Rated Torque
Rated Speed
Rated Current
Rated Power Input
Defree of Protection
Running Time
MAX Number of Turns
MR-RSTM92C-R230N
230
12
2.5
580
IP44
4
22
MR-RSTM92C-R300N
300
6
3
690
IP44
4
22
MR-RSTM92C-R350N
350
6
3.5
800
IP44
4
22
MR-RSTM92C-R400N
400
6
3.5
800
IP44
4
22
AC 120V/60HZ
Type
Rated Torque
Rated Speed
Rated Current
Rated Power Input
Defree of Protection
Running Time
MAX Number of Turns
MR-RSTM92C-R230N
230
12
5
575
IP44
4
22
MR-RSTM92C-R300N
300
6
6
685
IP44
4
22
MR-RSTM92C-R350N
350
6
7
795
IP44
4
22
MR-RSTM92C-R400N
400
6
7
795
IP44
4
22



Roller Shutter Tubular Motor MR-RSTM92 Installation Diagram







ITEM DESCRIPTION
Brand NameMRTECH
Model NumberMR-RSTM92
TypeAutomatic Door Operator
NameRoller Shutter Tubular Motor
UsageGarage, Blinds, Shutter, Door, Window
MaterialAluminum alloy
Voltage230V
Input Power580W∼980W
Rated Current2.60A
Output Torque140Nm ∼ 330Nm
Output Speed12(r/min)
Max. Lifting 70kg
Motor Weight16KG
Standard Tube  4″inch
MOQ3 Set
ApplicationResidentials, Commercials, Industrials
Accessories Included with Tubular MotorShaft Adapter, Cheek plate, U cup or Bearing, Limit Switches, Control Unit.
Optional AccessoriesBluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Fingerprint, Vehicle LOOP Detectors, Face Recognition, Lock Box with Key.
