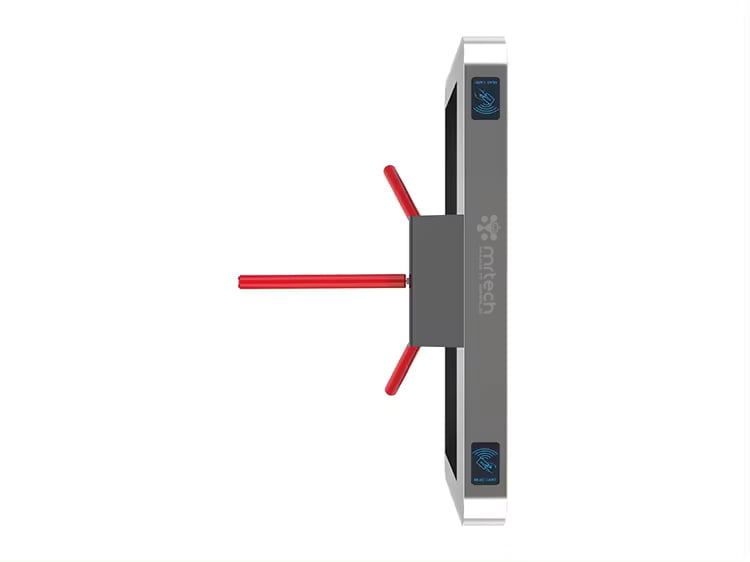

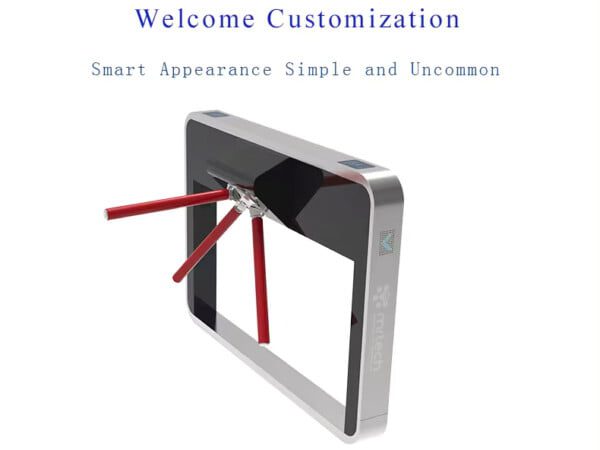

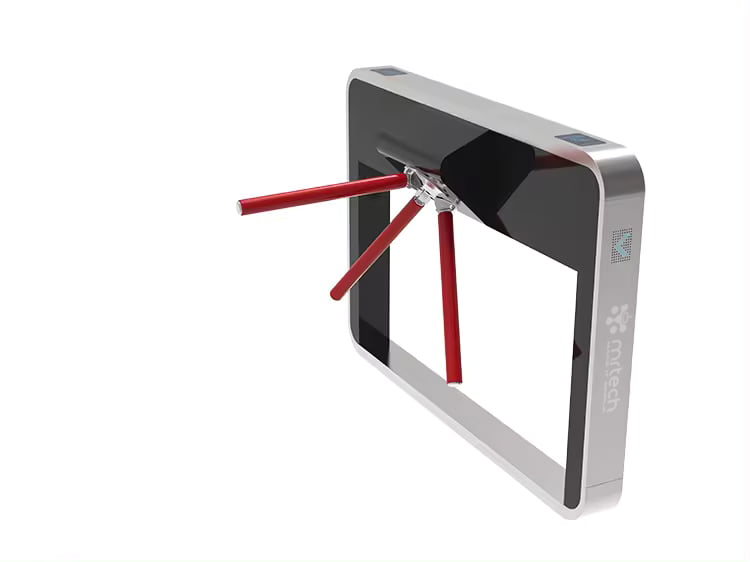

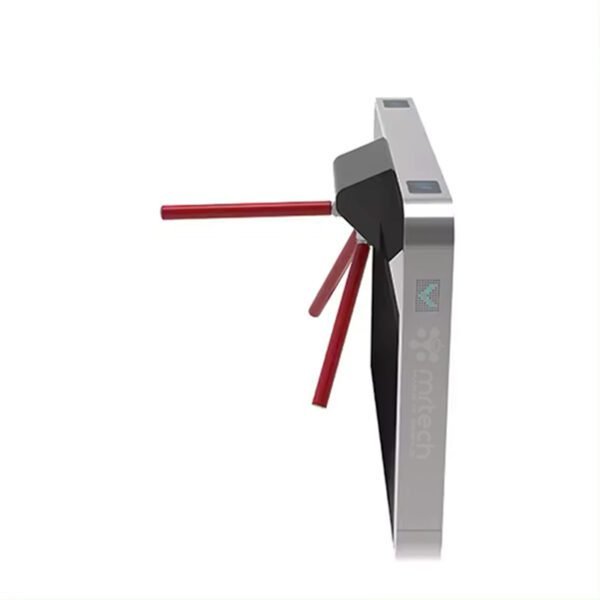

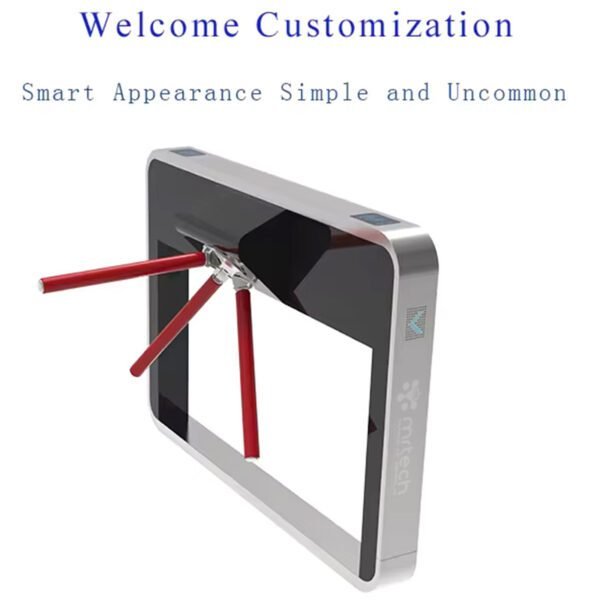

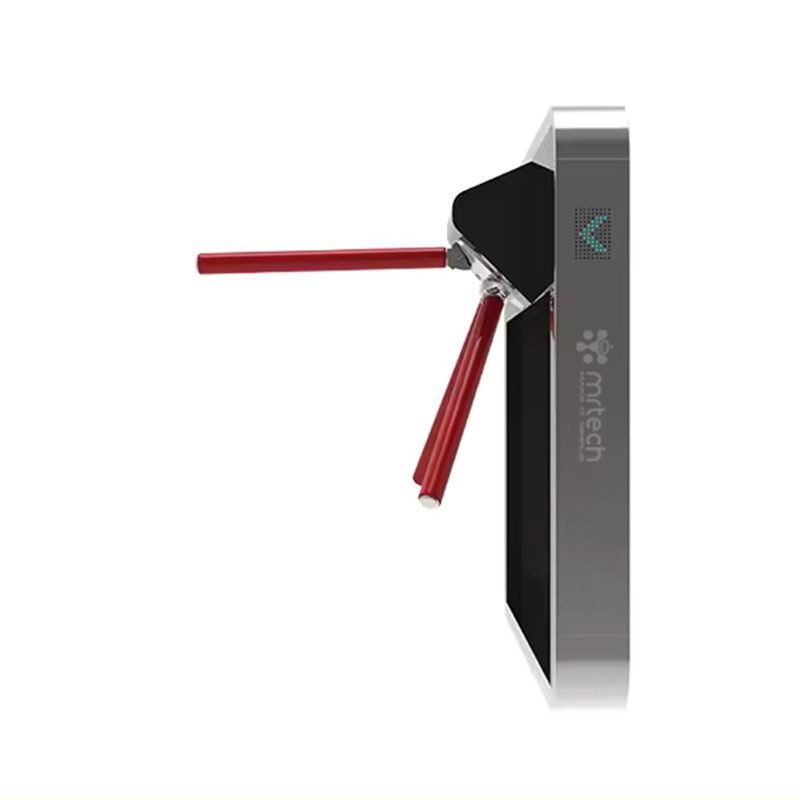

RFID Time Attendance Tripod Turnstile Gate Access Door
An RFID time attendance tripod turnstile gate is an automated pedestrian access solution. It manages entry while instantly logging employee attendance. When a user scans an RFID card, the system verifies authorization, unlocks the tripod arm, and records the exact time in the attendance software.
Attendance Tripod Turnstile is the automatic gates you will find on the stations, office entrances, airports, and also in many other places. It is a device for emergency control. This allows an automatic opening of its two wings while people connect with it with the access cards and closedown in a minute after that.
Core Benefits & Features
- Anti-Tailgating: The rotating three-arm mechanism restricts passage to one person per scan.
- Time & Attendance Integration: Seamlessly syncs with biometric software to track employee work hours, minimizing buddy-punching and unauthorized entry.
- Emergency Fail-Safe: The arm automatically drops during power outages to allow free, unobstructed exit for evacuations.
- Durability: Typically constructed from SUS304 brushed stainless steel to withstand high-traffic environments like offices, factories, and gyms.
Product Technical Parameters
| Model Number | MR TT322 |
| Product name | Tripod Turnstile |
| Application | Security Access Control Management |
| Material | 304 stainless steel |
| Power supply | AC 220V/110V 10% 50/60MHZ(optional) |
| Warranty | 1 year |
| Keyboard | Tripod Turnstile steel |
| Working environment | Temperature: -10~+60 |
| Size | 1000*280*1000mm |
| Type | full automatic or semi automatic |
| PASS SPEED | 30-40 Persons/min |
| Drive voltage | DC24V |
| Lane width | <_610mm |
| Net weight | 50kg |
| MCBF | >5.000.000times |
| Access speed | 40 people/min |
| Open Close speed | 0.2sec |
| Rotating Directional | Single and Double adjustable |
| Signal | Dry contract |
| Working environment | Indoor outdoor |
| Temperature | -25 C –70 C |
| Relative humidity | <90% no condensation |
Mechanical Parameters:
| 1. Iron Material ; 304 Stainless steel |
| 2. Material thickness: 1.5-2.0mm thickness. |
| 3. painting finished surface; |
| 4.Infrared anti-pinch protection; |
| 5.Illega; traffic alarm, trailing alarm; |
| 6.Swipe the card to open the gate and alarm for reverse pass direction; |
| 8.6 pair of infrared sensor; |
| 9.Mechanical anti-pinch, infrared anti-inch and brushless current anti-pinch; |
| 10.The motherboard comes with a test button, which is convenient for testing and maintenance |
| 11.Buit-in sheet metal paint electric control box to effectively protect the motherboard |
| 12.Independent invention patented gate main board |
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
