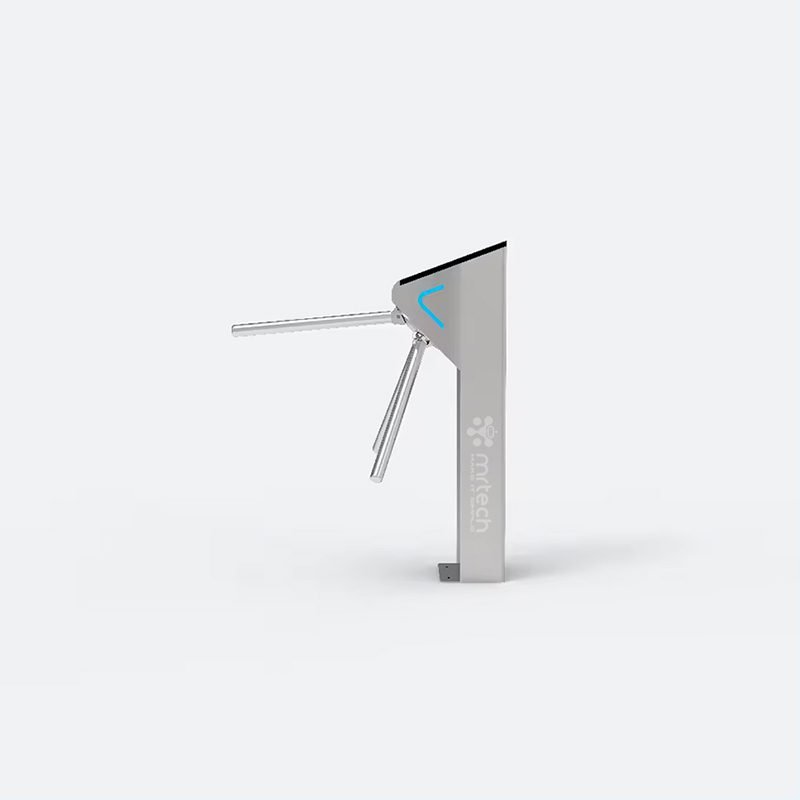

Tourniquet Access Control Automatic Tripod Turnstile Gate
An automatic tripod turnstile gate is a waist-high, three-arm pedestrian barrier that regulates entry by permitting exactly one authorized person per valid credential. Designed to prevent tailgating, it is ideal for securing factories, corporate offices, and transit hubs.
Automatic Tripod Turnstile Tourniquet Access Controller a type of turnstile that are commonly used to control access to a building or area. They are designed to allow one person to pas through at a time, and are often used in conjunction with other security measures such as security cameras or card readers.
Features and Mechanics
- Bi-Directional Access: Allows for controlled entry and exit, supporting one-way or two-way traffic flow based on site configuration.
- Seamless Integration: Built-in dry contact interfaces allow easy pairing with RFID readers, biometric/fingerprint scanners, and facial recognition devices.
- Emergency Auto-Drop: Designed with a fail-safe mechanism where the horizontal arm automatically drops down during power outages or emergencies to ensure immediate, free evacuation.
- Material & Durability: Typically constructed from heavy-duty 304 or 316-grade stainless steel, ensuring rust resistance and longevity even in high-traffic indoor or semi-outdoor environments.
Product Technical Parameters
| Model Number | MR TT386 |
| Product name | Automatic Tripod Turnstile |
| Application | Security Access Control Management |
| Material | 304 stainless steel |
| Power supply | AC 220V/110V 10% 50/60MHZ(optional) |
| Warranty | 1 year |
| Keyboard | Tripod Turnstile steel |
| Working environment | Temperature: -10~+60 |
| Size | 1000*280*1000mm |
| Type | full automatic or semi automatic |
| PASS SPEED | 30-40 Persons/min |
| Drive voltage | DC24V |
| Lane width | <_610mm |
| Net weight | 50kg |
| MCBF | >5.000.000times |
| Access speed | 40 people/min |
| Open Close speed | 0.2sec |
| Rotating Directional | Single and Double adjustable |
| Signal | Dry contract |
| Working environment | Indoor outdoor |
| Temperature | -25 C –70 C |
| Relative humidity | <90% no condensation |
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
FAQ
Can this swing barrier gate wiyh anti-tailaing alarm?
yes, Anti-alarm is our standard request.
What is the using lif of this speed gate?
More than 5,000,000 times.
Can I using our own access system to control the swing barrier gate?
Yes, the swing turnstile gate can receive the signal from your access control system and running.
Can you offeraccess control system?
Yes, we have our access control system like rfid cards, QR codes, Barcode. Ticket selling systems, face recognition. ect.
Can you make my own brand?
Yes, we have 12 ODM Experience since 2009. we can make our private design and logo.
What is the warranty policy?
During 12 months warranty period. any parts running wrong or problems, we will send the free to replace.
