Infrared Reflective Photocell Gate and Door MR-IPC504


Infrared Reflective Photoelectric Beam Sensor Sliding Door IPX4 AC/DC 12-24V outdoor automatic door Sensor

Wireless Infrared Reflective Photocell Gate and Door MR-IPC504

Photocell sensor for automatic door and gate

  1. Indoor 20m, Outdoor 10m
  2. 12-24 VDC/AC
  3. Waterproof
  4. Anti-sunlight

Infrared Reflective Photocell Gate and Door MR-IPC504

Infrared Frequency 1.92khz
Power Supply 12 to 24V DC/AC
Wavelength 940nm
Input r*15ma – t*30ma
Operating Temperature -20º ∼ 50º
Relay Output 1 a max *36 V
RangeThe range can be reduced to 30% in bad weather conditions: for rain, dust, etc

Features:

  1. Single beam sensor/single beam detector is used for automatic slide doors, coil doors, garage door windows, etc.

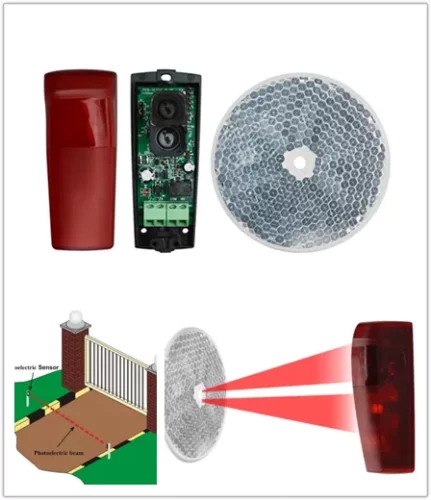

  2. Consists of a transmitter and a receiver, and the integrated amplifier can produce an infrared beam. A narrow infrared beam (I or II) can avoid interruption by external light.
  3. Even if installed at a low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-15meters).

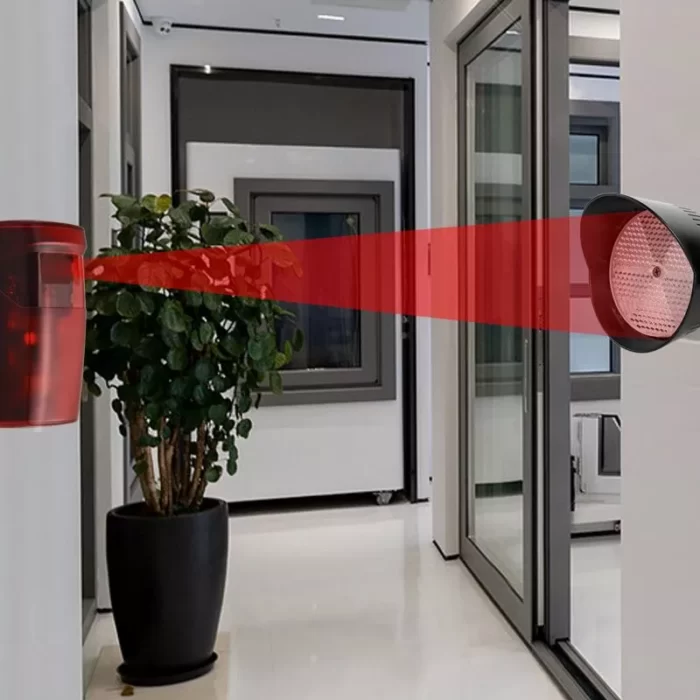

  4. The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.

Wireless Infrared Reflective Photoelectric Gate and Door 1 e1671075562188

Wireless Infrared Reflective Photoelectric Gate and Door 1 e1671075546736

Wireless Infrared Reflective Photoelectric Gate and Door

Wireless Infrared Reflective Photoelectric Gate and Door



Photocell sensor for automatic door and gate

  1. Indoor 20m, Outdoor 10m
  2. 12-24 VDC/AC
  3. Waterproof
  4. Anti-sunlight
Infrared Frequency 1.92khz
Power Supply 12 to 24V DC/AC
Wavelength 940nm
Input r*15ma – t*30ma
Operating Temperature -20º ∼ 50º
Relay Output 1 a max *36 V
RangeRange can be reduced to 30% in bad weather conditions: for rain, dust, etc

Features:

  1. Single beam sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc.
  2. Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam. Narrow infrared beam (I or II) can avoid interruption by external light.
  3. Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-15meters).
  4. The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.
