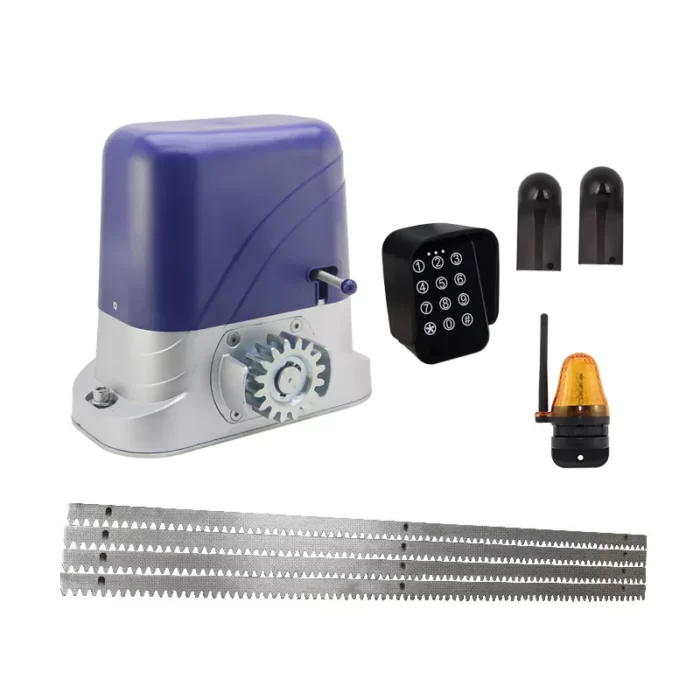

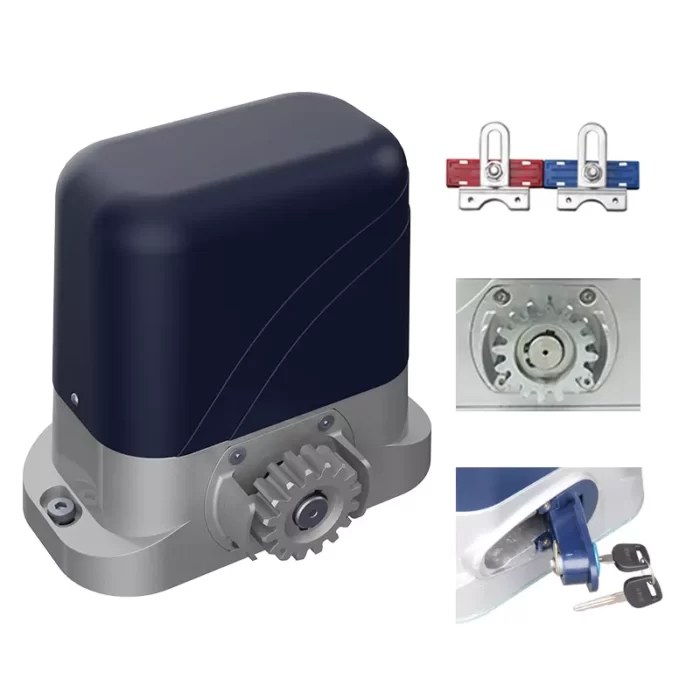

Electric Sliding Gate Motor MR-SLGM800
The DC-powered Electric Sliding Gate Motor is designed to operate sliding gates up to 800 kg in weight. It is an all-in-one motor and control panel, making it simple to install and extremely compact and neat.
Electric Sliding Gate Motor Specification:
| ITEMÂ | Â DESCRIPTION |
| Brand Name | Â MRTECH |
| Model Number | MR-SLGM800 |
| Type | Â Automatic Gate Operator |
| Name | Â Sliding Gate Motor |
| Material | Â Aluminum & Plastic |
| Power Supply | Â 220v AC / 110v AC |
| Rated Motor power | Â 350 W |
| Max. Loading | Â 800 KG |
| Output Speed | Â 50 r/min |
| Open/close Speed | 12 m/min |
| Limit Switch Type | Â Magnetic / Spring |
| Output Torque | Â 30 N.m |
| Max. pull force | 1100N |
| MOQ | 3 Set |
| Application | Residential, Apartments, Commercials, Industrials, etc. |
| Accessories Included With Motor | Control Panel with Box, Base Mount Plate, Remote With Receiver, Safety Sensor, Pinion, and Fitting Accessories. |
| Optional Accessories | Photo Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port. |

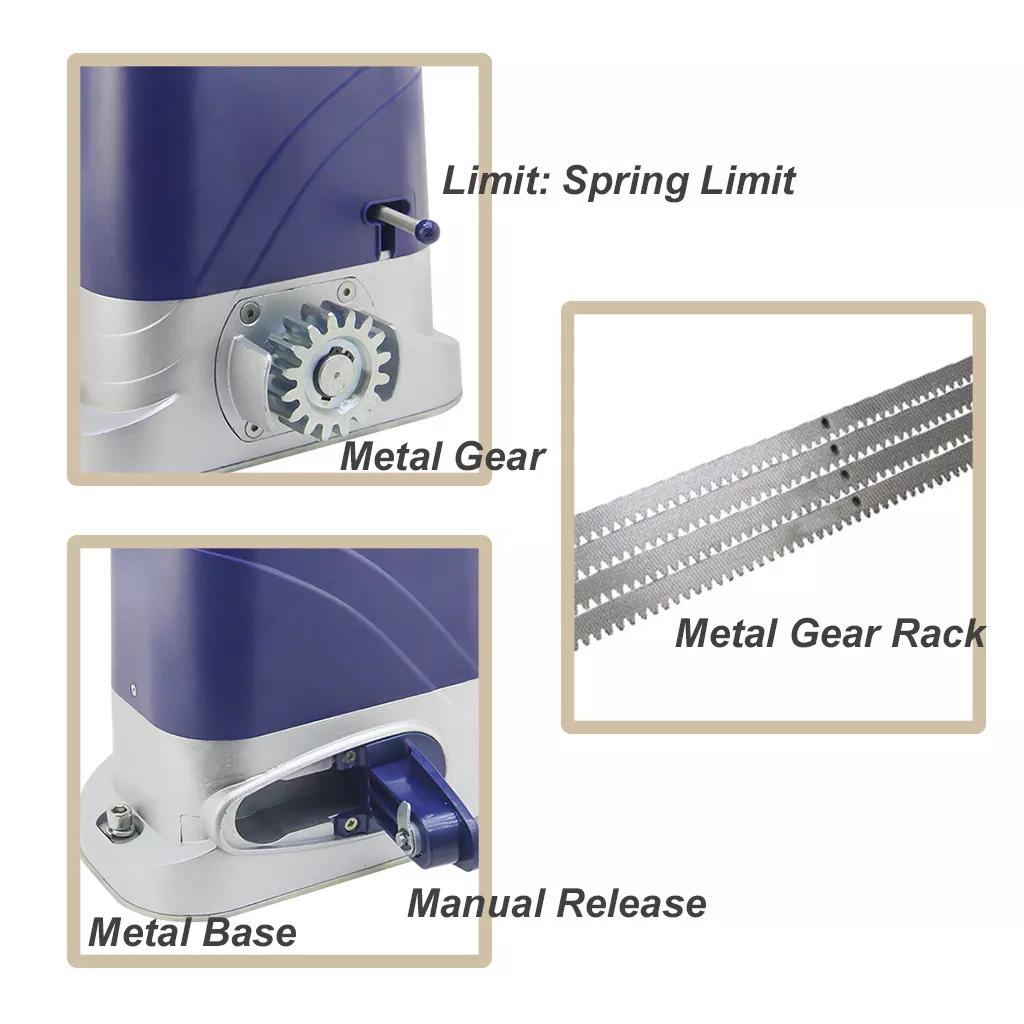

Features of Electric Sliding Gate Motor :
- Totally integrated electrical mechanical system (excludes racks).
- Control board interface for optional impact-proof infrared photocells.
- Can connect flashing lights and keypads and electric locks and so on.
- Automatic delayed closing.
- Adjustable resistance sensitivity.
- The auto gate stops and re-opens when an obstacle is encountered.
- Wireless remote control or wired remote control is optional.
- 24VDC Electric Sliding Gate Motor can connect the transformer and backup battery.
Technical Specification
Technical Specification| Rated Voltage | 220v±10% / 110v±10% 50Hz / 60Hz |
220v±10% / 110v±10% 50Hz / 60Hz |
220v±10% / 110v±10% 50Hz / 60Hz |
220v±10% / 110v±10% 50Hz / 60Hz |
| Max Loading Weight | 500kg | 600kg | 800kg | 1300 |
| Gear Modulus | M=4 | M=4 | M=4 | M=4 |
| Open/Close speed | 15m / min | 12m / min | 12m / min | 12Â m / min |
| Electric Motor | 24v DC | 220v AC / 110v AC | 220v AC / 110v AC | 220v AC / 110v AC |
| Rated motor Power | 120W | 200W | 280W | 380W |
| Output Speed | 5or/min±10% | 5or/min±10% | 5or/min±10% | 5or/min±10% |
| Output Torque(N.m) | 16.8-32 N.m | 16.8-32 N.m | 16.8-32 N.m | 16.8-32 N.m |
| Limit switch | Spring / Magnetic | Spring / Magnetic | Spring / Magnetic | Spring / Magnetic |
| Working Temperature | -20ºC ∼ +55ºC | -20ºC ∼ +55ºC | -20ºC ∼ +55ºC | -20ºC ∼ +55ºC |

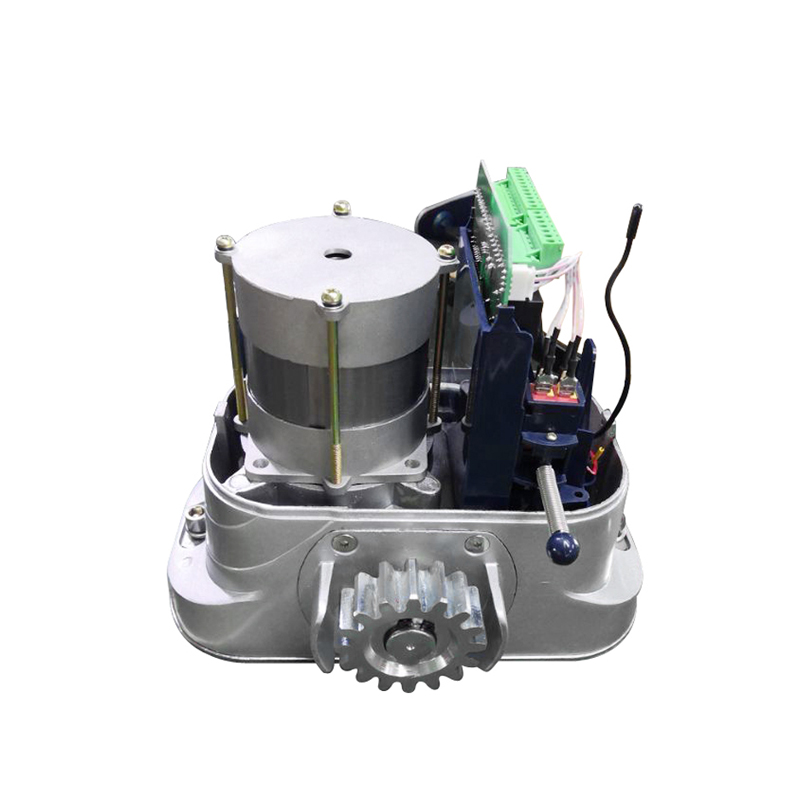

Inner picture
Control board
| Model | Â MR-SLGM800 |
| Voltage | Â 220v / 110v |
| Modulation | Â ASK |
| Frequency | Â 433.92Mhz |
| Board Memory | Â 50 pcs remote control |
| Output Voltage | AC 24V |
Function of Automatic Electric Sliding Gate Motor:
- Single button control circularly /three buttons control can be chosen
- Alarm lamp interface
- Automatic closing time adjustable
- Pedestrian mode
- Condominium mode
- Limit switch NC/NO optional
- Photocell NC/NO optional
- Switch the power on/off button on the board
- Open and close motor sensitivity setting separately
- Terminal for open only, close only for the external control device.
- Adjustable resistance sensitivity
- The gate will auto-stop and re-open when an obstacle is encountered
