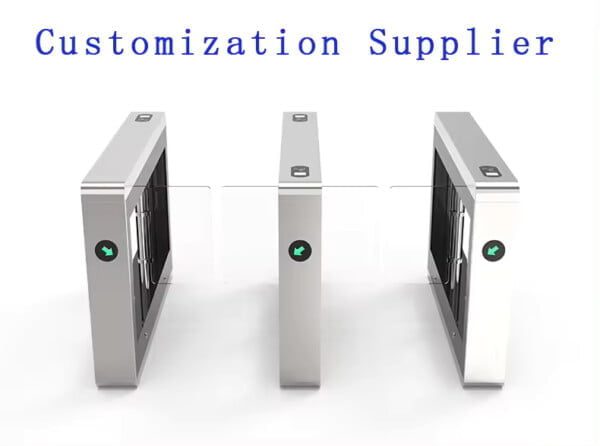

304 High Quality Metal and Brushless Motor Speed Turnstile Gate

304 high quality metal and brushless motor Speed Turnstile gate QR code RFID reader swing barrier

Quantity Price Discount
1-5  105,222.00 PIECE 0%
6-15  101,013.12 PIECE 4%
16-50  95,752.02 PIECE 9%
51+  105,222.00 PIECE  0.00
3 Items sold in last 2 hours

 95,752.02 217,854.00PIECE

sAAAAASUVORK5CYII= Couple
uiIvp8rjh5wAAAABJRU5ErkJggg== Double
Single
20wcWAMA37P6tkanUq6AAAAAASUVORK5CYII= Brushless
ngO2PF9cRH4AAAAASUVORK5CYII= Servo

SEND US A MESSAGE

    CONTACT INFORMATION

    wd pointer

    Plot No 2, 4th St, Kailash Nagar, Tiruchirappalli,

    Tamil Nadu, India.

    Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.

    product delivery 1 Add  31,850.00 and we will send you the order for free shipping!
    Ordered:1
    Items available:2
    product delivery 1

    Fast Shipping

    product meny products 1

    20k products

    product support 1

    24/7 Support

    product quality 1

    Delivery

    8800 People watching this product now!

    Payment Methods:

    2Q==

    Description

    304 High Quality Metal and Brushless Motor Speed Turnstile Gate

    Brushless Motor Speed Turnstile Gate are also available in a variety of styles, from basic models to more advanced ones that include features such as automatic closing and locking. Additionally, many Speed Turnstile Gate barriers can be customized to match the aesthetic of the building in which they are installed.

    304 High Quality Metal and Brushless Motor Speed Turnstile Gate

    Functions and features:

    1. Designed reasonable and reliable movement, noise, smooth running, and long service life.
    2. Access prompt function: Red and green light prompt the passing information.
    3. The programmable gates control state, with a variety of operating modes you can chose, you can set a one-way or two-way control.
    4. Installation with personalized interfac, compactible with IC,ID cards and other smart cards.
    5. standard input and output interface
    6. Scour protecton function, when the gate signal is not received, the stick is automatically locked
    7. Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board
    8. Self-test failure alarm function, user-friendly maintenance and use.
    9. With the [power drop-shot function. In case of power off, the railing falls, and in case of power on, the railing automatically rise.
    10. Counting function: record the passing times, LED digital display function(optional)
    11. Waterproof, sunscreen, cold and high temperature.

    304 High Quality Metal and Brushless Motor Speed Turnstile Gate

    Product Technical Parameters

    Model NumberMR SPT299S
    size1400*120*980mm
    MaterialSS304 grade stainless steel
    Thickness of materialbody cabinet 1.0mm, top of cover 1.2mm
    Arm materialAcrylic/Glass 10mm thickness
    Channel width ≤1000mm
    open gate signal inputDry contact signals, 232 or 485 commands.
    Unlocking time0.2s
    Speed of passage≤35p/Min
    Voltage input220V, 50H; (support adjustable)
    environmental temperature-25°C~+70°C
    working environmentIndoor/outdoor (under shade)
    MCBF≥5 million
    weightsingle core movement: 50KG / double core movement: 70KG
    configuarationone channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared
    Driving MotorDC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w
    AlarmIllegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current:
    Special Functions1. support normally open, normally closed, power failure door opening, fire linkage.

    2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode.

    3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback;

    Advantages
    1. The equipment has fault active feedback function, for gate failure, can actively upload fault code, realize the early warning, convenient maintenance
    2. Through the management computer to realize remote control door single pass open door, normally open, normally closed, fire control, return to normal and so on.
    Secondary development1. Turnstile Gate latest price tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment;

    2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking  gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ)

    patentpatented design products patented movement utility model products

    304 High Quality Metal and Brushless Motor Speed Turnstile Gate

    304 High Quality Metal and Brushless Motor Speed Turnstile Gate

    Optional Access Control Solutions:

    The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.

    Occasion Application:

    suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University,  institutions, clubs, and other high-end places related to entrance access control solutions.
