Automatic Swing Gate Opener MR-SWGM350
| Notice | If you want to place an order, don’t hesitate to get in touch with the seller, we will calculate the cheapest freight for you! |
- DC24V low voltage motor that is safe and compatible with a backup battery.
- Metal pinion gear driving design with low working noise.
- Manual release with the secure customized key in case of power failure.
- Soft start and slow stop function.
- Adjust the opening/closing interval time of double gate leaves.
- Auto-stop if any obstacles are detected during operation.
- Automatic Swing Gate Opener, Built-in max motor running time adjustable for multiple safety protection.
- Separately adjust the force of double gate leaves.
- Single leaf or double leaves operation.
- Easy installation and low maintenance.
- 12 months guarantee, lifelong post-sales service
Specification:
| ITEMÂ | Â DESCRIPTION |
| Brand Name | Â MR. TECH |
| Model Number | MR-SWGM350 |
| Type | Â Automatic Gate Operator |
| Name | Â Automatic Swing Gate motor |
| Material | Â Aluminum & Plastic |
| Power Supply | Â 220v / 110v |
| Max. Operating Current | Â 5A for a maximum of 10 seconds |
| Max. Gate weight | Â 350kg per leaf |
| Max gate length | Â 3.5 meters |
| Operating Temperature |  -20ºc ∼ +50ºc |
| Duty Cycle | Â 20% |
| Motor Weight | Â 7.0kg |
| MOQ | Â 3 Set |
| Application | Â Residentials, Apartments |
| Accessories Included With Automatic Swing Gate Opener | The control board has a box, remote control, voltage transformer, rubber bush, manual key, and wall mount kit. |
| Optional Accessories | Photo Sensor, Flashing Light, Bluetooth Controller, Wi-Fi mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port. |
Control Board of Automatic Swing Gate Opener
The MR-22A is a smart control panel that an easy to connect, simple to set up, and has a feature-rich control box vast amount of
features as listed below.
features as listed below.
Â
Adjustable Overcurrent adjustments
Safety Sensor connection input
The swing automatic gate Courtesy Light Output Ultra-High Security Rolling Code remote system allows for the highest form of security for entry to your property, weatherproof with a seal
Safety Sensor connection input
The swing automatic gate Courtesy Light Output Ultra-High Security Rolling Code remote system allows for the highest form of security for entry to your property, weatherproof with a seal
Automatic Swing Gate Opener, Automatic Setup Feature to learn the Ramp and Slow Down points of the gates Automatic Feature Learning will learn all features of the remote with a simple pairing process
Adjustable Automatic Close time of up to 2 minutes this can be toggled by remote, keypad, or push button Second Motor Delay Time, the second gate motor can operate simultaneously with the first gate motor or be delayed by 3 to 5 seconds.
Adjustable Automatic Close time of up to 2 minutes this can be toggled by remote, keypad, or push button Second Motor Delay Time, the second gate motor can operate simultaneously with the first gate motor or be delayed by 3 to 5 seconds.
Specification

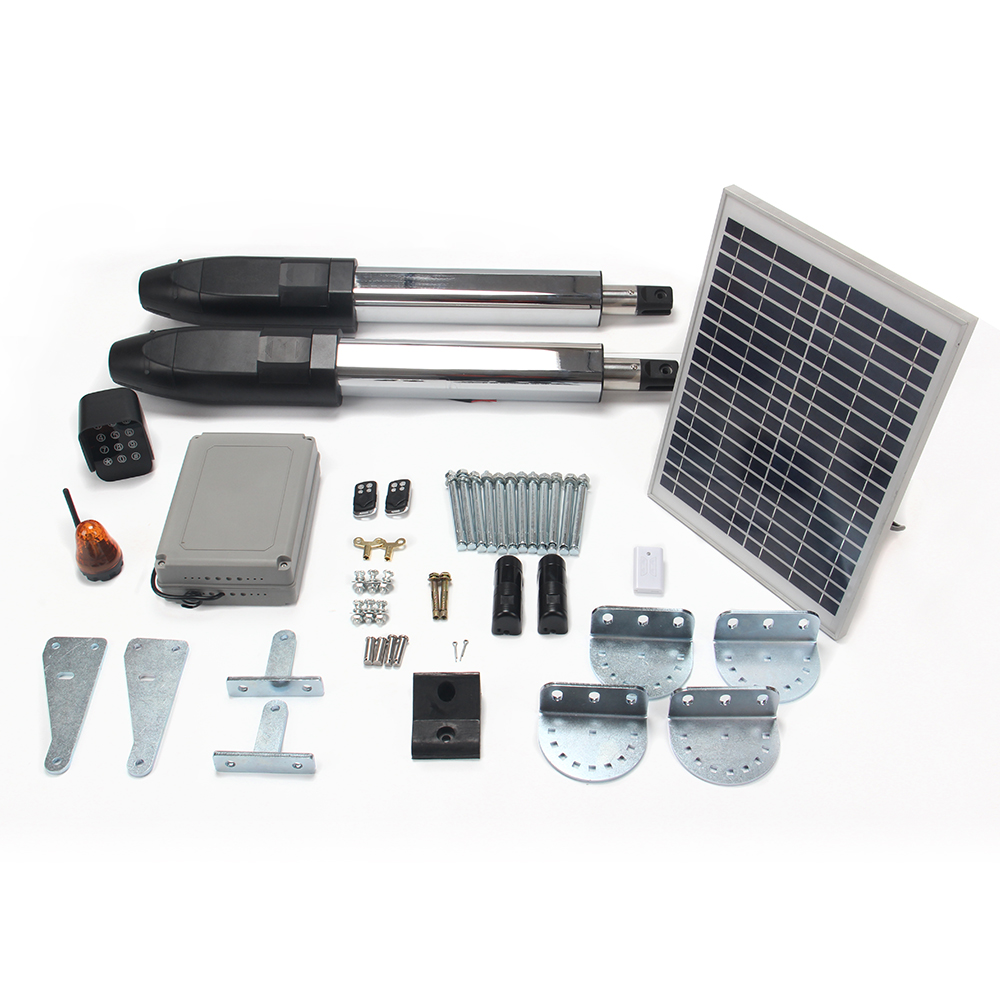

Solar Powered System Automatic Swing Gate Opener:
- 1pcs*Solar Panel
- 2pcs*battery 12v 9AH
- 1pcs*battery charger The backup battery system will allow the continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration.
MR TECH Photoelectric Safety Sensor Set HW-07
- 1 Pair in 2 pcs
If the gate with the infrared begins to close and the sensor path is interrupted, then the gate will stop and return to the open
position. And it will close again.
* Up to 15 Metres Infrared beam operating distance* Only powers on when the command is given to close the gates
position. And it will close again.
* Up to 15 Metres Infrared beam operating distance* Only powers on when the command is given to close the gates
Optional Electric Locks MR-02 for automatic Swing Gate Opener
- Whole, including 2 meters of wires
The gate lock is ideal for improving your gate’s safety. The DS-02 electric gate lock automatically locks and unlocks the gate when
the electric gate motor opener is activated. It is a perfect solution
to provide stability and additional protection from damaging forces, prevent breakages
from strong wind, and improve animal safety. An electric lock is strongly recommended when your gate is longer than 7 feet (1.5 meters).
the electric gate motor opener is activated. It is a perfect solution
to provide stability and additional protection from damaging forces, prevent breakages
from strong wind, and improve animal safety. An electric lock is strongly recommended when your gate is longer than 7 feet (1.5 meters).
