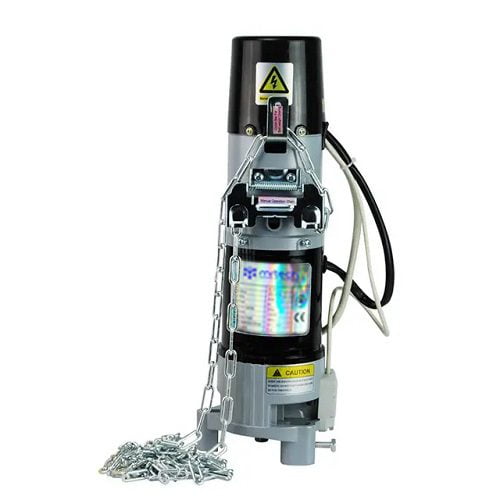

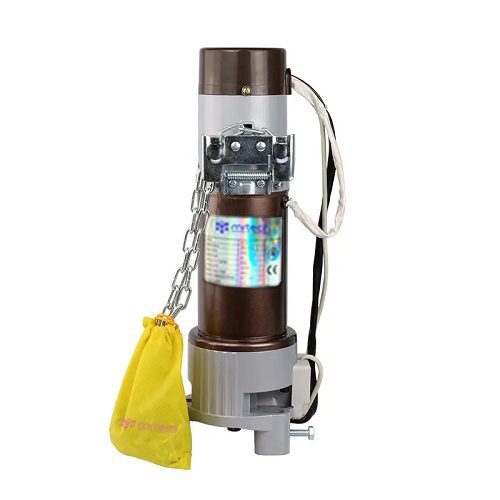

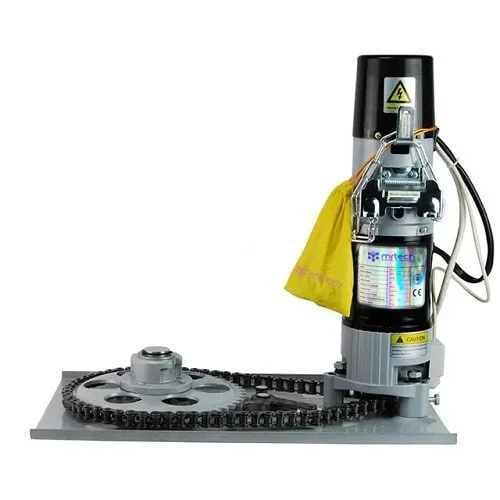

220V Mr Tech 300 kg Rolling Shutter Motor With Electronic Limit
| Notice | If you want to place an order, please contact the seller, and we will calculate the cheapest freight for you! |

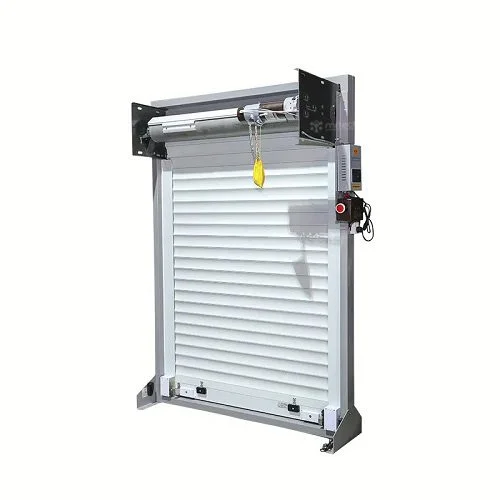

Rolling shutters are one of the most common types of doors where the large size of openings, safety, and protection against fire and theft is a concern.
Electronic Limit motor: Simply the operator through the controller or remote control button on the debug, and the door is open and closed to complete debugging.
Positioning accuracy: Absolute value positioning accuracy. precision– Absolute limit, no limit, no top.
Specification:
| Brand | MR.TECH |
| Model No | MR RSEAC300 |
| Product Name | 220V Mr Tech 300 kg Rolling Shutter Motor With Electronic Limit |
| Motor Type | Side Rolling Shutter Motor |
| Material | Aluminum Alloy |
| Rated Voltage | 220V / 110V |
| Certified | German |
| Rated Frequency | 50 Hz |
| Rated Power | 250 W |
| Rated Current | 1.9 A |
| Lifting Force | 300 Kg.f |
| Output Torque | 168 N.m |
| Rated Output Speed | 5.4 r/min |
| Max. Lifting Height | 6 m |
| Advantage | low noise |
| Continuous Working Time | 7 min |
| Limit Switch | Electronic Limit |
| MOQ | 3 Set |
| Usage | Garage Shutter Door |

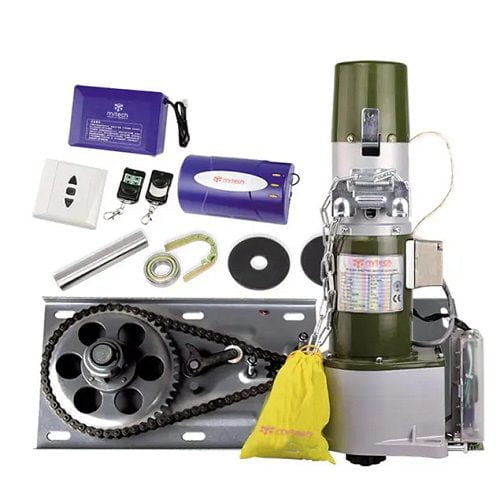

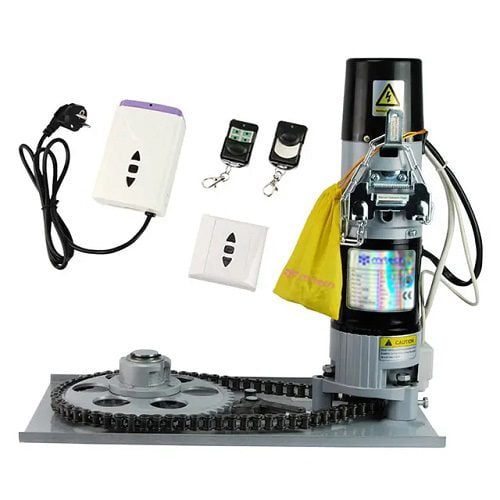

| Package Included | Motor, Radio frequency receiver, Remotes |
| Application | Industries, Stores, Warehouses, restaurants, etc |
| Optional Accessories | Bluetooth controller, Wi-Fi mobile access Controller, RFID with Detector, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Photocell sensor, Electrical Side lock and center Lock, Bluetooth USB Controller, Safety edge, and Safety Break system. |
Feature
- Left or right installation is ok.
- It can be easily operated by electricity and manual.
- The roller door motor has an elegant design, advanced structure, and strong power.
- It’s safe and stable when using the imported components.
- The motor has low noise, little vibration, and small power consumption.
- It’s lightweight, small, easy to install, durable, and reliable performance.
- Overheat protection: If the roller door motor temperature is over 110 degrees centigrade, it stops working automatically and works again if the temperature returns below 70 degrees centigrade.
Features of 220V Mr Tech 300 kg Rolling Shutter Motor With Electronic Limit:
- The limit USP lighting protection circuit advanced friction materials limits precisely.
- Operational safety low failure rate.
- Long service life.
