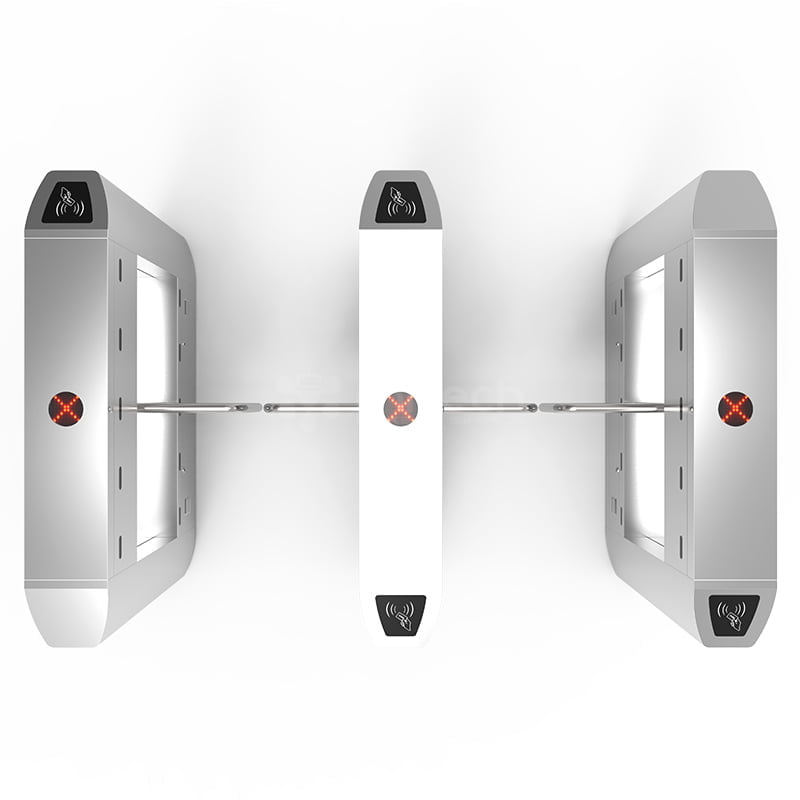

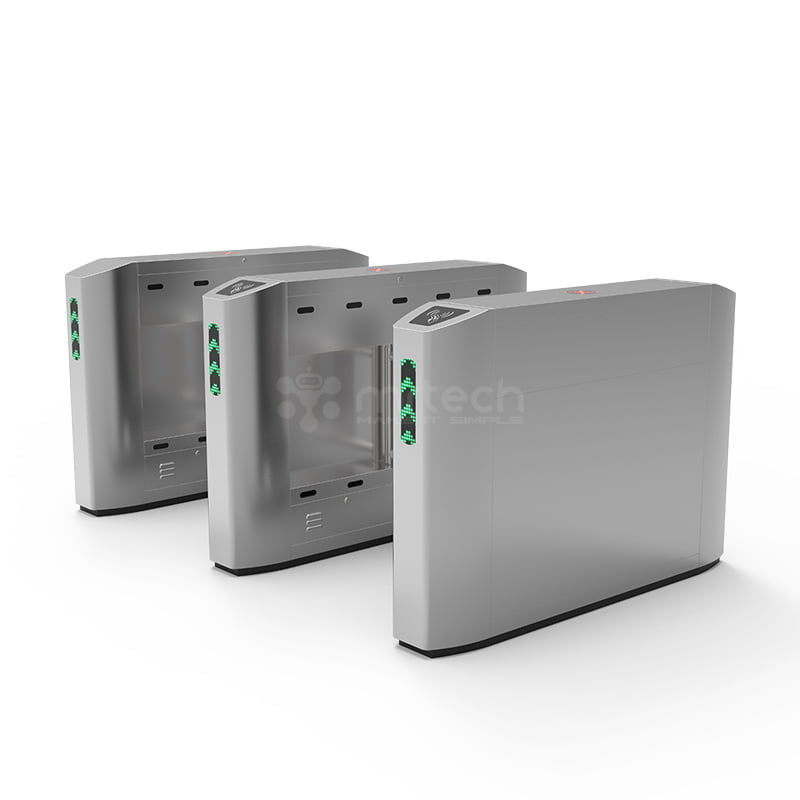

Community Entrance Wide Lane Speed Gate for Electric Bicycle and Wheelchair Pass Handicapped Swing Gate Turnstile
The Swing Gate turnstile is composed of a chassis and two movable door wings, which can be extended and retracted to dissuade or release. This new design full height Speed Gate turnstile MT237-p adopts the latest design and beautiful shape. The application selection of the sliding gate turnstile is determined according to the size and area of the site. Its door wing is higher than the swing turnstile gate and flap barrier turnstile. It is generally designed to be 1.6m high. The channel width is the same as that of the swing turnstile gate channel. The width of 0.55M is enough to achieve the purpose of one person’s passage.
Stainless Steel Swing Barrier Gate
1. Compact design, Efficient and secure access control system with reasonable price.
2. Auto reset function, If no passing during identified card-reading time, the system will reset automatically, passengers are prohibited to pass until card is swiped.
3. Both RFID card reader and QR code scanner could be integrated for better user experience.
4. with direction indicator, it can guide passenger the correct entry and exit direction.
5. Automatically locking to prevent passenger passing without the identified device.
6. It adopts DC Brushes motor to drive stably and has low failure rate.
7. Bi-directional passing or single way passing.
8. Infrared photocells for safety access.
9. Both acrylic and glass material door panel are available of arm material
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Product Technical Parameters
Model Number | MR B231 |
Product name | Community Entrance Wide Lane Speed Gate for Electric Bicycle and Wheelchair Pass Handicapped Swing Gate Turnstile |
Application | Security Access Control Management |
size | 1400*200*980mm |
Material | SS304 grade stainless steel |
Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
Arm material | Acrylic/Glass 10mm thickness |
Channel width | ≤1000mm |
open gate signal input | Dry contact signals, 232 or 485 commands. |
Unlocking time | 0.2s |
Speed of passage | ≤35p/Min |
Voltage input | AC 220V/110V 10% 50/60MHZ(optional) 220V, 50H; (support adjustable) |
Type | full automatic or semi automatic |
environmental temperature | -25°C~+70°C |
working environment | Indoor/outdoor (under shade) |
MCBF | ≥5 million |
weight | single core movement: 70KG / double core movement: 80KG |
configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
Special Functions | 1. support normally open, normally closed, power failure door opening, fire linkage. 2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback; |
Advantages |
|
Secondary development | 1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment; 2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ) |
patent | patented design products patented movement utility model products |
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
FAQ
Can this swing barrier gate wiyh anti-tailaing alarm?
yes, Anti-alarm is our standard request.
What is the using lif of this Electric Bicycle Swing Gate Turnstile?
More than 5,000,000 times.
Can I using our own access system to control the Stainless Steel Swing Barrier Gate?
Yes, the swing turnstile gate can receive the signal from your access control system and running.
Can you offeraccess control system?
Yes, we have our access control system like rfid cards, QR codes, Barcode. Ticket selling systems, face recognition. ect.
Can you make my own brand?
Yes, we have 12 ODM Experience since 2009. we can make our private design and logo.
What is the warranty policy?
During 12 months warranty period. any parts running wrong or problems, we will send the free to replace.
