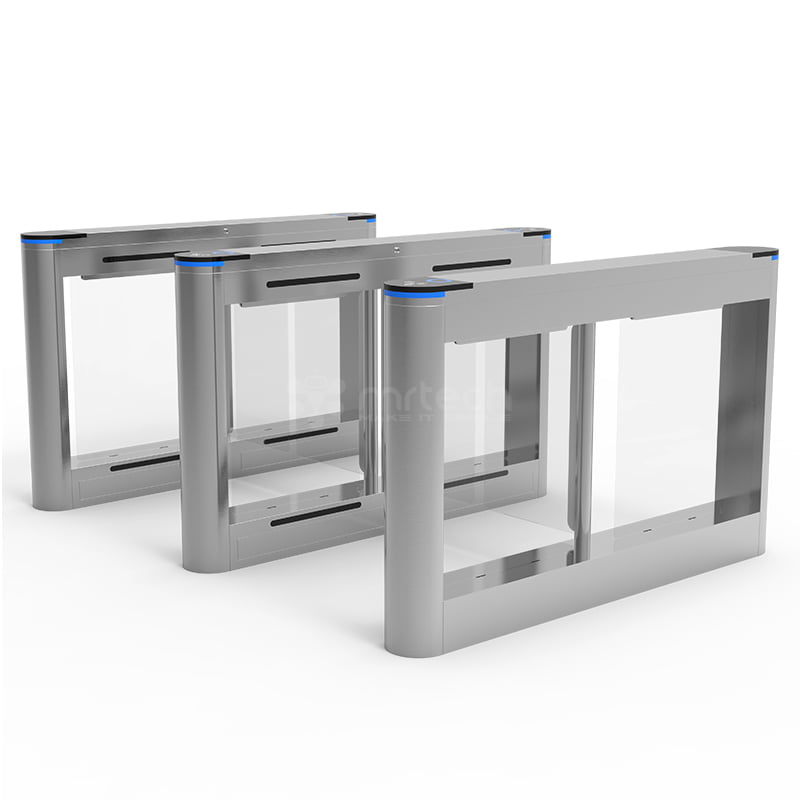

Swing Barrier Gate Factory Outlet And Inlet High Performance Servo Brushless Motor
It is mostly used in scenes where security efficiently needs to be improved, such as high-end office buildings, group enterprises, halls or elevator halls of business buildings, staircases, etc.
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings; as well as installation drawings.
Feature and function;
- Fault detection, user-friendly maintenance and use
- Small button int the main control panel, can be set state of equipment.
- Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a predetermined time, click stop working automatically, the default reset again after a delay, and the intensity is very small(2kg)
- Scour protection function, when the gate signal is not received, the stick is automatically locked
- The door synchronization are adjustable(for doubleoff gates situation)
- With automatic reset function, gate, not prevailing within the stipulated time, the system will automatically cancel the access permission of the user.
- Normally open or closed can be freely adjusted to meet different venue requirements
- Mount can be used with a variety of reading devices, work when it receive relay switch signal
- Single, bi-directional swing function, one-way or two-way control personnel access
- Directly through the remote management computer control and management
- Power failure emergency function after power channel automatically open, closed automatically after power-on, to meet the special needs of the user and the fire safety requirements
- Sound (light) alarm function, containing illegal intrusion alarm (reverse broke into the gate);etc.
- counting function(optional)
- Anti-pinch function(four pairs of infrared)
- The precise logical judgement, infrared reset function(4or6 pairs of infrared)
- The voice output, humane tips for correct password(optional)
Product Technical Parameters
Model Number | MR B136 |
Product name | Swing Barrier Gate Factory Outlet And Inlet High Performance Servo Brushless Motor |
Application | Security Access Control Management |
size | 1400*185*1000mm |
Material | SS304 grade stainless steel |
Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
Arm material | Acrylic/Glass 10mm thickness |
Channel width | ≤1000mm |
open gate signal input | Dry contact signals, 232 or 485 commands. |
Unlocking time | 0.2s |
Speed of passage | ≤35p/Min |
Voltage input | AC 220V/110V 10% 50/60MHZ(optional) 220V, 50H; (support adjustable) |
Type | full automatic or semi automatic |
environmental temperature | -25°C~+70°C |
working environment | Indoor/outdoor (under shade) |
MCBF | ≥5 million |
weight | single core movement: 70KG / double core movement: 80KG |
configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
Special Functions | 1. support normally open, normally closed, power failure door opening, fire linkage. 2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback; |
Advantages |
|
Secondary development | 1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment; 2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ) |
patent | patented design products patented movement utility model products |
Optional Access Control Solutions:
The turnstile gate High Performance Servo Brushless Motor can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
FAQ
Can this swing barrier gate wiyh anti-tailaing alarm?
yes, Anti-alarm is our standard request.
What is the using lif of this Gate Factory Outlet And Inlet speed gate?
More than 5,000,000 times.
Can I using our own access system to control the swing barrier gate?
Yes, the swing turnstile gate can receive the signal from your access control system and running.
Can you offeraccess control system?
Yes, we have our access control system like rfid cards, QR codes, Barcode. Ticket selling systems, face recognition. ect.
Can you make my own brand?
Yes, we have 12 ODM Experience since 2009. we can make our private design and logo.
What is the warranty policy?
During 12 months warranty period. any parts running wrong or problems, we will send the free to replace.
