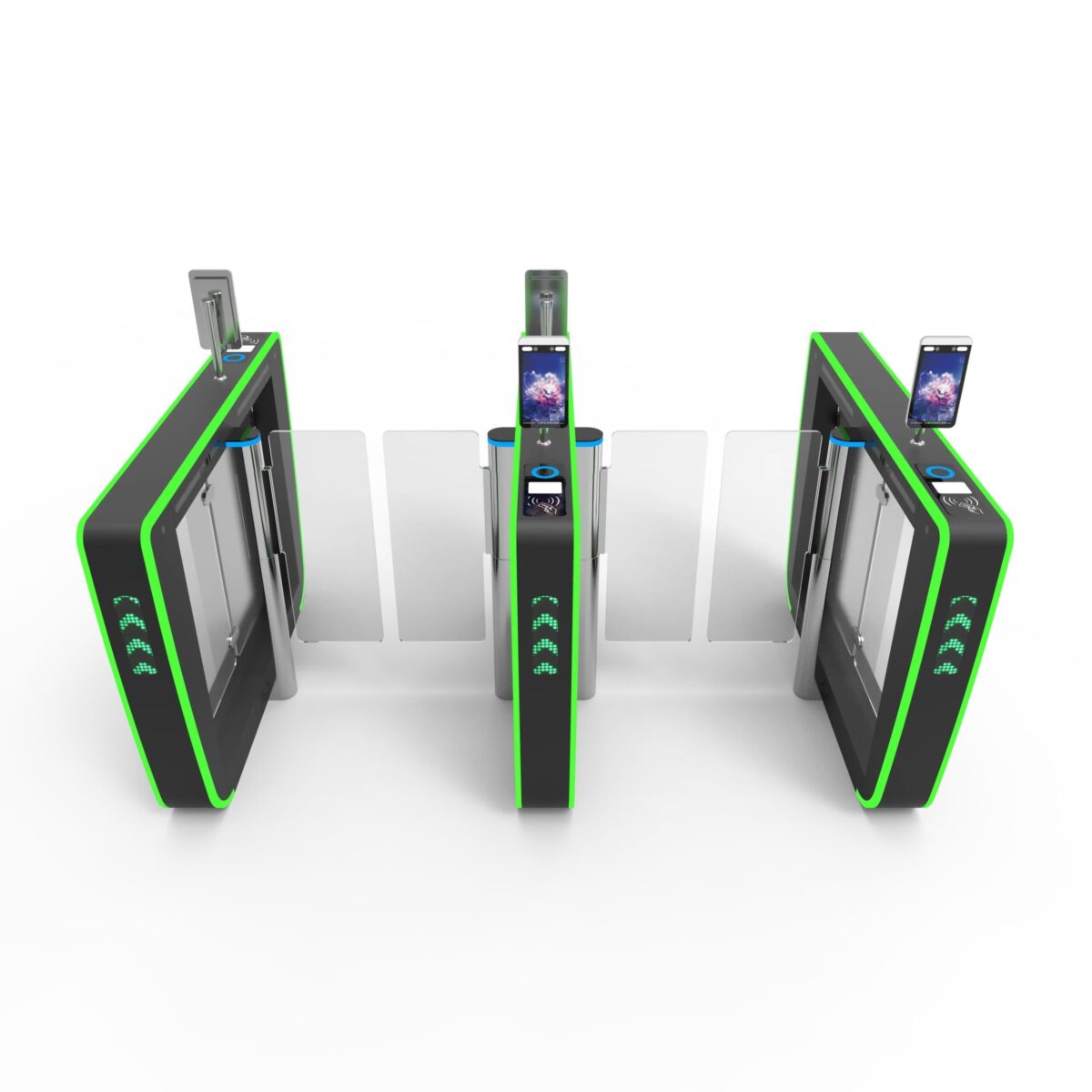

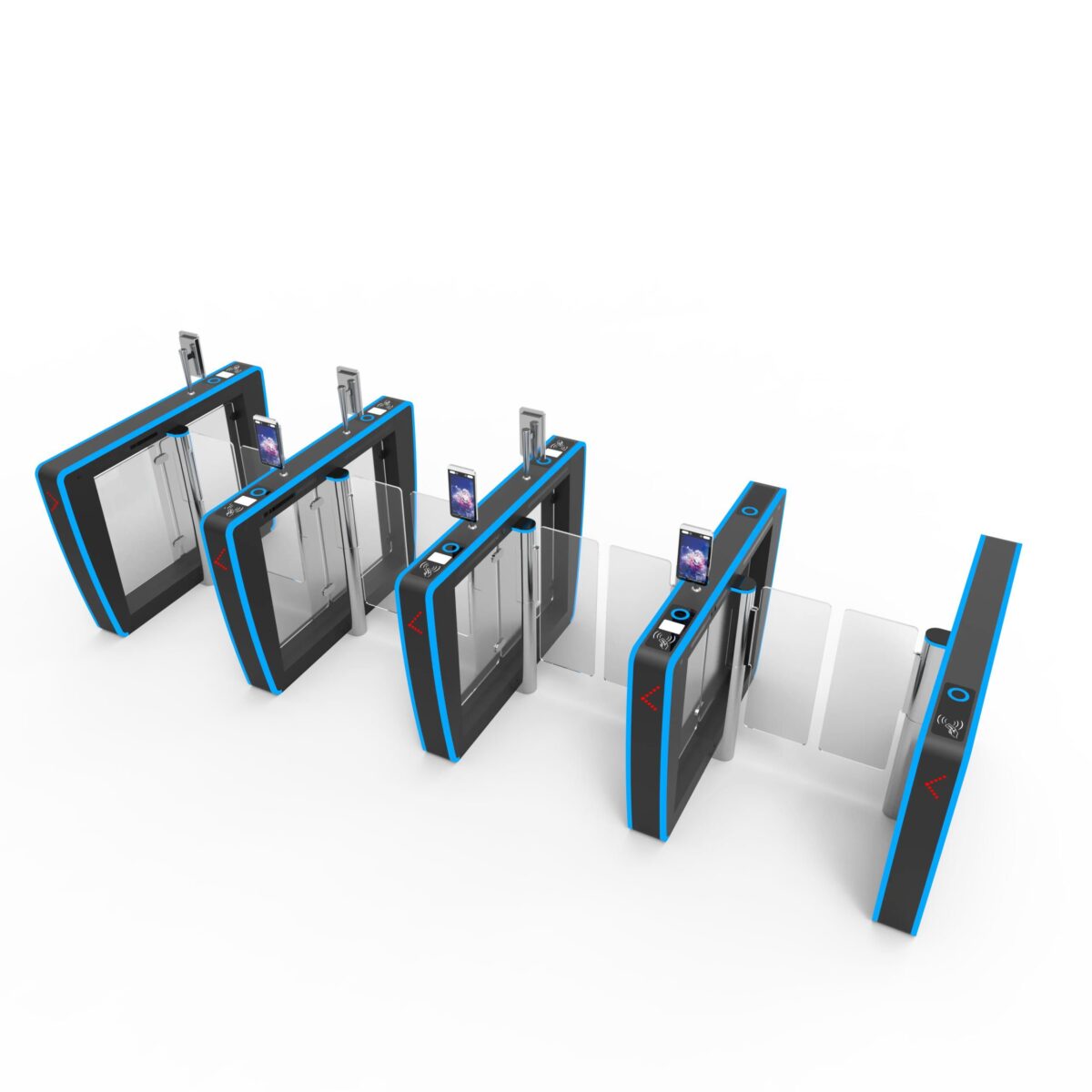

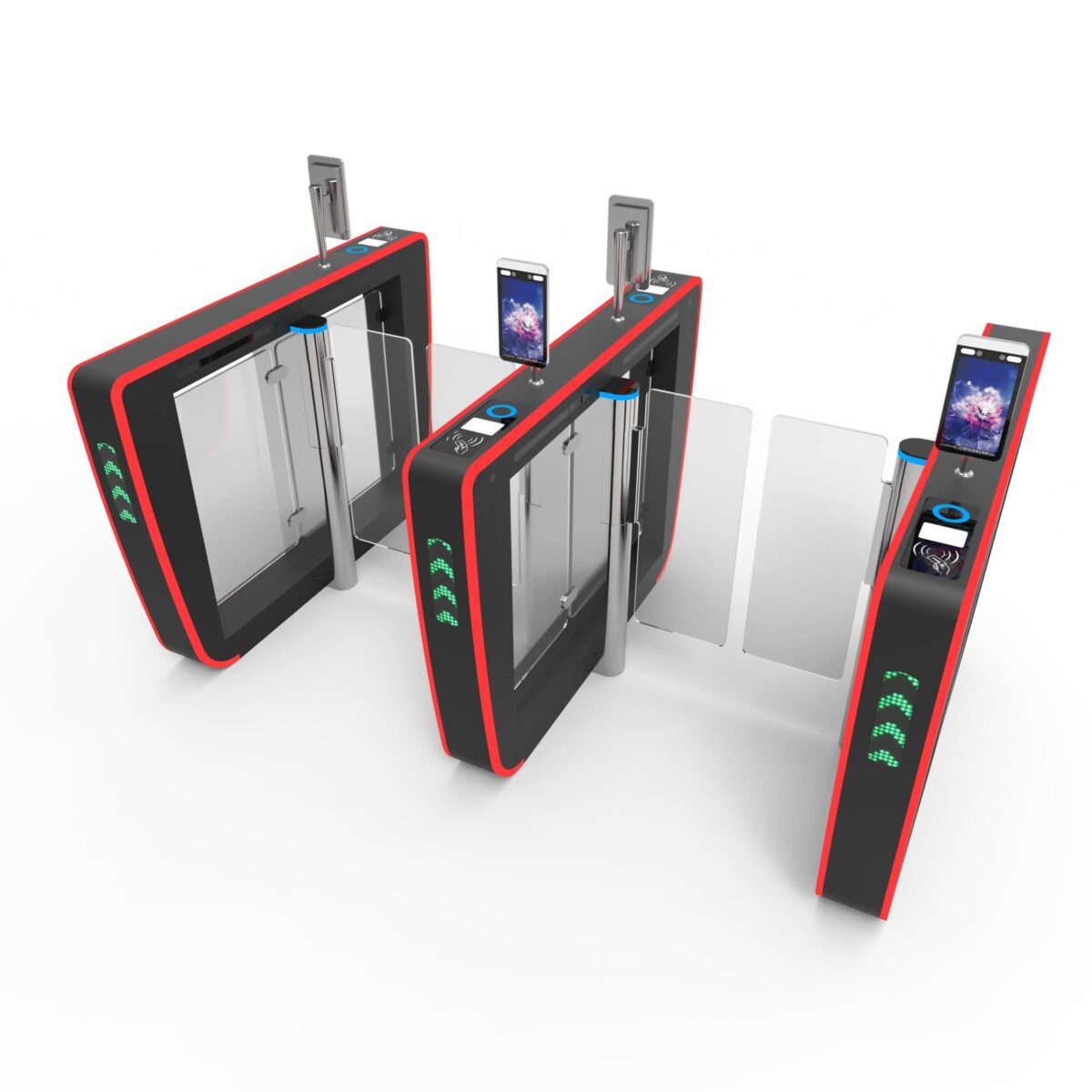

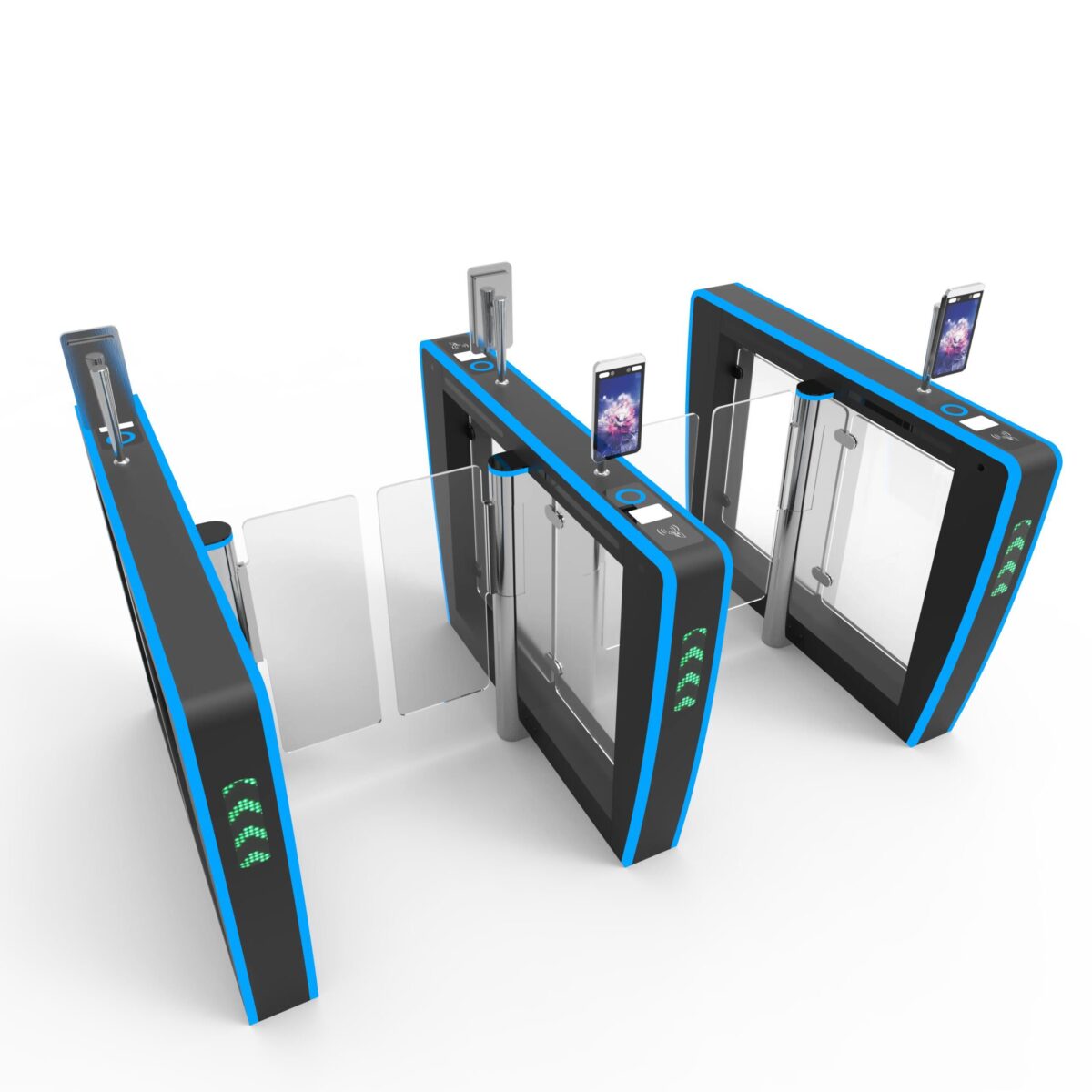

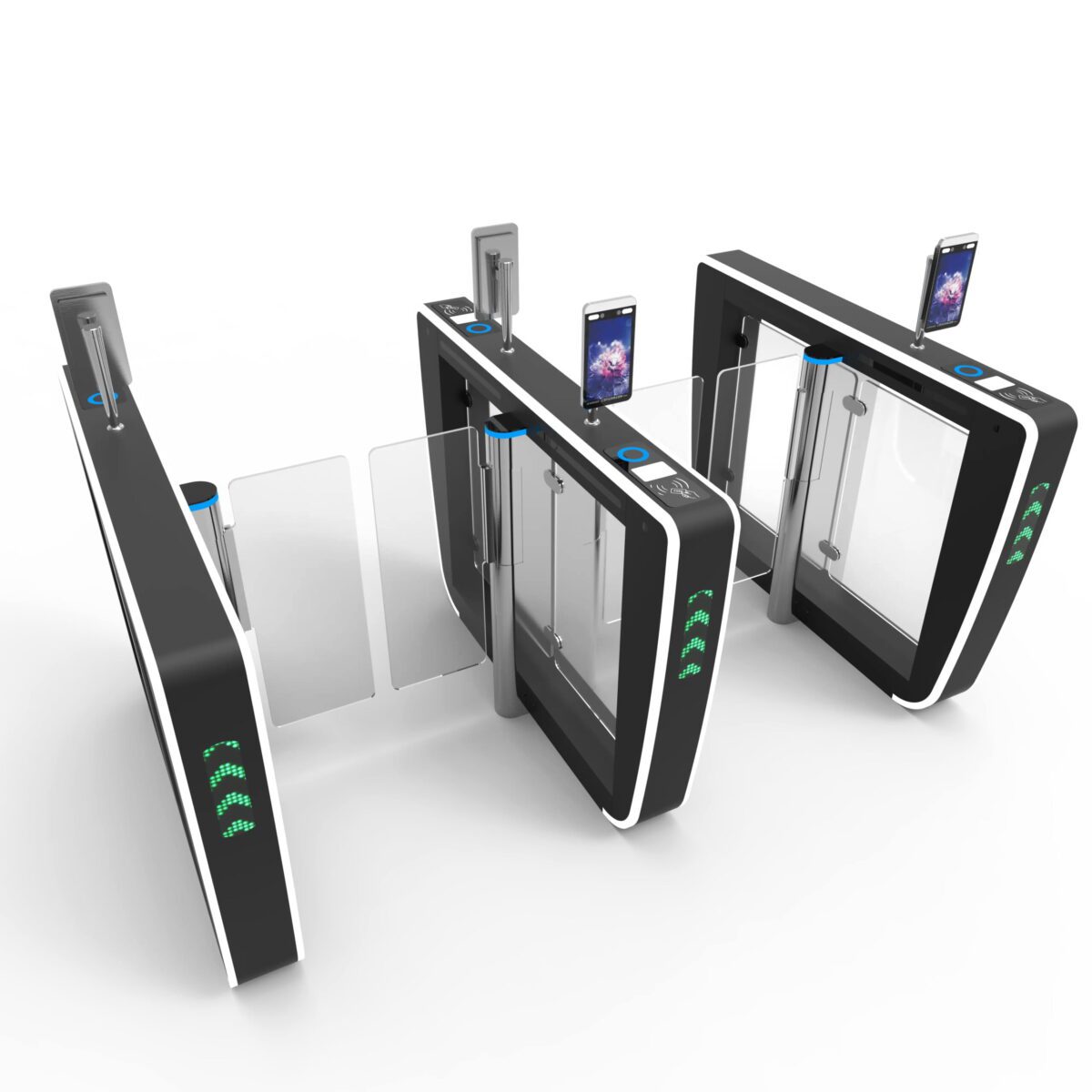

Security Entrance Staff and Visitors Pedestrian Speed Barrier Turnstile Gate
One of the main benefits of Speed Barrier Turnstile Gate is that they provide a high level of security while still allowing for a steady flow of people. They are also relatively low-maintenance, as they do not have moving parts that are prone to wear and tear.
1. Advantage:
The electric control adopts DC motor to drive stable and reliable, and has low failure rate. with ultra high light traffic indicator.
2. Remind function:
In the case of a man who does not swipe the card, the alarm will prompt the traveler to swipe card.
3. Alarm Function:
When a pedestrian swipes the card, the device alarms the alarm.
4. Check the following function:
The device will alarm when first people swipe the card when second people doesn’t.
5. The automatic delay function:
prevent people not hitting.
6. Various control functions:
By set the setting, the brake machine can be set at special time to be a regular open mode.
7. The mode of choice:
To meet the different requirements, set up as a two-way credit/ one-way credit card/free pass.
8. Various control functions:
external button, remote control, bar code, IC or ID card, etc.
Product Technical Parameters
| Model Number | MR SPT246S |
| size | 1450*180*1000mm |
| Material | SS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | 220V, 50H; (support adjustable) |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single core movement: 50KG / double core movement: 70KG |
| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Special Functions | 1. support normally open, normally closed, power failure door opening, fire linkage. 2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback; |
| Advantages |
|
| Secondary development | 1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment; 2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ) |
| patent | patented design products patented movement utility model products |
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
