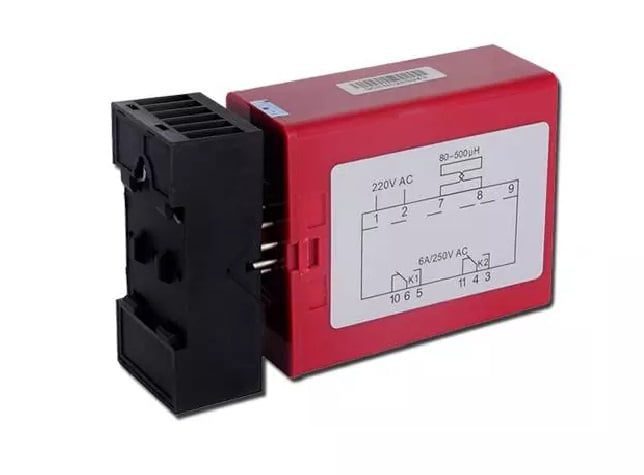

Parking Barrier Loop Detector Single Channel MR-VLD1


Loop detectors in recent years have become a popular tool having innumerable applications in policing, right from surveillance operators to traffic control.

Parking Barrier Loop Detector Single Channel MR-VLD1

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!

Single loop detector is used for wherever vehicles have to be detected, for example for monitoring and safe-guarding accessways or for counting vehicles. The output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems or activating card dispensers in parking lots MR-VLD1 has two-way output relays, one is unlimited output when the loop is temporarily covered, while the other is multi-mode that can be set by users



Parking Barrier Loop Detector Single Channel MR-VLD1

Parking Barrier Loop Detector Single Channel MR-VLD1

Specification of Parking Barrier Loop Detector Single Channel:

Brand MRTECH
Product NameVehicle detector single loop/single channel detector
Model NoMR-VLD1
Work VoltageAC 220V 110V DC24V 12V
Frequency Range20KHz∼170KHz
Frequency Adjustment4
Sensitivity4
Reaction Time100ms
Dimension78 x 40 x 108 mm
ApplicationParking System, Roadway control, etc

Parking Barrier Loop Detector Single Channel MR-VLD1

Functions and Features Parking Barrier Loop Detector Single Channel MR-VLD1

  • Reset Switch: The reset switch enables the detector to be manually reset during registering and testing and it is a process of system recovery;
  • Selectable Pulse Time: This feature sets the length of time that the pulse relay will be lasting for 1 Second or 0.5 Seconds ;
  • Pulse Relay Selection: The Pulse Relay may be configured to energize on detection of a vehicle or when the vehicle leaves the loop;
  • Sensitivity Reinforcement: This feature sets the un-detecting level to maximum sensitivity to prevent failing to detect vehicles as big trucks;
  • Switch Sensibility Adjustable: 4 sensitivity settings are available on the switches to change sensitivity ;
  • Switch Frequency Adjustable: 4 frequency settings are available to prevent signal interference with neighboring loops ;
  • Filtering Option: This option is used to provide a delay between detection of the vehicle and switching of the output relay. This relay is normally used to prevent false detection of small or fast-moving objects ;
  • Permanent Presence Option: This feature ensures the detection of the vehicle will be maintained when the vehicle stays within the loop area for extended periods

Parking Barrier Loop Detector Single Channel MR-VLD1

Parking Barrier Loop Detector Single Channel MR-VLD1

Parking Barrier Loop Detector Single Channel MR VLD1 1



NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!
Brand MRTECH
Product NameVehicle detector single loop/single channel detector
Model NoMR-VLD1
Work VoltageAC 220V 110V DC24V 12V
Frequency Range20KHz∼170KHz
Frequency Adjustment4
Sensitivity4
Reaction Time100ms
Dimension78 x 40 x 108 mm
ApplicationParking System, Roadway control, etc
