Electric Telescopic Glass Roof

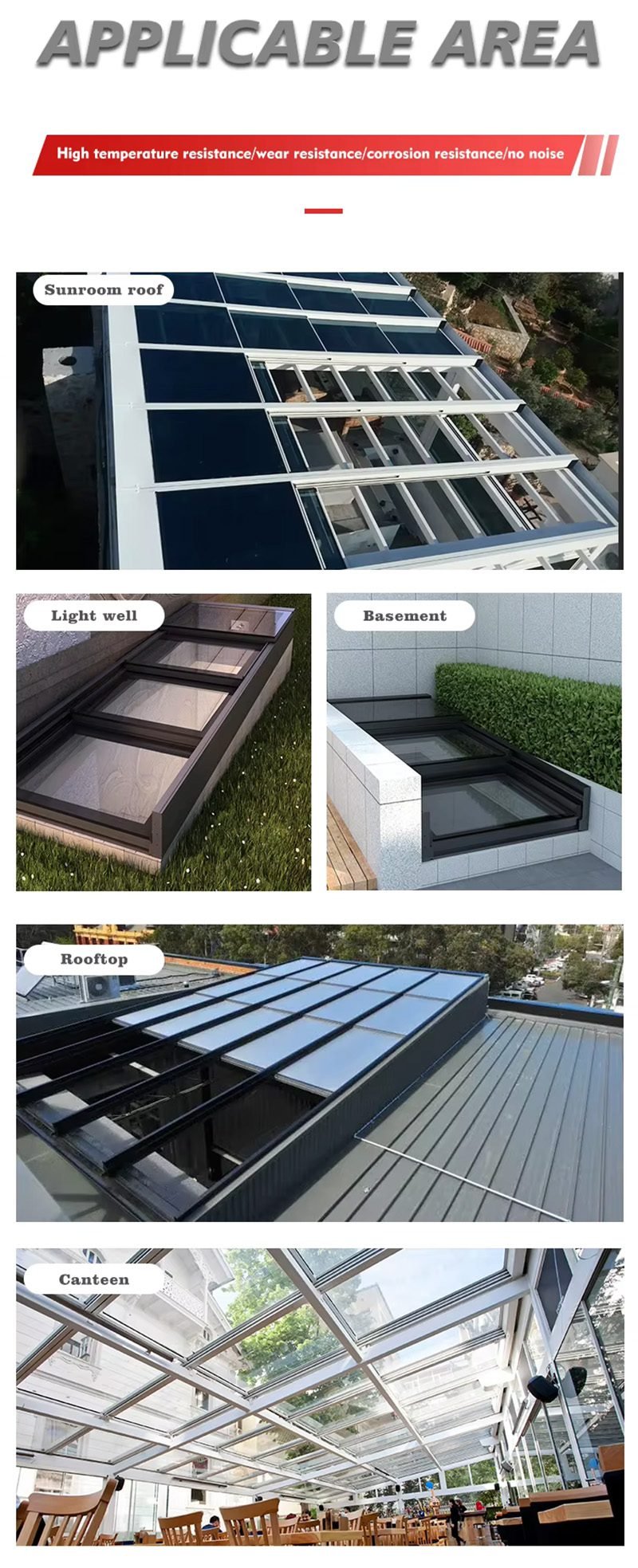

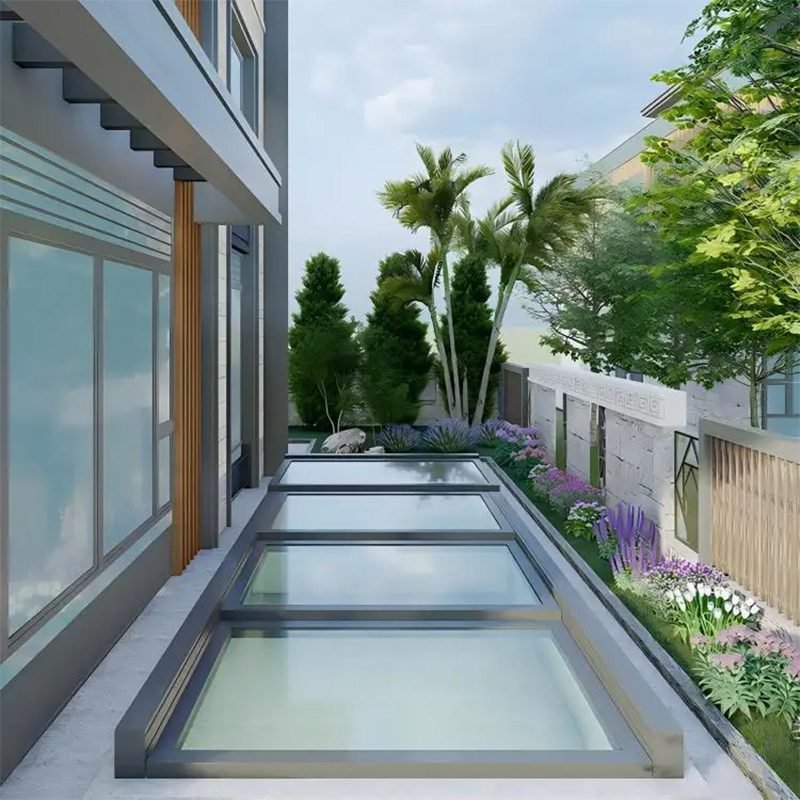

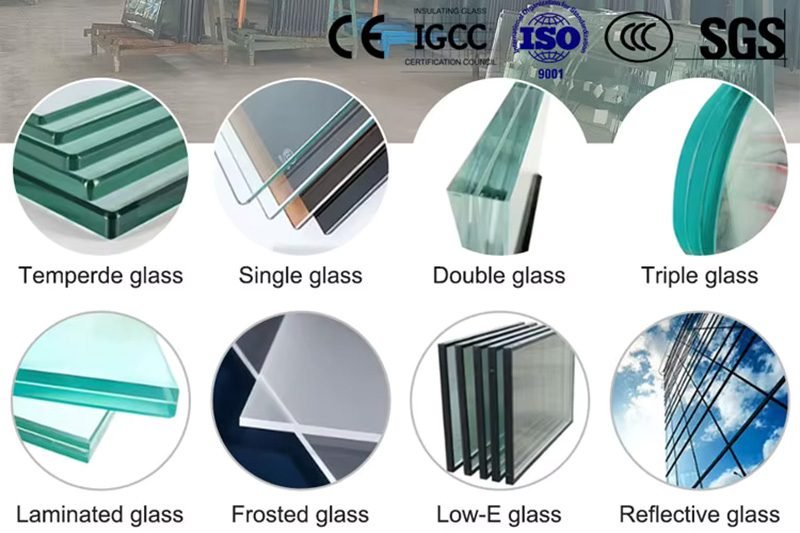

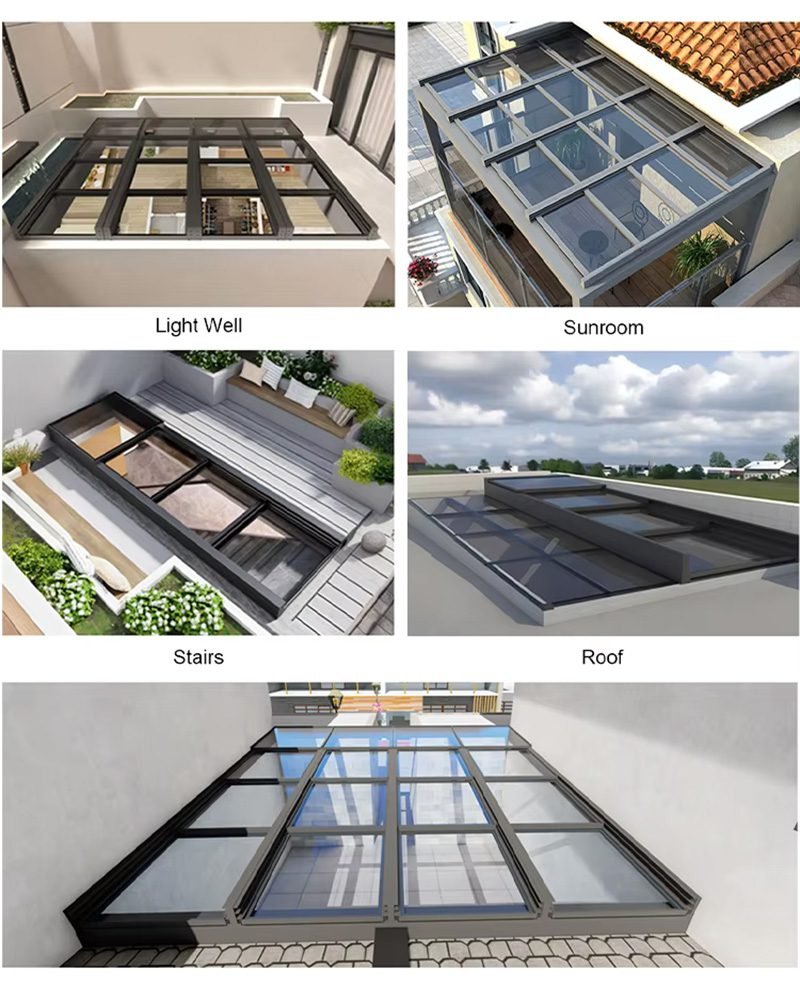

A telescopic glass roof is a motorized retractable enclosure that slides open or closed to transition a space between a weather-tight indoor room and an open-air area. Engineered with durable aluminum framing and tempered or laminated glass, it is widely used in residential villas, restaurants, and penthouses
Sunroof Technical Specifications
| PRODUCT | Motorised Retractable Roof |
| RETRACTABLE DIMENSION | |
| Width Min./Max. |
Single Leaf: 600/12000mm Double Leaf :1200/24000mm |
| Height Min./Max. | 500/3800mm Larger Dimension on request |
| Telescopic Width Min./Max. | Single Leaf: 600/16000mm Double Leaf :1200/32000mm |
| Telescopic Height Min./Max. | 1000/4800mm Larger Dimension on request |
| Opening Direction | Horizontal |
| Mounting Location | Inside/ Outside (retractable roof) |
| Mounting Surface | Bottom Rail: RCC |
| RETRACTABLE DESIGN | |
| Pattern |
Standard Steel Tubular pattern or Customised Fabrication design |
| Internal vertical member | Heavy Duty Vertical and Horizontal Box sections (or Customized design available on request) |
| Bottom Rail | Polished bright bar(round) with beam or C-channel support
Dual track bottom rail for large opening gates as per design, (Aluminium Steel, Galvanised steel, Stainless Steel) |
| Bottom Rollers | Heavy Duty Bottom Nylon Wheel with both side bearings and Wheel cups, (Galvanised Steel, Stainless Steel) |
| Glazing Sheet | Solid Compact Polycarbonate Sheet available in varient colours & sizes |
| Embossed Sheet | Solid Embossed Polycarbonate Textured Sheets with Ultra Violet Coated |
| Multiwall Sheet | Multiwall Polycarbonate Sheets with high quality of Ultra Violet Resistance, Solar Control, Weather Ability |
| PATTERNS/DESIGNS | |
| Other available material |
Stainless Steel, Aluminium Steel, Galvanised Steel |
| Sheets | GI / Aluminium sheets, Polycarbonate / Acrylic / PVC Sheet / Glass / Wood / WPC Wood / Fundermax panels |
| Ornamental Designs | On Request or as per client or architect design. |
| Options Available | Spikes as per requirement, Any type of Customized Design can be made on request. |
| FINISH | |
| Surface Finish | Standard: Primer Finish, Optional: Enamel Painting/Duco/PU painting/ Powder coating/ Hot deep Galvanising |
| DETAILS FOR AUTOMATION SYSTEM | Imported & Indian make electromechanical drive having features such as powerful startup & thermal sensors
Single(A.C & D.C)/Three Phase |
| Drive Unit | Imported & Indian make electromechanical drive having features such as powerful startup & thermal sensors
Single(A.C & D.C)/Three Phase |
| Emergency Operation | Manual release knob |
| Accessories (Optional) | Operational Accessories
|
| PRODUCT | Motorized Telescopic Glass Roof |
| RETRACTABLE DIMENSION | Single Leaf: 600/12000mm Double Leaf :1200/24000mm |
| Height Min./Max. | 500/3800mm Larger Dimension on request |
| Telescopic Width Min./Max. | Single Leaf: 600/16000mm Double Leaf :1200/32000mm |
| Telescopic Height | 1000/4800mm |
| Min./Max. | Larger Dimension on request |
| Opening Direction | Horizontal |
| Mounting Location | Inside/ Outside (retractable roof) |
| Mounting Surface | Bottom Rail: RCC |
| RETRACTABLE DESIGN | |
| Pattern | Standard Steel Tubular pattern or Customized Fabrication design |
| Internal vertical member | Heavy Duty Vertical and Horizontal Box sections (or Customized design available on request) |
| Bottom Rail | Polished bright bar(round) with beam or C-channel support Dual track bottom rail for large opening gates as per design, (Aluminium Steel, Galvanized steel, Stainless Steel) |
| Bottom Rollers | Heavy Duty Bottom Nylon Wheel with both side bearings and Wheel cups, (Galvanised Steel, Stainless Steel) |
| Glazing Sheet | Solid Compact Polycarbonate Sheet available in variant colors & sizes |
| Embossed Sheet | Solid Embossed Polycarbonate Textured Sheets with Ultra Violet Coated |
| Multiwall Sheet | Multiwall Polycarbonate Sheets with high quality of Ultra Violet Resistance, Solar Control, Weather Ability |

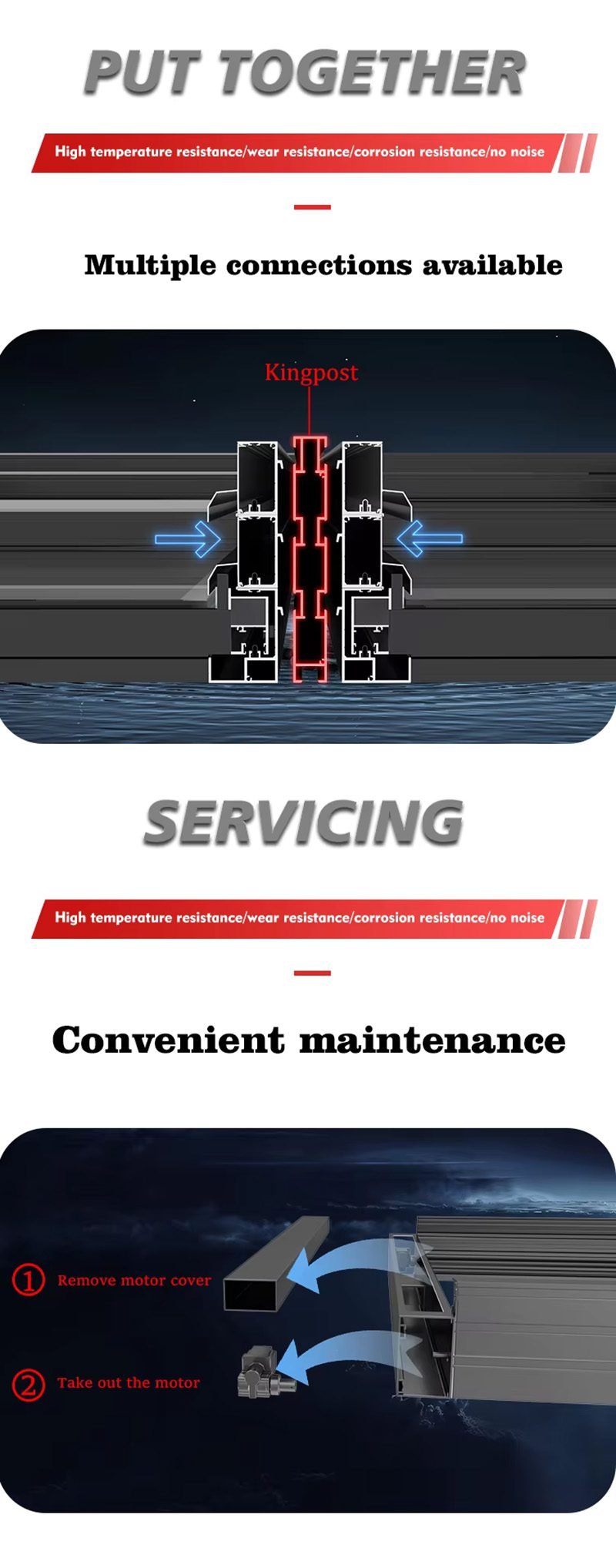

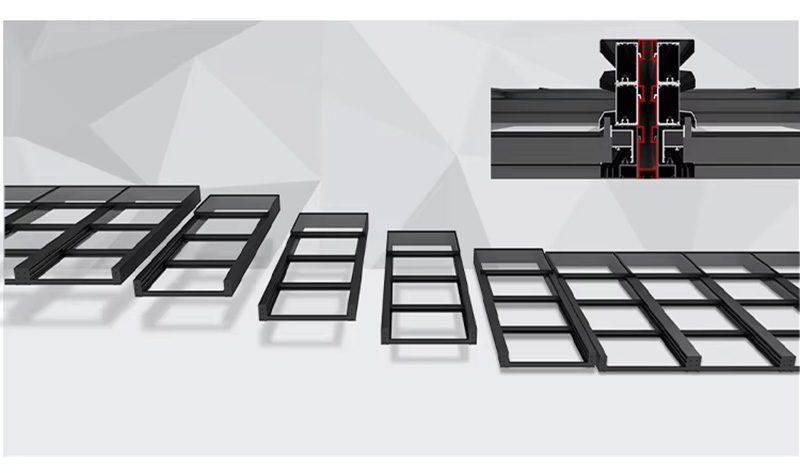

Continuous installation
The frame main beam can form a support beam, which is convenient for continuous installation of multiple panels
Electronic control system
Precise control, intelligent operation and automatic adjustment functions improve safety, convenience and comfort, and ensure that the sunroof operates efficiently, stably and intelligently.

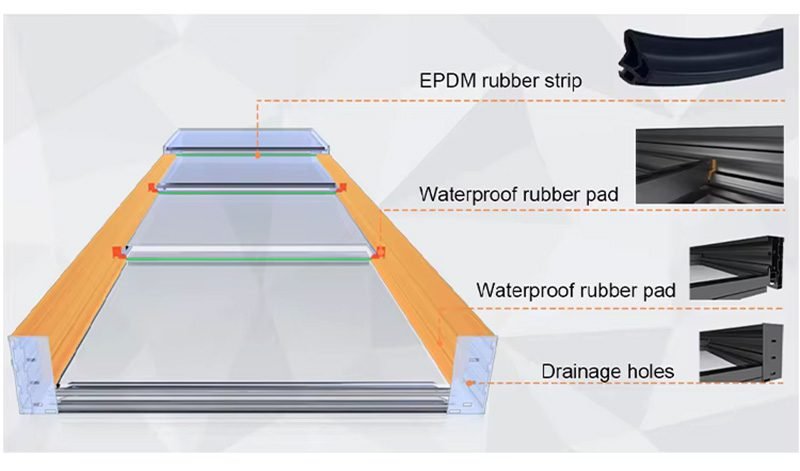

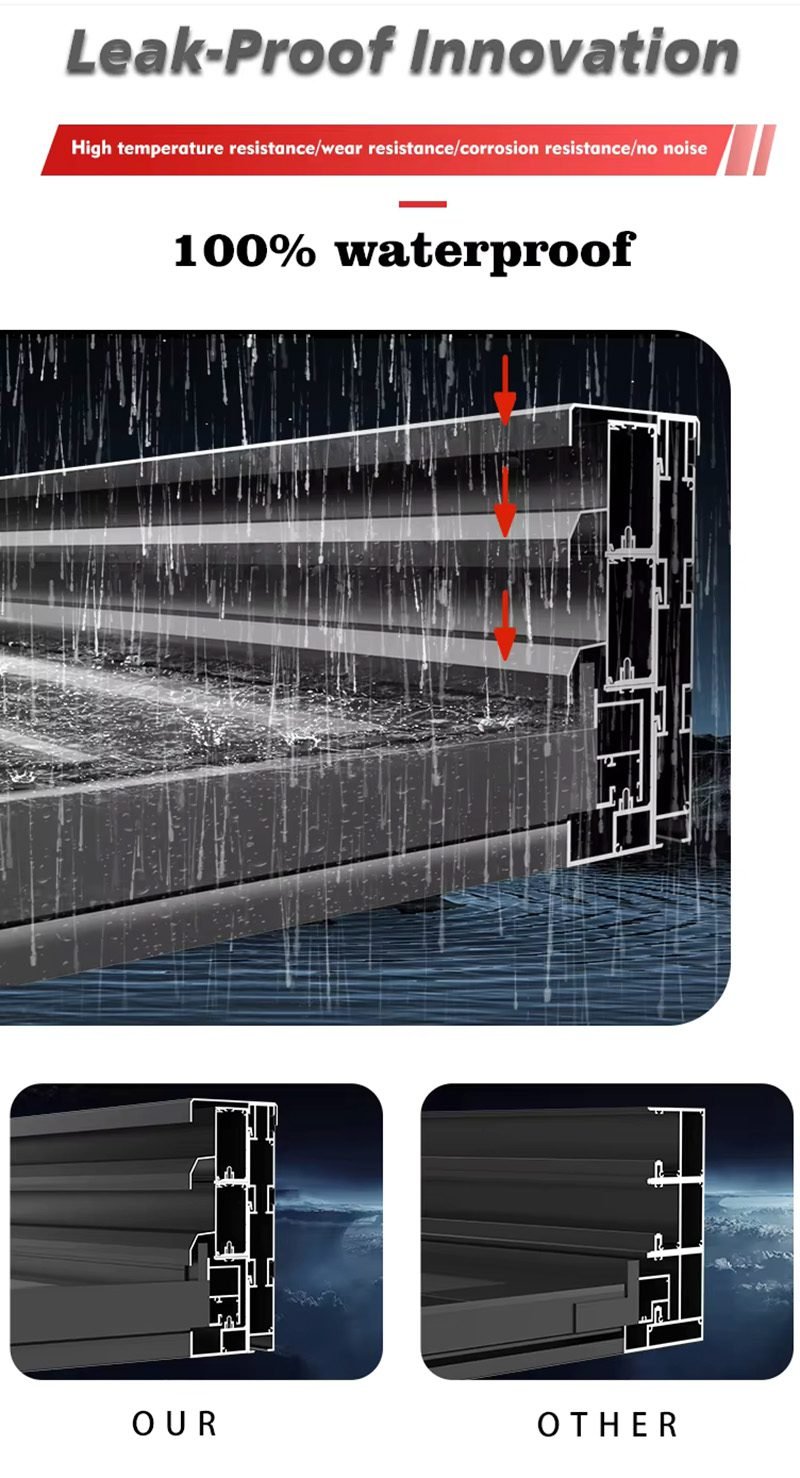

100% waterproof
Four waterproof designs provide all-round protection for the skylight, effectively preventing rainwater from penetrating.

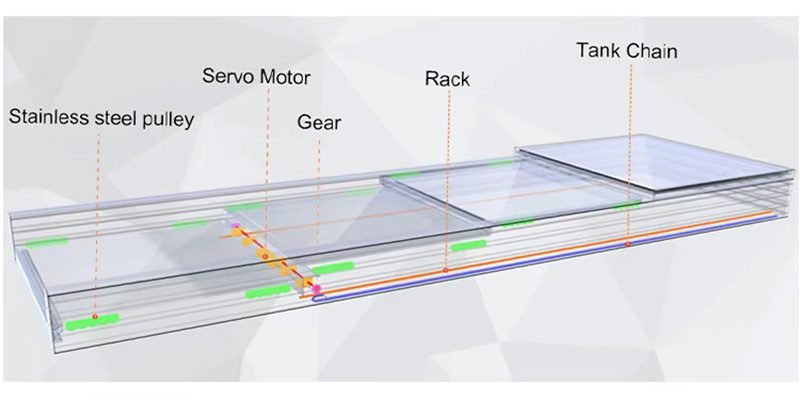

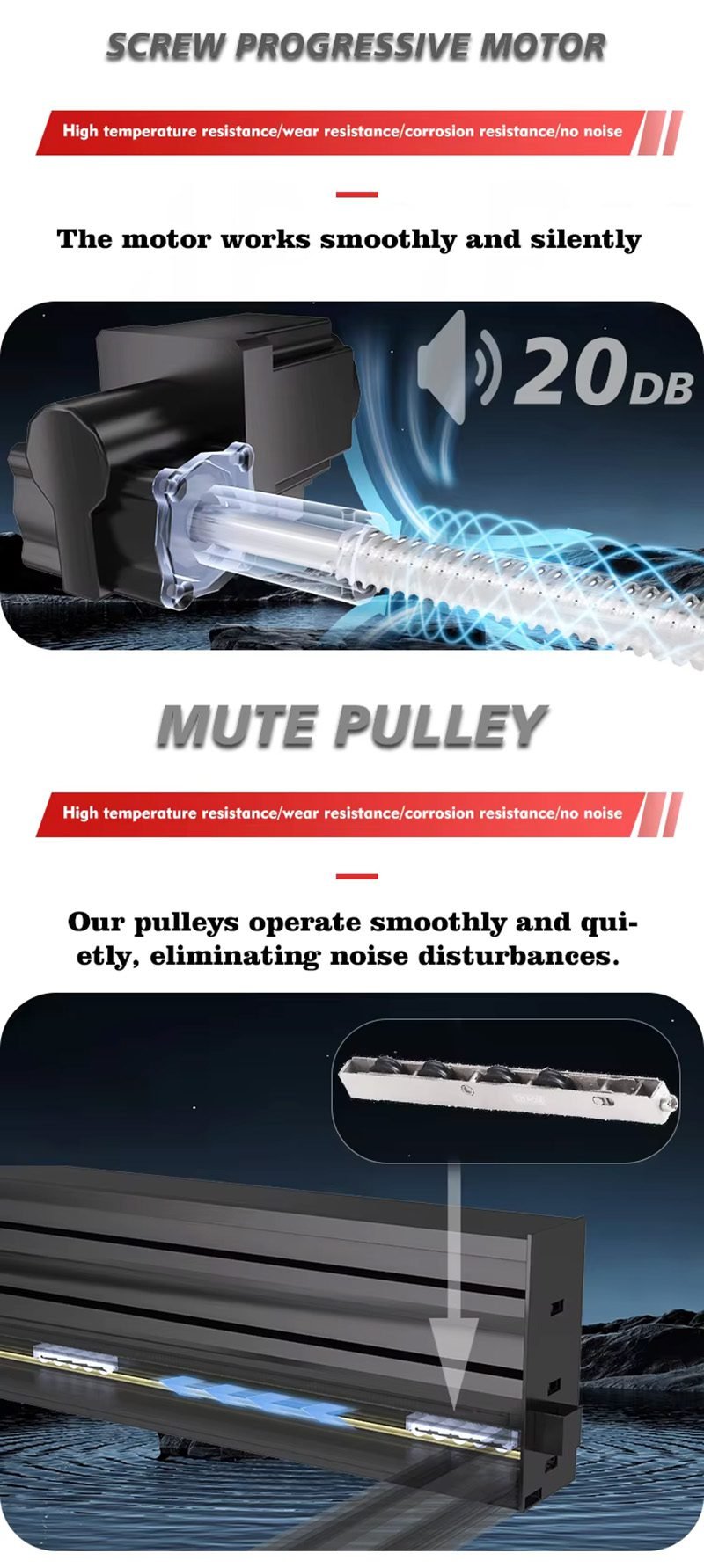

Operating principle
The servo motor drives the transmission shaft to rotate, driving the gears on the window sash to move back and forth. The window sash runs smoothly along the stainless steel track and rack through the silent pulley.
 |
 |
 |
 |
| Remote Control Traditional remote control allows you to operate the system easily & quickly |
Voice Command Operate your system by simple voice command |
Wireless Light Control Experience the latest light technology and break the boundaries of controlling your light wherever you are |
MyLink Enable control of all motorized systems on application |
