4.25 Complete Cantilever Gate Hardware Kit for Trackless Sliding Gate

Technical information

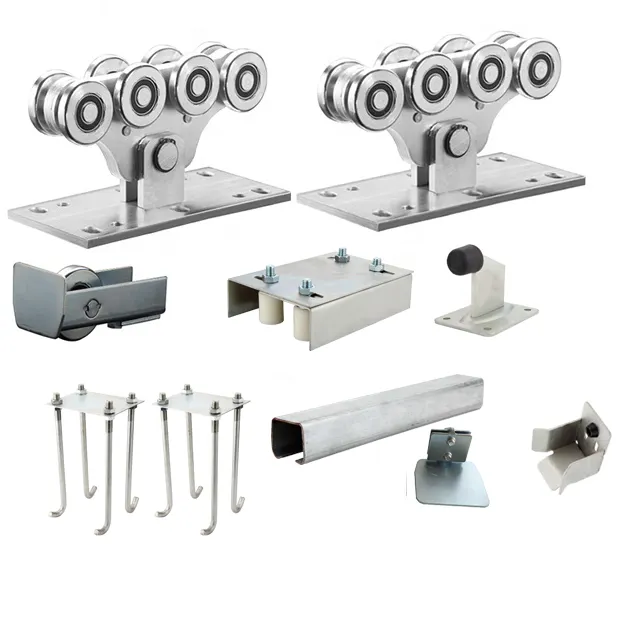

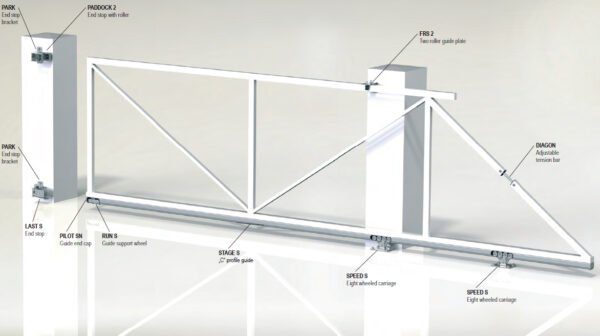

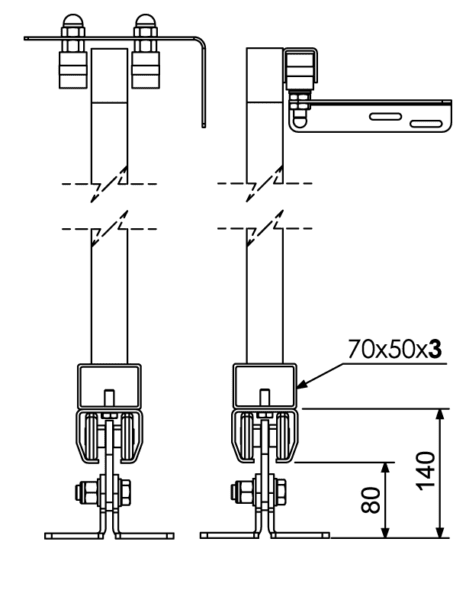

The cantilever gate system is a complete kit able to carry a sliding gate without having wheels or tracks in the ground in the opening passage. It Cantilever Gate Hardware Kit consists of 2 trolleys, 1 guide, 1 final wheel, 1 stopper, and on request other accessories from our catalog (for example, upper guide, rail caps, base plate, etc., etc.) to install a sliding gate.

The gate must be according to the maximum weight and opening length reported and must be rigid and stiff by itself to avoid deformation flexion or bending of the gate itself when moving. Our bottom guide is supposed only to have to carry the gate weight and must be fixed properly to the gate without damage.

DOES SIZE MATTER?

ASK THE EXPERTS ALL ONE BOX CONCEPT

MR.TECH leads the way in thinking Outside the Box for Packaging Cantilever Gate Hardware. Shipping in the 21^st century has moved from box stores to boxes. With so many orders online, your clients are rapidly changing their habits in purchasing. MR.TECH has been one of the first gate hardware manufacturers to understand the importance of packaging by introducing ALL IN ONE BOX CONCEPT.

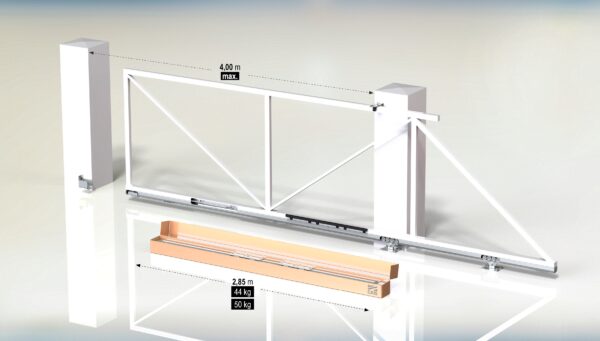

Compact cantilever sliding gate hardware 2.85 mt BOX

PARCEL DELIVERY EASY AND AFFORDABLE

The longer the item, the more your Client has to pay to send a long parcel. Posting the long parcels does not need to be a headache anymore. To find the cheapest way to send a long parcel MR.TECH has invented and patented “ALL IN ONE” the Compact Cantilever Sliding Gate Hardware. According to the most reputable couriers, anything longer than 3.0 mt is considered as a Long Parcel Delivery, with extremely high courier rates. Therefore MR.TECH “ALL IN ONE” Compact Cantilever Sliding Gate Hardware is the ideal solution for Cantilever Gates up to 4.0 mt, making parcel delivery easy and affordable.

THE INSTALLATION STEPS

The installations do not require complicated steps and materials, and therefore the working time is not too long as well. We invite you to follow the below installation steps of MR.TECH “ALL IN ONE” cantilever sliding gate hardware.

SPARK YOUR CREATIVITY

If you’ve never installed MR.TECH “ALL IN ONE” before, today’s easy-to-use 3D VIDEO MANUAL speeds up the learning process. Time to spark your creativity.

WHAT MAKES THE “ALL IN ONE” CANTILEVER HARDWARE DIFFERENT?

MR. TECH has to ensure that all the cantilever gate hardware, that your clients need to assemble the cantilever sliding gate, is included in ONE BOX.
See what MR. TECH “ALL IN ONE” box includes:

Product Description

Compared to a traditional Cantilever Gate Hardware Kit sliding gate, the entire gate is cantilevered off the ground without any wheels traveling on the ground. This allows for free movement of the gate in uneven ground conditions and reduces the wear and tear on the gate and any installed gate automation.

1. 270g/m2 Hot Dipped Galvanized

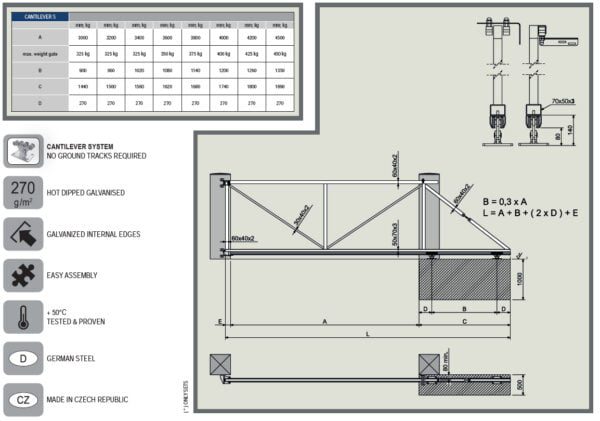

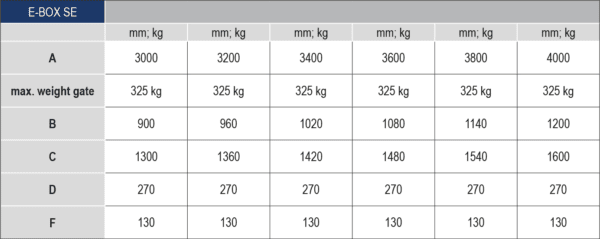

2. Suitable for up to 7m Clear Opening and 450kg weight.
3. Cantilever System – For Trackless Sliding
4. Suitable for Inclined Surfaces also

“ALL IN ONE” CANTILEVER GATE HARDWARE WITH NO WELDING REQUIRED

While welding has long been utilized in the gate industry, the alternative is fastening which offers several benefits to your clients over welding. First of all Safety – no chance of fires from random sparks, simplicity – easy to install, speed – fast installation, cost and time savings – no need for costly galvanization. Check out the MR.TECH introduction video and find out why so many forward-thinking blacksmiths have made the switch from welding to MR.TECH “ALL IN ONE” Cantilever hardware.

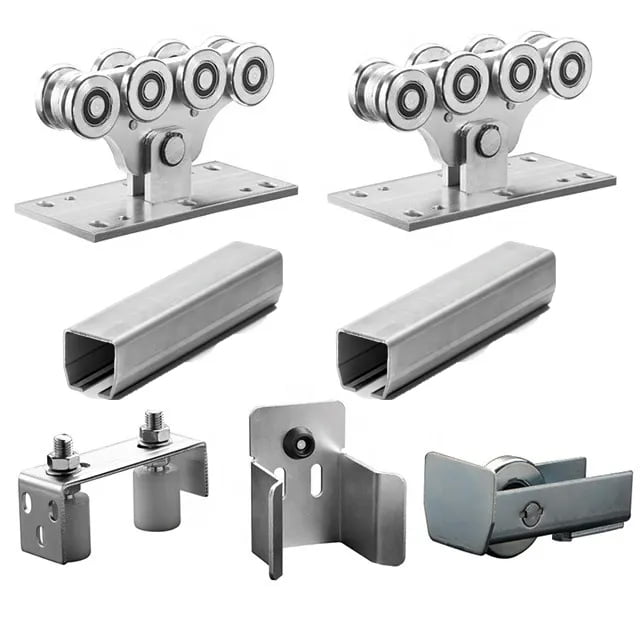

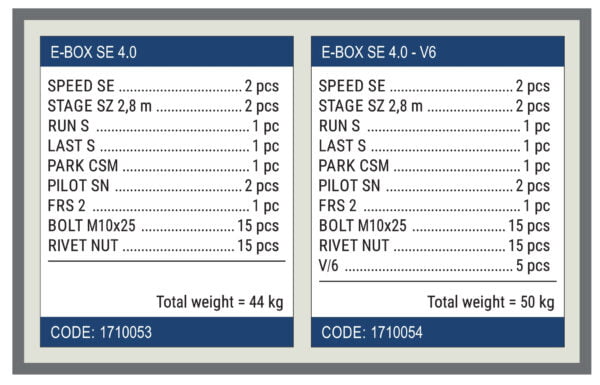

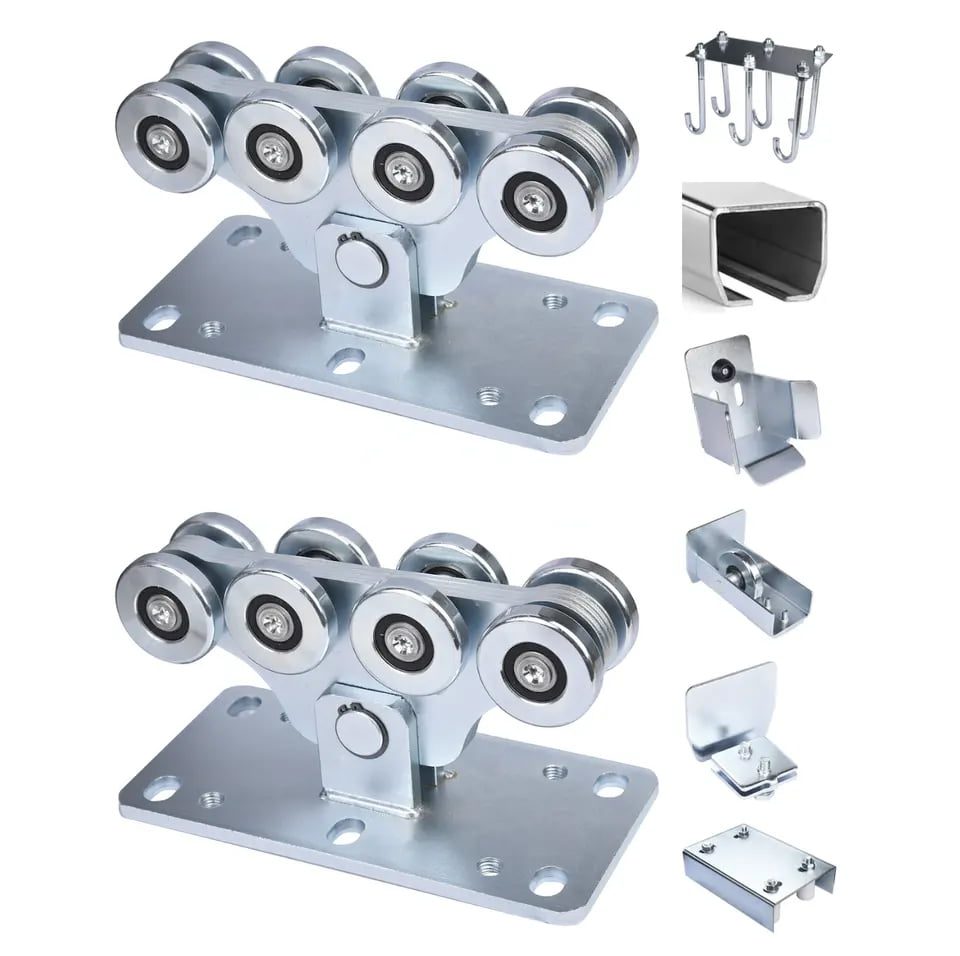

What is in the Cantilever Gate Hardware Kit box?

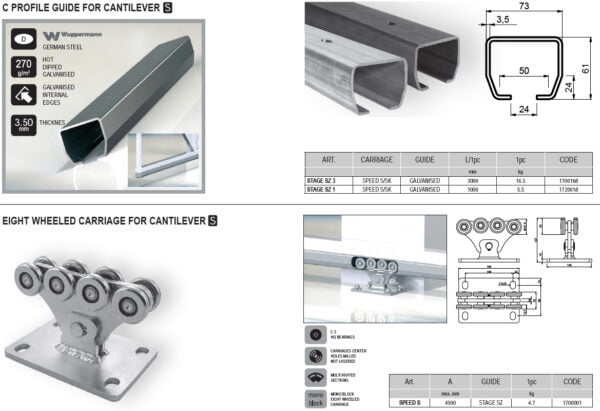

• Eight Wheeled Carriage (Speed ME)- 2 pcs

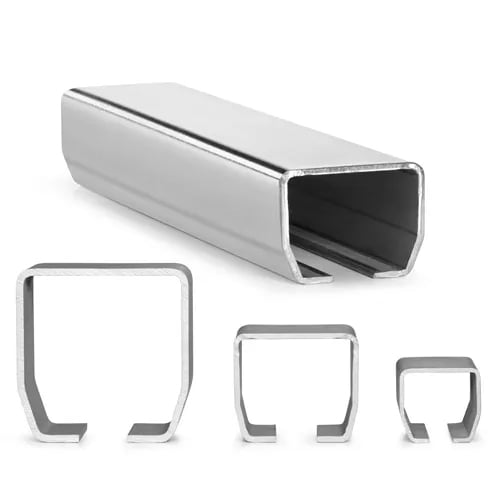

• C Profile Guide 3m. (Stage MZ 3)- 3 pcs
• C Profile Guide 1m. (Stage MZ 1)- 1 pcs

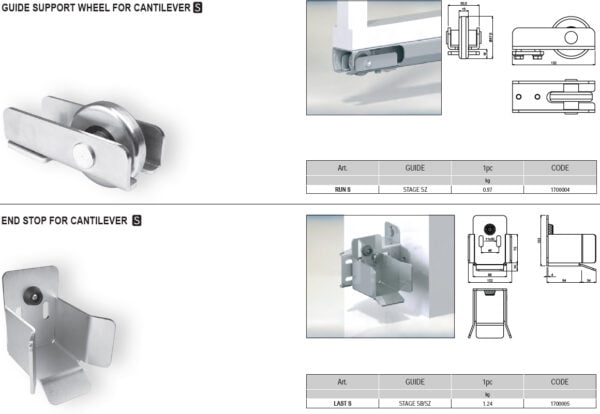

• Guide Support Wheel ( Run M)- 1 pc

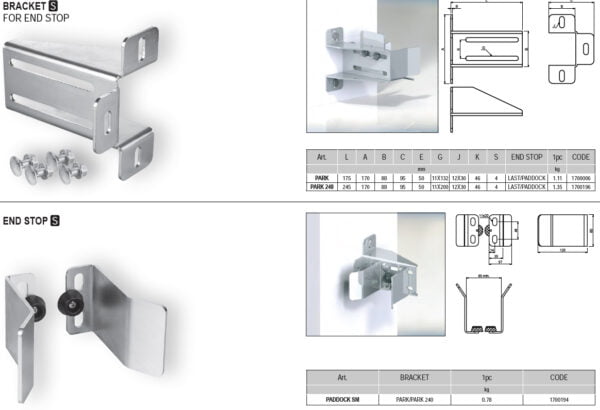

• End Stop Bracket (Park) – 2 pcs
• Guide Support Wheel End Stop (Last M) – 1 pc

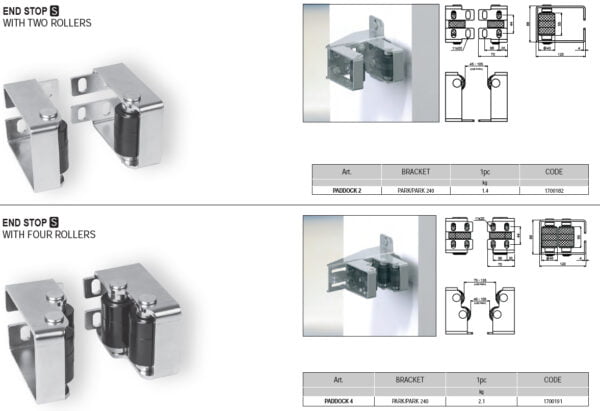

• End Stop With Two Roller (Paddock SM) – 1 pc

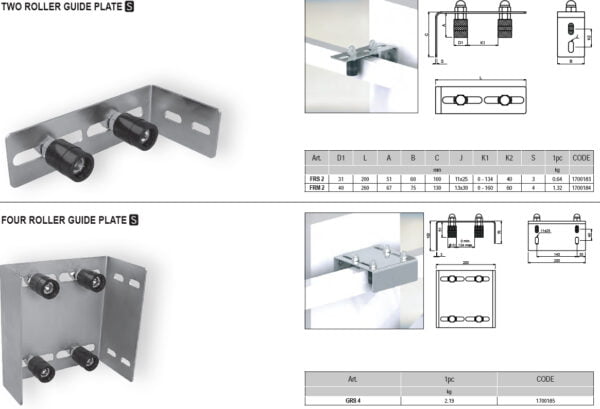

• Four Roller Guide Plate ( GRS 4)- 1 pc

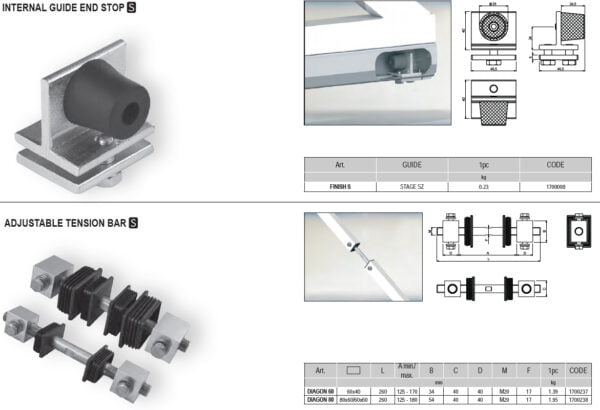

• Internal Guide End Stop (Finish M) – 1 pc

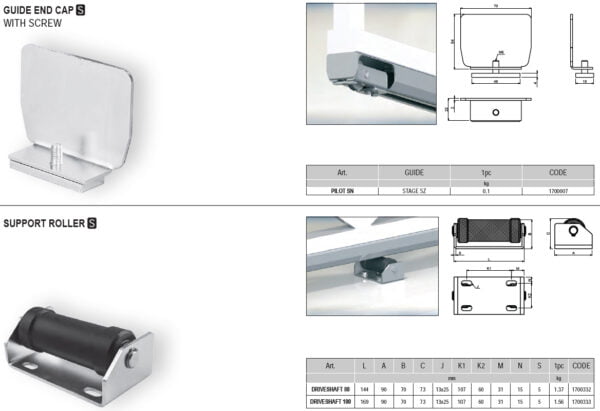

• Guide End Cap With Screw (Pilot MN)- 2 pcs

Hardware Accessories Sliding Door Hardware Cantilever Gate, cantilever gate carriage 8 wheels for heavy duty sliding gate, Cap Hardware Accessories Sliding Door Hardware Cantilever Gat, zinc plated cantilever gate guide wheel roller gate carriage wheel kit

Get the highest quality for your construction projects with MRM Technology Exim’s Building, Mainly used in urban transportation, military and national agency gates, and surrounding areas, pedestrian streets, Industrial, Commercial, and Residential, highway toll stations, airports, schools, banks, large clubs, parking lots and many other occasions.

Restricting passing vehicles, effectively ensures the traffic order and the safety of major facilities and places solutions.
