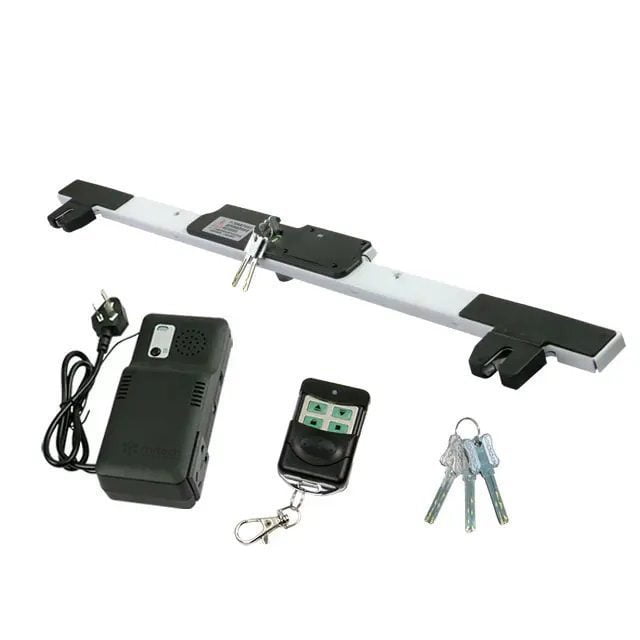

Automatic Electric Bottom Beam Locks for Roller Shutter

Automatic Electric Bottom Beam Locks for Roller Shutter

The Automatic rolling shutter external bottom beam electric lock is fit for all vertical and horizontal rolling shutter door installations, with the double hooks interlock and B-grade lock core. Automatic Electric Bottom Beam Locks for Roller Shutter  is so strong that can not forced open manually. Rolling core Can not be copied and avoid inter-symbol interference. Open door protection after the bottom beam is locked, the controller is locked synchronously. At this time, the motor protects the door body from being damaged due to the lock body forgetting to unlock.

Specifications:

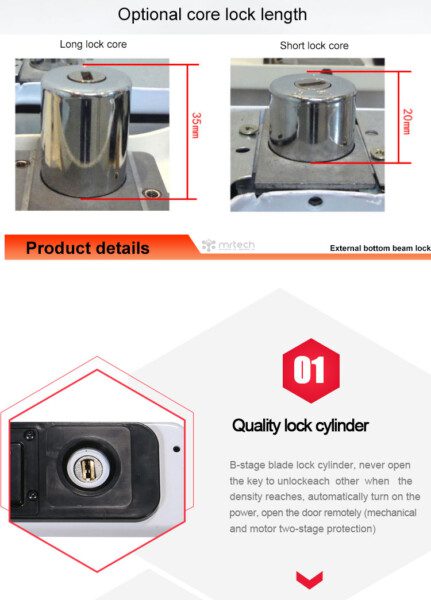

Optional Core lock length

1. Long lock core: 35 mm
2. Short lock core: 20mm

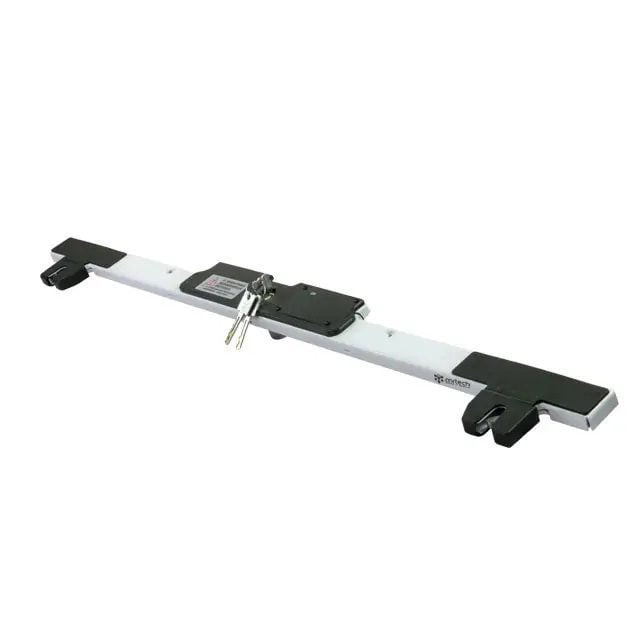

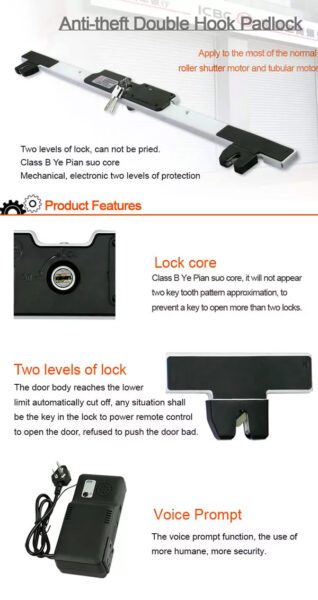

Features of Anti-Theft Double Hook Padlock of Rolling Shutter Door:

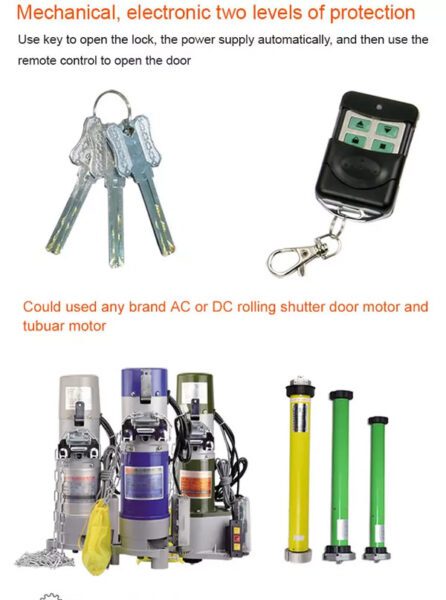

• Quality lock cylinder: B-stage blade lock cylinder, never open the key to unlock each other when the density reaches, automatically turn on the power, open the door remotely ( mechanical and motor two-stage protection )
• Wide range of applications: Electronic rolling shutter external bottom beam lock is fit for all vertical and horizontal rolling shutter door installation, with the double hooks interlock and B grade lock core. It is so strong that can not forced open manually.
• Delay opening: Avoid miss receiving a signal by a fast unlock After fitting the shutter door not go up then lock, and the motor will stop working also.

The electronic rolling shutter external bottom beam lock is fit for all vertical and horizontal rolling shutter door installations, with the double hooks interlock and B-grade lock core. It is so strong that it can not forced openmanually.

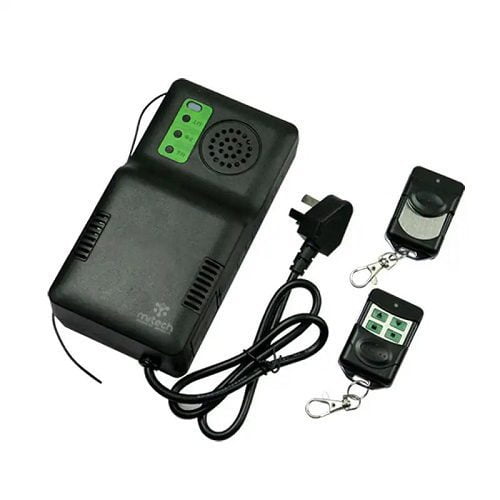

• Rolling code: can not be copied and avoid inter-symbol interference
• Open door protection after the bottom beam is locked, the controller is locked synchronously. At this time, the motor protects the door body from being damaged due to the lock body forgetting to unlock
• B grade blade lock core: will not have the same password in two different locks, strong enough that can not forced open manually
• Delay opening: avoid miss receivinga  signal by a fast unlock

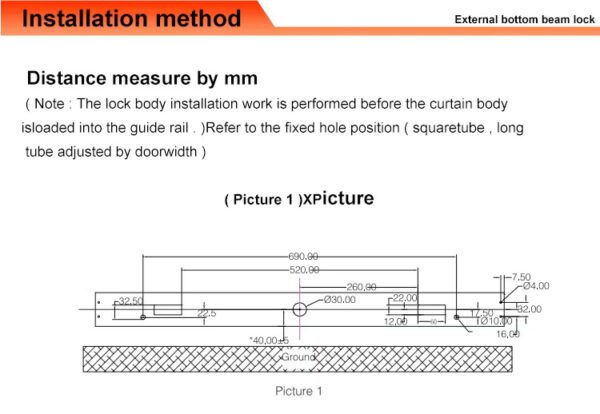

Square tube drilling reference for Automatic Electric Bottom Beam Locks for Roller Shutter:

1. Specification is 10″20mm, Stainless steel tube, thickness less than 0.5mm.
2. As shown in the picture, the distance is 14mm and this hole is the screw hole of the lock body pull arm. As shown in the picture, the distance is 40 mm, and the hole position of the lock is tilted.
3. The length L is cut off with reference to the width of the door, which is subject to the actual installation.

Automatic Electric Bottom Beam Locks for Roller Shutter Application:

1. Cosmetic Store
2. Garage doors
3. Restaurants
4. Warehouses.

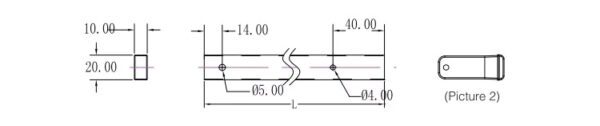

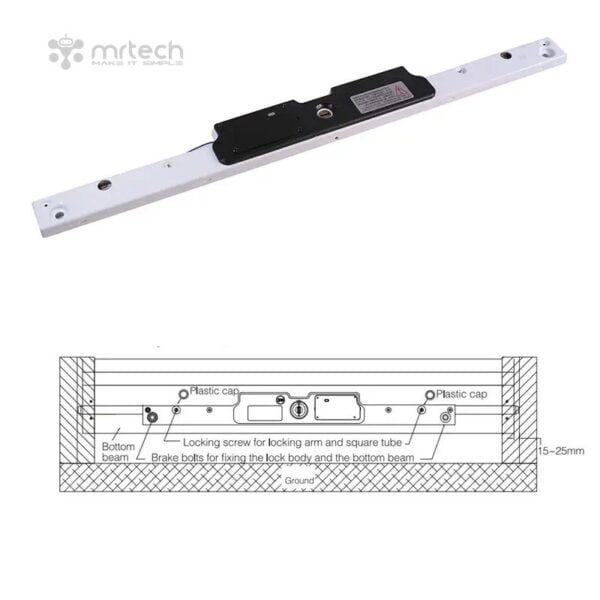

Square tube drilling reference

1. The specification is 10″20mm, stainless steel square tube, thickness less than 0. 5mm.
2. As shown in the picture, the distance is 14mm and the hole is 4mm. This hole is the screw hole of the lock body pull arm.
3. As shown in the picture, the distance is 40mm ande rivet the hole position of the lock tongued.
4. The length L is cut off with reference to the width of the door, which is subject to the actual installation.

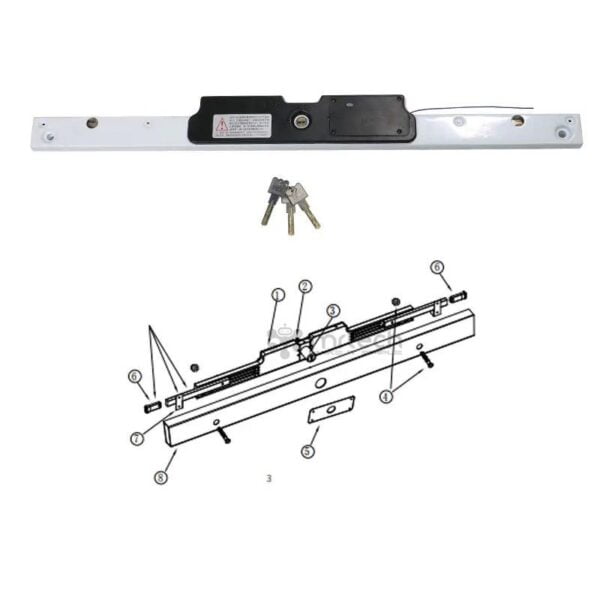

(The square tube includes a locking tongue and a positioning piece in the bottom beam)
