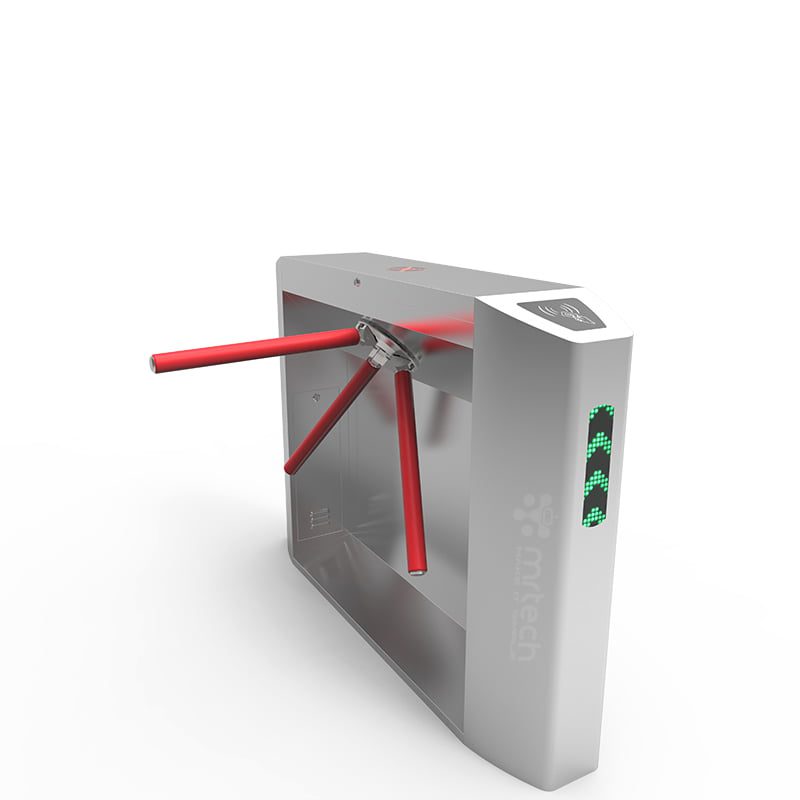

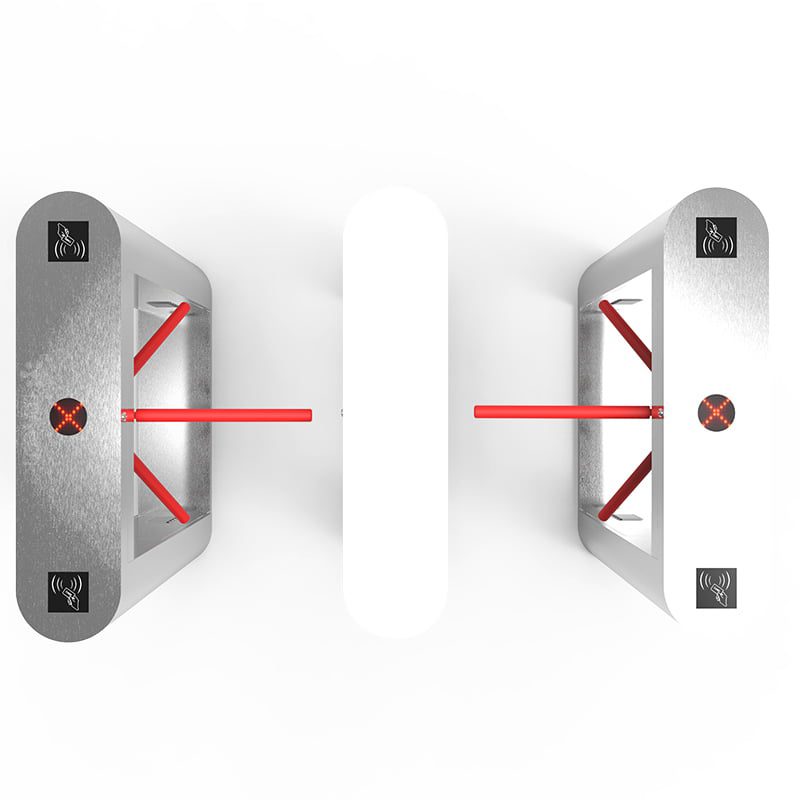

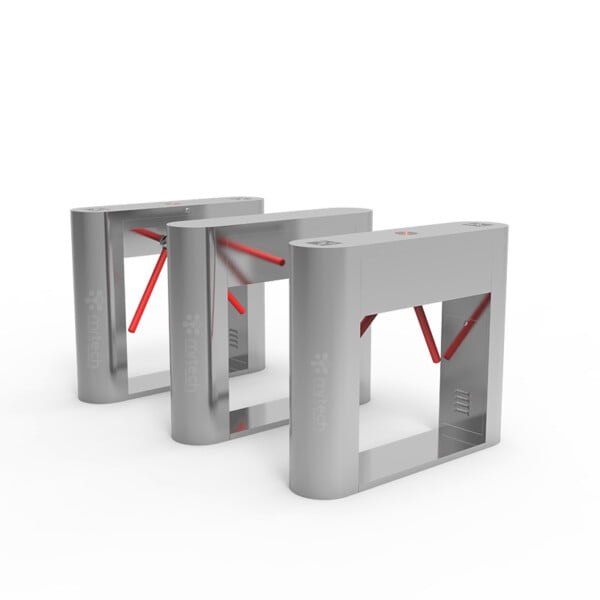

Stainless Steel Silver Motorized Drop Arm Tripod Turnstiles
Motorized Drop Arm Tripod Turnstiles In terms of installation, Stainless Steel Turnstiles are relatively easy to install. They can be placed either in a recessed or surface-mounted position, and they can be powered by either AC or DC power.
Product Technical Parameters
| Model Number | MR. TECH-S338 |
| Product name | Drop Arm Tripod Turnstiles |
| Application | Security Access Control Management |
| Material | 304 stainless steel |
| Power supply | AC 220V/110V 10% 50/60MHZ(optional) |
| Warranty | 1 year |
| Keyboard | Tripod Turnstile steel |
| Working environment | Temperature: -10~+60 |
| Size | 1000*280*1000mm |
| Type | full automatic or semi automatic |
| PASS SPEED | 30-40 Persons/min |
| Drive voltage | DC24V |
| Lane width | <_610mm |
| Net weight | 50kg |
| MCBF | >5.000.000times |
| Access speed | 40 people/min |
| Open Close speed | 0.2sec |
| Rotating Directional | Single and Double adjustable |
| Signal | Dry contract |
| Working environment | Indoor outdoor |
| Temperature | -25 C –70 C |
| Relative humidity | <90% no condensation |
tripod access control Features:
- The turnstile is intended for facilities with high traffic capacity: stadiums, universal sports complexes, exhibition centers, concert halls, cultural and educational institutions, transport facilities, etc.
- Â Full-featured integrated access control software;
- Â The integrated reader is designed to read contactless cards and all types of barcodes;
- Â The interactive screen supports graffic and video display;
- Â Convenient and user friendly management interface + API for connecting an external ACS;
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
