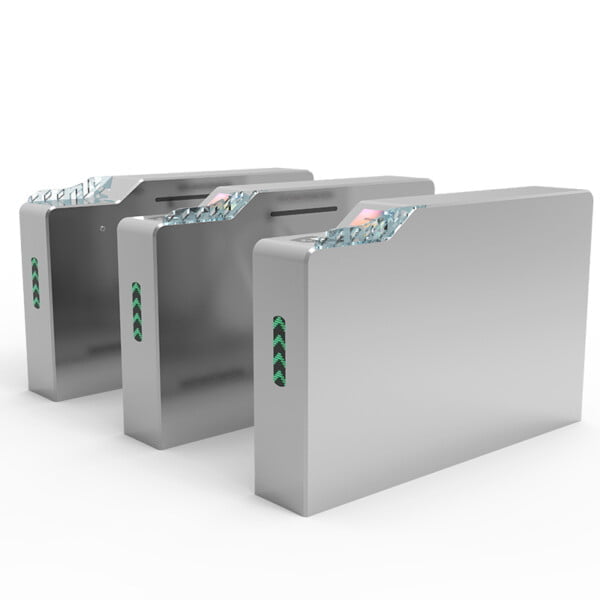

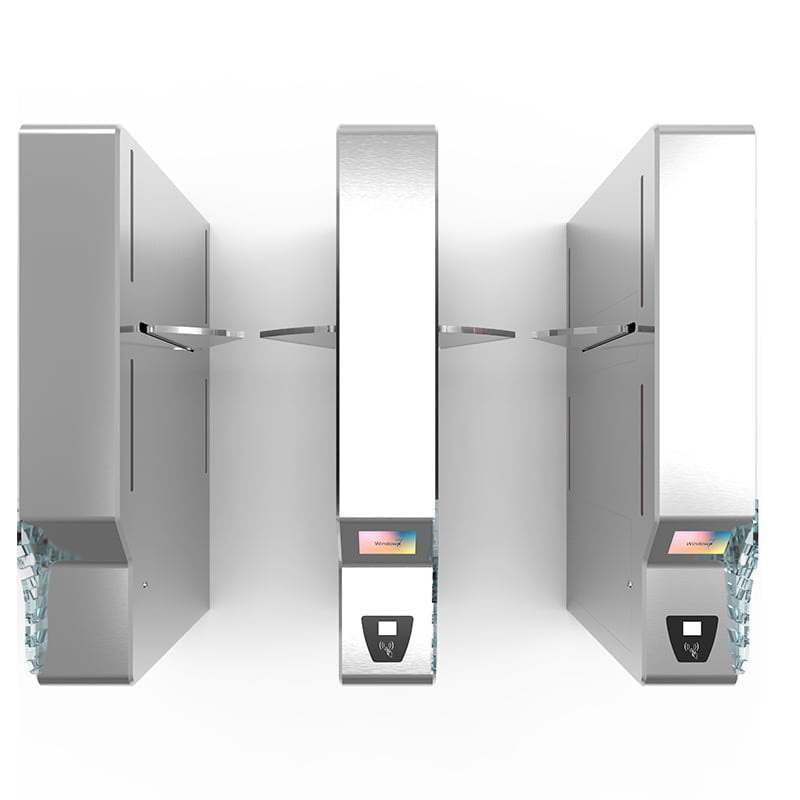

Flap Barrier Turnstile Gate Factory Outlet Metro Station Access Control
In terms of installation, flap barriers are relatively easy to install. They can be placed either in a recessed or surface-mounted position, and they can be powered by either AC or DC power. while flap barriers use a useful tool for controlling access to a building or area, they are not without their limitations. For example, they can be difficult for people with mobility issues to use, and may not be suitable for areas with high traffic.
Product Technical Parameters
Model Number | MR Y352 |
size | 1600*300*1000mm |
Material | SS304 grade stainless steel |
Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
Arm material | Acrylic/Glass 10mm thickness |
Channel width | ≤1000mm |
open gate signal input | Dry contact signals, 232 or 485 commands. |
Unlocking time | 0.2s |
Speed of passage | ≤35p/Min |
Voltage input | 220V, 50H; (support adjustable) |
environmental temperature | -25°C~+70°C |
working environment | Indoor/outdoor (under shade) |
MCBF | ≥5 million |
weight | single core movement: 50KG / double core movement: 70KG |
configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |

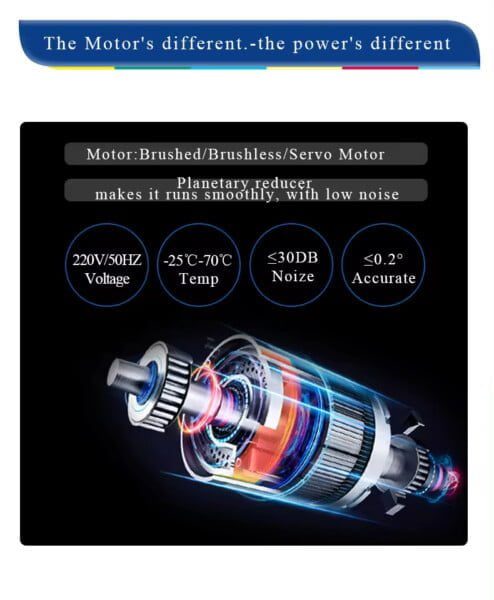

Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
Advantages |
|
Special Functions | 1. power failure open gate or power failure close gate is optional, default power failure open gate 6. Legal passage electronic booster pusher, illegal passage lock clutch. 2. support memory mode, automatic reset, free to set the passage time, support the passage of the completion of the feedback, equipment can be set remotedly more than 10 kinds of flexible configuration of the gate mode; 3. Equipment to support remote control of the pedestrian passage time settings, and real-time feedback settings; 4. Equipment to support the passage of the completion of the feedback, fault active feedback function for the gate failure, can actively upload the fault code, to achieve early warning, easy maintenance; 5. Realize early warning, convenient maintenance; 6. Through the management computer to achieve remote control door single pass open door, multi-pass open door, normally open, normally closed, fire control, return to normal, etc. |
Secondary development |
|
Product features:
- With fault self-checking and alarm prompt function, it is convenient for users to maintain and use.
- The running status of the device can be programmed through the built-in small button on the main control board;
- Mechanical structure, induction dual anti-pinch function, when the telescopic arm encounters resistance during the reset process. it will automatically stop or the motor will stop working within the default time, and reset again after the default delay (until the reset, and the force is very small(<2kg);
- sound and light alarm function: including illegal intrusion and trailing alarm;
- Anti-shock function, the telescopic arm will be automatically locked when it does not receive the opening signal;
- The telescopic arm synchronization function;
- with automatic reset function. the system will automatically cancel the user’s permission for this pass after the gate is opened and the system does not pass within the specified time. The standard is automatic reset 5 seconds after opening;
- The channel is automatically opened after power off. and automatically closed after power on?
- It can be connected to a variety of card readers, and can receive relay switch signals to work;
- one-way or two-way control of personnel entry and exit:
- It can realize remote control and management directly through the management directly through the management computer;
- Extensible function: counting function: lengthened case. material selection of telescopic arm.
Features of barrier:
- waterproof tripod turnstile/flap barrier/full height turnstile, sliding turnstile:
- 304 stainless steel (standard),316 stainless steel optional;
- RFID/RFID card reader, barcode reader, fingerprint machine, face recognition machine, exit button optional
- communication interface: RS485, TCP/IP(Standard)
- standard access control system with software in English is free
The function of our access controller can work with the sliding turnstile:
- can show the records on the TV screen
- show the access records
- personnel location function
- can set the access time(extension function)
- Time Attendance
- Monitor function
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
