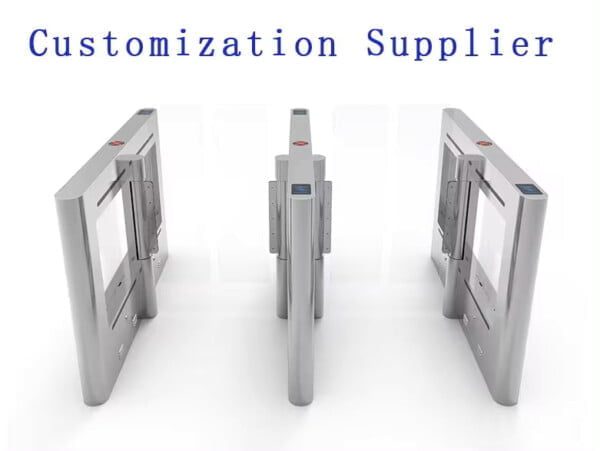

Best Automatic Access Control DC 36v Speed Turnstile Fiberglass Gate
Speed Turnstile Fiberglass Gate is the automatic gates you will find on the stations, office entrances, airports, and also in many other places. It is a device for emergency control. This allows an automatic opening of its two wings while people connect with it with the access cards and closedown in a minute after that.
Features:
- The turnstile is intended for facilities with high traffic capacity: stadiums, universal sports complexes, exhibition centers, concert halls, cultural and educational institutions, transport facilities, etc.
- Â Full-featured integrated access control software;
- Â The integrated reader is designed to read contactless cards and all types of barcodes;
- Â The interactive screen supports graffic and video display;
- Â Convenient and user friendly management interface + API for connecting an external ACS;
- Â High capacity. Instant triggering when a card or ticket is presented;
- Â A two-way intelligent light display module shows the direction of passage and ticket category;
- Â A patended unique anti-panic system-when alarm is triggered, the arms move to the lower position, therby ensuring an unobstructed passage;
- Â A dapted to work in extreme conditions. Outdoor operation is possible both in the conditions of the Siberian winter and the heat, humidity and dust of Qatar.
Product Technical Parameters
| Model Number | MR SPT252S |
| size | 1400*89*1000mm |
| Material | SS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | 220V, 50H; (support adjustable) |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single core movement: 50KG / double core movement: 70KG |
| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |

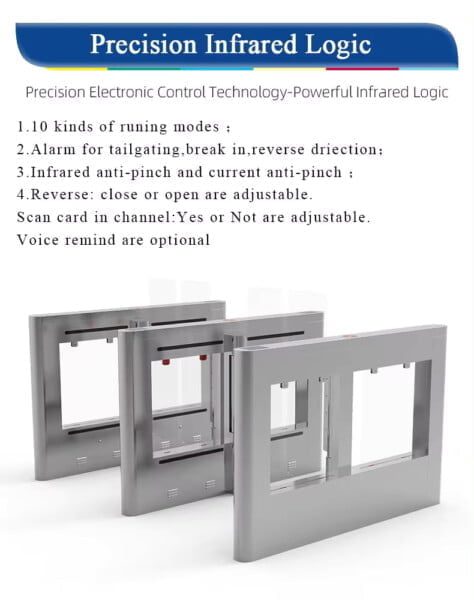

| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Special Functions | 1. support normally open, normally closed, power failure door opening, fire linkage.
2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback; |
| Advantages |
|
| Secondary development | 1. tripod turnstile gates, swing gates, Speed Turnstile Fiberglass Gate, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment;
2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ) |
| patent | patented design products patented movement utility model products |
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
