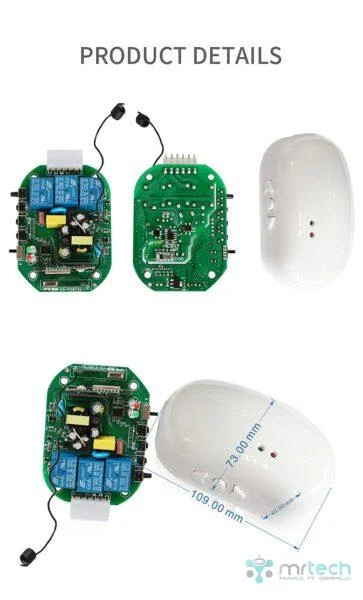

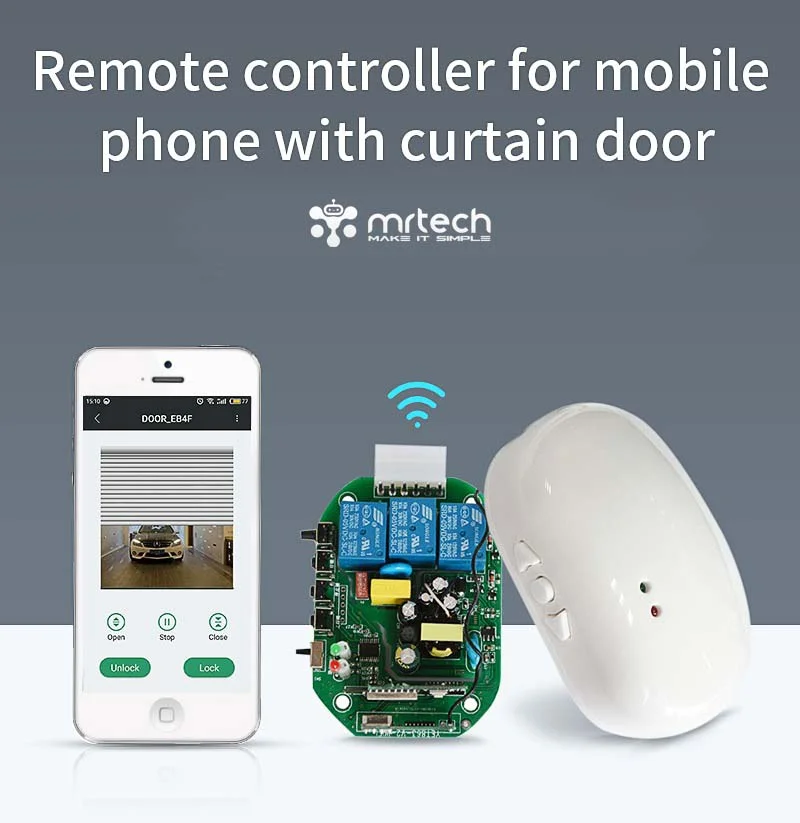

Tubular motor control board 220V input wireless motor controller open stop close for wifi automatic doors
Rolling shutter rolling motor side motor MR SR864-WFR 110V 220V AC It is widely used in garage doors, supermarkets, and other places. High security, stable performance, low power consumption, and easy installation: plug and play, easy to use, safe, and reliable.
Specification:
| Brand | MR TECH |
| Model No | MR SR864-WFR2 |
| Product Name | Tubular Motor Control Board 220V Wireless Motor Controller |
| Motor Type | Side and Tubular Motors |
| Material | ABS / Plastic / Metal |
| Voltage | 110V / 220V AC |
| Operating Current | ≤6mA |
| Channel | 4Channels |
| Frequency | 433mhz / 315mhz |
| Transmit Power | ≥10mW |
| Transmission Speed | 40-60KHZ |
| Frequency Windage | ±0.2MHZ |
| Temperature | -40ºC ∼ +80ºC |
| Sensitivity | ≥-100dbm |
| Code | Learning Code, Rolling Code. |
| Transmission Distance | 100Meters (Open Space) |
| Chip and Operating Mode | Copy code remote control for the motor |
| Package Includes | Receiver Controller, Mobile App, Remotes. |
| Function | Auto-close, OPEN/STOP/CLOSE, Maximum Time Setting, etc. |
| Application | Rolling Shutter Side, Center Motor Operator/ Rolling Doors Tubular Motor Opener |
Include Remote Control Model
| Optional Accessories for WIFI Shutter Motor Receiver | Photo Sensor, Warning Light, RFID, Vehicle LOOP Detectors, Face Recognition, Fingerprint, Bluetooth USB Port. |
Product usage introduction
widely used for electric door control, with functions, such as setting stroke, automatic door closing with delay, bounce upon resistance, over-current detection, limit switch, and other functions. It is widely used in garage doors, supermarkets, and other places
Parameters of Tubular Motor Control Board :
- Working voltage: AC220V
- Contact current – 5A
- Working temperature: -40℃ +80℃
- Working frequency: 433MHz
- Receiver the type of encoding: Rolling code
- Remote control capacity: 15
- Receiving sensitivity: -110dBm
- Size: 122x80x41mm
- Protection class: indoor use only
| Notice | If you want to place an order, please contact the seller, and we will calculate the cheapest freight for you! |
