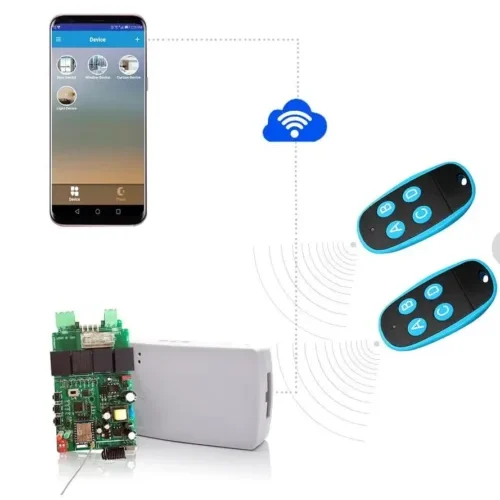

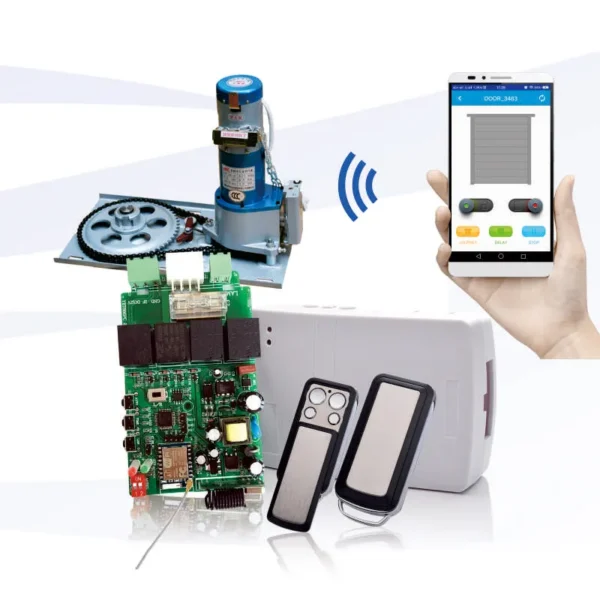

Rolling Shutter Side Motor WIFI Mont roller Receiver Kit
An RF module ( short for radio-frequency module) is a usually small electronic device used to transmit and/or receive radio signals between two devices. Side Motor Roller Shutter WIFI Receiver with Remote Control, in an embedded system it is often desirable to communicate with another device wirelessly.
Specification:
| Brand | MR TECH |
| Model No | MR 966WFR-2 |
| Product Name | Rolling Shutter Side Motor WIFI Mont roller Receiver Kit |
| Motor Type | Electric Side Motor |
| Material | ABS |
| Voltage | AC 220V |
| Contact Current | < 10A |
| Channel | 4Channels |
| Frequency | 433.92 mhz |
| Transmission Speed | 40-60KHZ |
| Temperature | -40ºC ∼ +80ºC |
| Sensitivity | ≥-105dbm |
| Code | Learning Code, Rolling Code. |
| Transmission Distance | 150Meters |
| Static Power Consumption | 1w |
| Package Includes | Receiver Controller, Mobile App, Remotes. |
| Function | Auto-close, OPEN/STOP/CLOSE, Maximum Time Setting, etc. |
| Application | Side Motor Rolling Shutter Garage Door Rolling Shutter Side Motor Operator/ Electric Roller Garage Doors Opener / Direct Drive Shutter Motors |
Include Remote Control Model
| Optional Accessories | Photo Sensor, Warning Light, RFID, Vehicle LOOP Detectors, Face Recognition, Fingerprint, Bluetooth USB Port. |
The function of Rolling Shutter Side Motor WIFI Mont roller Receiver Kit:
- Dual system for 433mhz and WIFI
- Automatic close function: delay time can be adjusted
- Rebound blocked: The door will be automatically closed when blocked, and rotation 3S.
- Automatically measure the stroke: the stroke time is 5 – 255 seconds.
- Setting: RF remote control or WIFI APP both available to set running time, auto-close delay time, and Learning/pair remote control
- Support resistance rebound; Automatically detect journey 250s; can connect alarm lamp (AC110V-240V)
| Notice | If you want to place an order, please contact the seller, and we will calculate the cheapest freight for you! |
