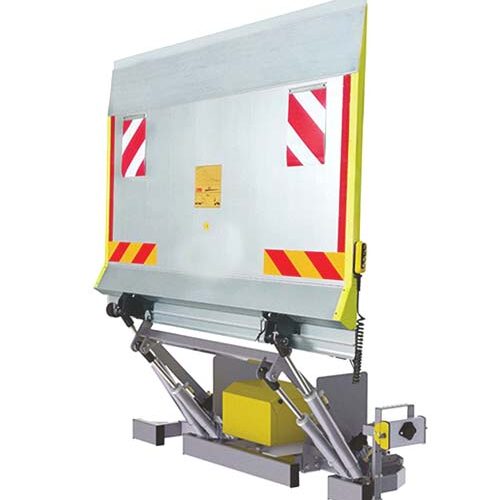

Hydraulic Tailgate 1ton Truck Tail Lift Ramps Steel Loading & Unloading
PRODUCT DETAILS
High Lifting Capacity: Offers a lifting capability of up to 2000 kg, suitable for medium and large commercial vehicles in logistics.
Hydraulic Operation: Features a hydraulic tailgate operated via a power pack for smooth, precise movements during loading and unloading.
Dual Movement Gate: Includes tilt movement from vertical to horizontal and vice versa, plus horizontal ground level adjustment.
DC Power Pack Driven: Powered by a DC power pack connected to the vehicle battery, ensuring ease of use and cost efficiency.
Flexible Installation: Easily fits onto various truck sizes and refrigeration vans without body modifications, enhancing versatility.
Product Description
1. The core components are widely adopted imported technology from England, Italy, U.S. All the main components are using the first class brand at home and abroad.
2. The hydraulic cylinders use a leakproof structure style which is our independently designed patent. It can drastically improve the products’ reliability and stability.
3. More than 80% material uses the high-strength steel sheet (LG600XT, yield strength 650MPa). The structure is lighter and the strength is higher.
4. Bigger adjustment angle. It’s more adaptable to different road situations and working conditions.
5. Less welded parts. The lifting platform structure is cut from one piece of complete steel plate. It can make the structure’s strength and reliability stronger.
6. Further optimizing the hydraulic system, control system, pipeline, circuit, and connection with integrated
technology. The systems are simpler, more stable, and more convenient for installation and maintenance.
Different ton steel aluminum cantilever electric tailgate lift
Tail lifts are an integral part of trucks used in local delivery applications. The products to be transported can be loaded and offloaded easily and safely by lifting and lowering the platform. This reduces manual labor and the risk of injury and damage to the goods.
With 10+ years of experience in hydraulic cylinder production, we produce the main part-hydraulic cylinder by ourselves. also, we can supply a full set of hydraulic tail lifts including the power pack, control box, hand controller, tail-board, rear bumper, etc.
At present, we can supply you the Hydraulic tail lift truck with 1000-2000kg loading capacity as below.
Specification
Mr. Tech Truck Tail Lift CUSTOMIZED AVAILABLE | |||
| Description /Model | 1T/1.5T | 1.5T | 2T |
| Panel Size（Mm) | 1700*1600 | 1800*1600 | 2000*1800 |
| 1800*1600 | 1800*1700 | 2100*1800 | |
| 1800*1700 | 1900*1700 | 2200*1800 | |
| 1900*1700 | It can be made according to the width of the carriage | ||
| Rated Capacity(Kg) | 1000 | 1500 | 2000 |
| Product name | Hydraulic tail lift for small cargo truck 1000kg Heavy Truck Spare Parts | ||
| Average Lifting Speed(Mm/S) | 60-80 Speed is adjustable | ||
| Net Weight(Kg) | 330 | 380 | 450 |
| Motor Power(Kw) | 2 | 2.0/2.2/2.5 | 2.0/2.2/2.5 |
| Motor | DC12V-24V/100AH-160AH | ||
| Bracket Arm Length(Mm) | 600/750/800 | 600/750/800 | 600/750/800 |
| Bracket Inner Width(Mm) | 900/1020 | 900/1020 | 900/1020 |
| Applicable Carriage Ground Height(Mm) | 700-1550 | 700-1550 | 700-1550 |
| Open And Close Speed(Mm/Sec) | 10 | 10 | 10 |
| Hydraulic Oil | 32#/46# Antiwear hydraulic oil | ||
| Usage | Tail Gate for Truck, Van, Cargo Pickup | ||
| Material | Steel/Aluminum | ||
| Working Inclination | 5°-9° | ||
FAQ
1. What are your terms of shipping method?
Generally, we ship our truck body CKD(completely knocked down) or SKD(semi knock down) by container, assembled truck by container
too, but then it is a small quantity
2. Our truck is a Korean or Japanese brand, your truck body fit it?
Of course, Generally, global light trucks can be divided into 10ft,11ft,12ft,14ft,15ft,16ft, and 18 feet in terms of the cargo box
length, the middle truck has 20-32ft length,
The truck body can be combined with different brand trucks simply by adjusting the distance of the beam.
3. Is it difficult to install Truck body CKD or SKD?
My company has ten years experience in exporting truck body. We can provide the truck body ckd of easiest assemble
4. Why should you buy from us and not from another supplier?
In the past 10 years, Our company only makes truck bodies. We are more professional for truck bodies.
