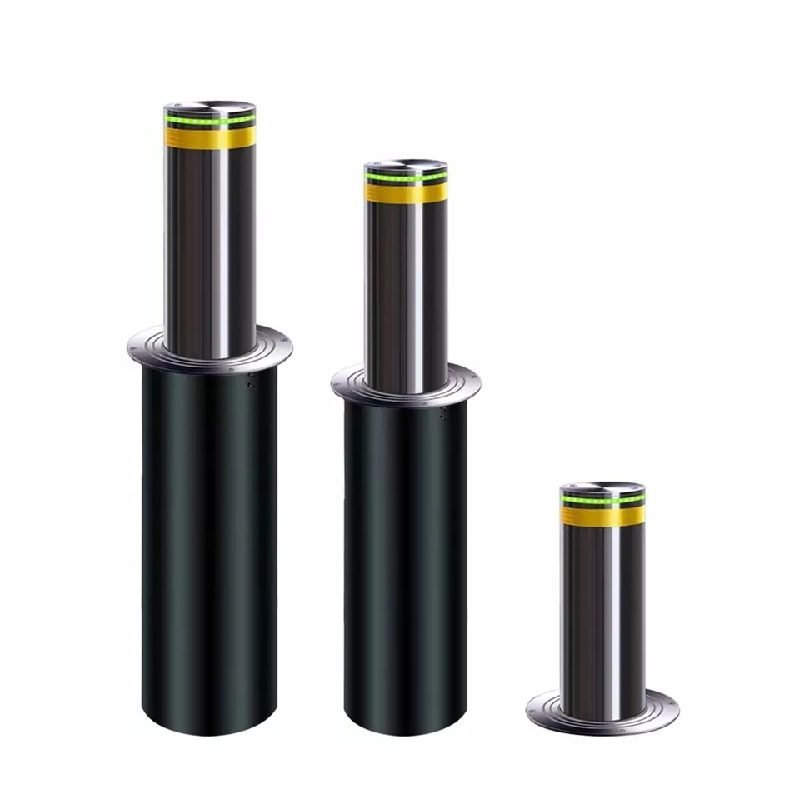

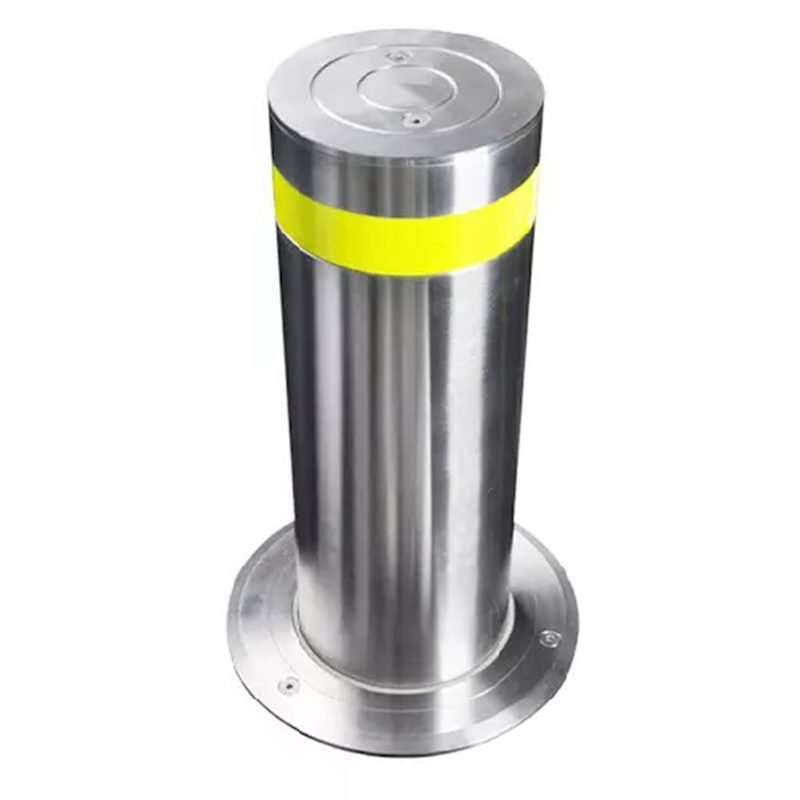

Hydraulic Automatic Rising Bollards MR-AB600


The system prevent access to unauthorized vehicles by rising and collapsing by Automatic Rising Bollards with sensors or traffic management systems MR-AB600.

Hydraulic Automatic Rising Bollards MR-AB600

NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!

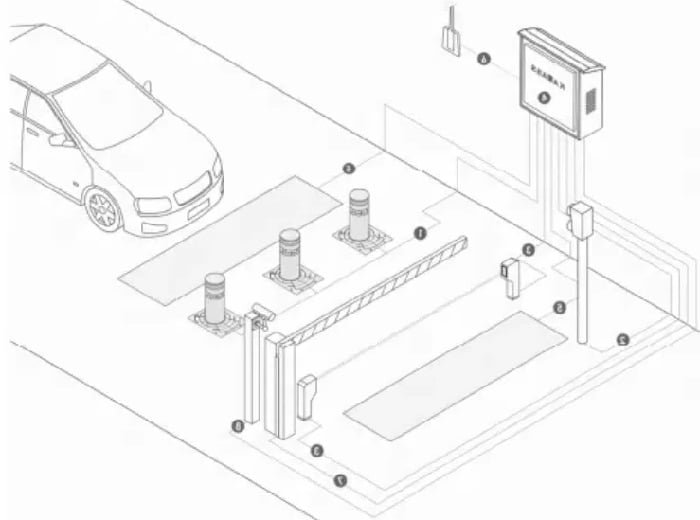

Hydraulic automatic bollard mainly consists of oil pump unit and steel frame construction. It use soil pressure as dynamic to realize the rise/fall of bollard. As a moving device, it is usually installed at vehicle entrance/exit. It rises to block the vehicle and falls the ground level to authorize free passing.

The rising bollards system is designed to bring convenience and enhancements to higher-level security. It is an ideal choice for universities, pedestrian sidewalks, parking lots, government buildings, gyms, amusement parks, airports, shopping centers, hospitals, and occasions with high traffic flow.

Hydraulic Automatic Rising Bollards MR-AB600 Technical Specifications

Specification:

Brand MRTECH
Model NoMR-AB600
Product NameHydraulic Automatic Rising Bollards

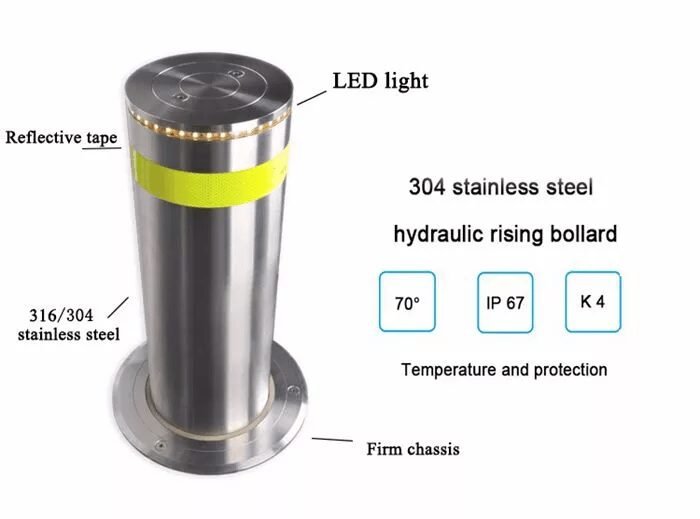

Material304 Stainless Steel
Power Supply220v/380v
Lamp BeltLED lamp (Acrylic light circle)
Thickness6∼10mm Customized Thickness
Height1105mm, Customized Height
Rising Height600mm
Diameter275/220mm
Raising /Lowering Speed3∼6s (adjustable)
Working Temperature-30ºC∼+75ºC
System ControlHydraulic and Electric Control
Remote Control Range<50m
Weight140KG
Protection ClassIP68
MOQ3set
Applicationuniversities, pedestrian sidewalks, parking lots, Shopping Centers, etc.

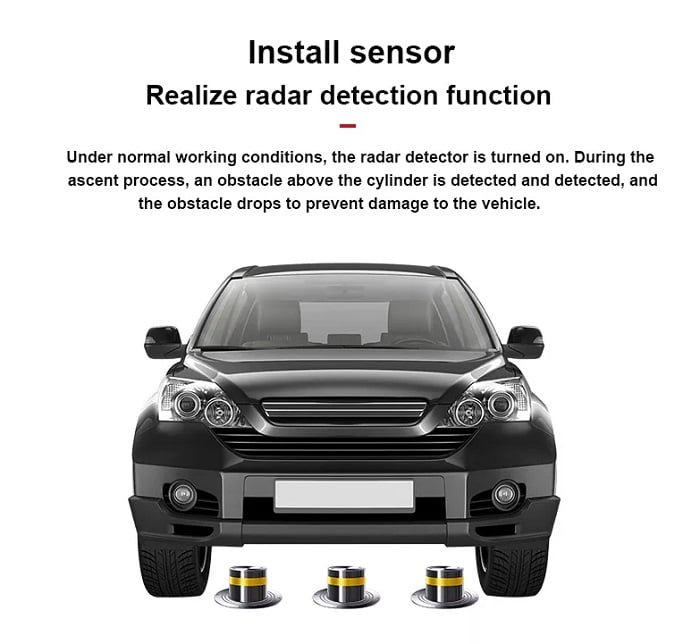

Optional Accessories for Automatic Rising BollardsPhoto Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port.

Hydraulic Automatic Rising Bollards MR-AB600 Technical Specifications

Hydraulic Automatic Rising Bollards MR-AB600 Technical Specifications

Advantages of Hydraulic Automatic Rising Bollards

  • We have Motor and Hydraulic pump embedded, with 220V voltage supply, it is buried at underground and has no effect on the ground surface. It has waterproof function with high efficiency.
  • Embedded parts on the periphery of the product, holes created at the bottom for drain function. After the trench excavating and waterproof treatment, the embedded parts can be applied.
  • Stable, and long using life, over 10 years of using life, much more beneficial compared with traditional electric and pneumatic bollard.
  • Using Steel track, which is helpful to maintain the ability of anti-crash, while increasing the weight of products itself and even stabling the embedded part at underground.
  • Stainless Steel Material, with enhanced hydraulic system, the product is reaching 160kg. Damage prohibited even crash happens. High satisfaction rate from customers.



Hydraulic Automatic Rising Bollards MR-AB600 Technical Specifications

Hydraulic Automatic Rising Bollards MR-AB600 Technical Specifications

Hydraulic Automatic Rising Bollards MR-AB600 Technical Specifications

Hydraulic Automatic Rising Bollards MR-AB600 Technical Specifications



NoticeIf you want to place an order, please contact the seller, we will calculate the cheapest freight for you!
Brand MRTECH
Model NoMR-AB600
Product NameHydraulic Automatic Rising Bollards
Material304 Stainless Steel
Power Supply220v/380v
Lamp BeltLED lamp (Acrylic light circle)
Thickness6∼10mm Customized Thickness
Height1105mm, Customized Height
Rising Height600mm
Diameter275/220mm
Raising /Lowering Speed3∼6s (adjustable)
Working Temperature-30ºC∼+75ºC
System ControlHydraulic and Electric Control
Remote Control Range<50m
Weight140KG
Protection ClassIP68
MOQ3set
Applicationuniversities, pedestrian sidewalks, parking lots, Shopping Centers, etc.
Optional Accessories for Automatic Rising BollardsPhoto Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port.
