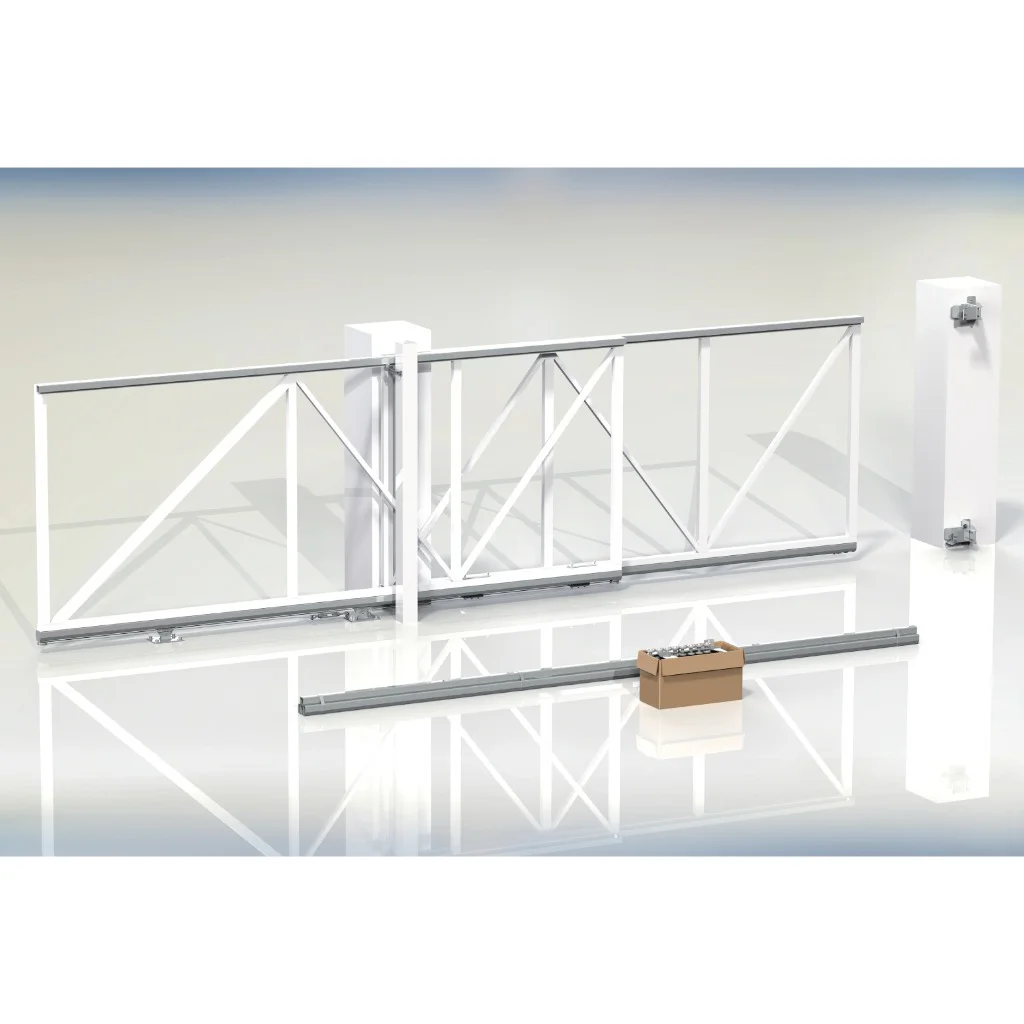

8mtr Trackless Twinned Telescopic Cantilever Sliding Gate Hardware Kit
Why Telescopic Cantilever Hardware
The most popular type of sliding gate, when space to open is limited, is a two-panel cantilever sliding gate with one panel stacked in front of the other, commonly known as TELESCOPIC CANTILEVER GATES
How Telescopic Cantilever Hardware Work
The back gate panel is driven by motor like a single-panel sliding gate is. A two track cantilever telescopic drive mechanism then drives the front gate from the back using a wire rope that wraps around the bottom rail connecting to the ground at one end and the front gate at the other end. There is a sheave (like a pully but for wire rope) fitted to each end of the bottom rail…
As the back gate opens the wire rope pulls the front gate panel along by twice as much as the back so it travels at double the speed and goes twice as far ending up directly in front of the back gate when open. The same occurs with the second half of the wire rope when closing.

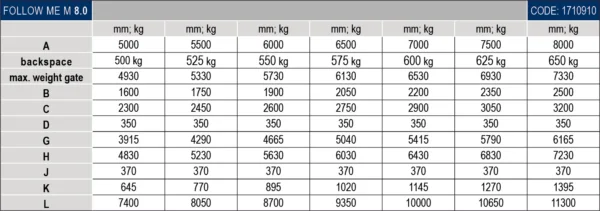

Product Details:
| Brand | MR. TECH |
| Model Number | MR TCH8M |
| Material | Mild Steel GI coding |
| Usage/Application | Automate trackless triple telescopic cantilever hardware |
| Weight | Capacity – Upto 300 Kg to 800kg |
| Finishing | 270g/m2 Hot Dipped Galvanized |
| Product Code | Telescopic Cantilever Gate Hardware Kit |
The 8mtr Trackless Twinned Telescopic Cantilever Sliding Gate are used when there is no room for the traditional sliding or a swing gate or for architectural effect. According to building experts, the cantilever telescopic gates are considered as “one of the top ten most overlooked items when many architects and builders plan a home“.
