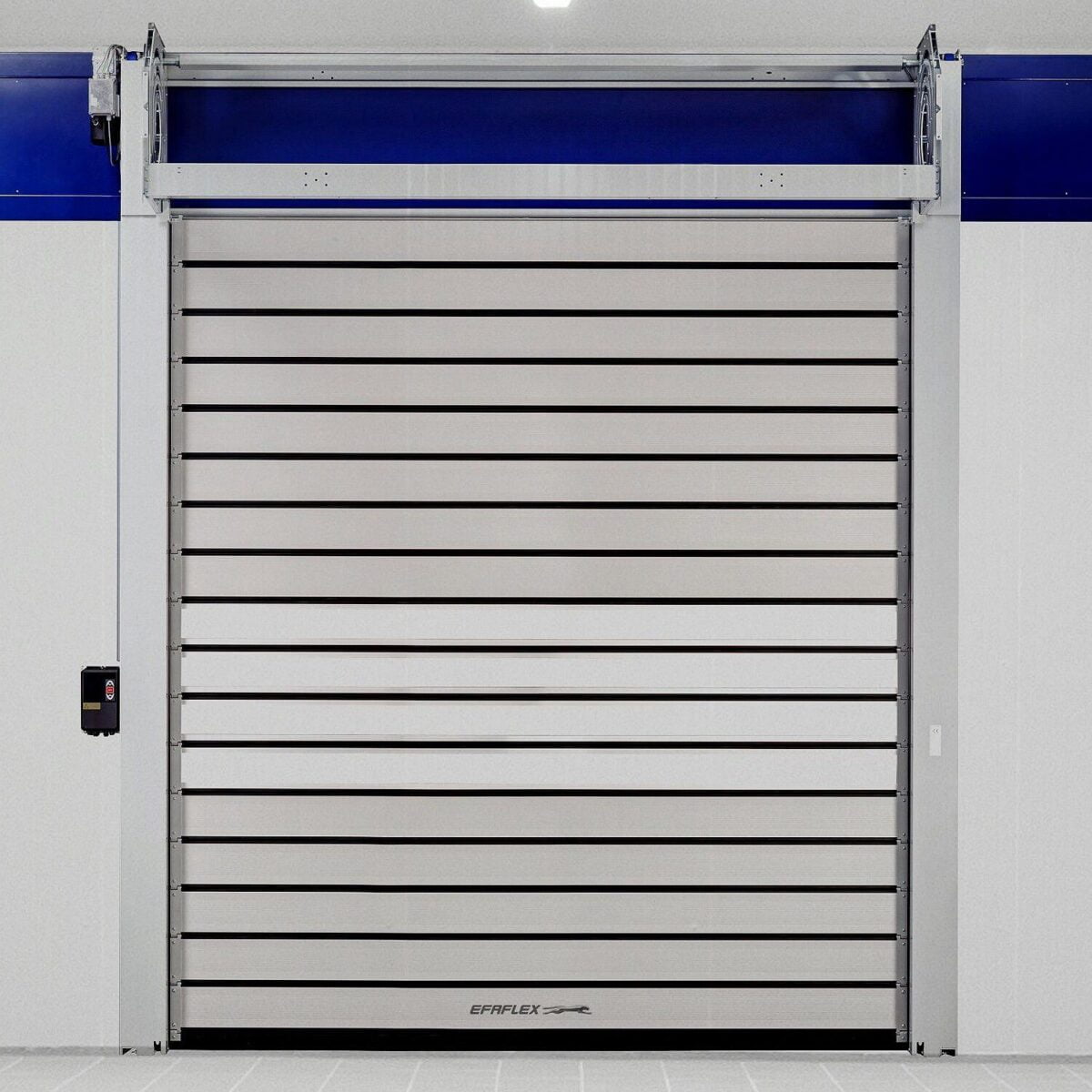

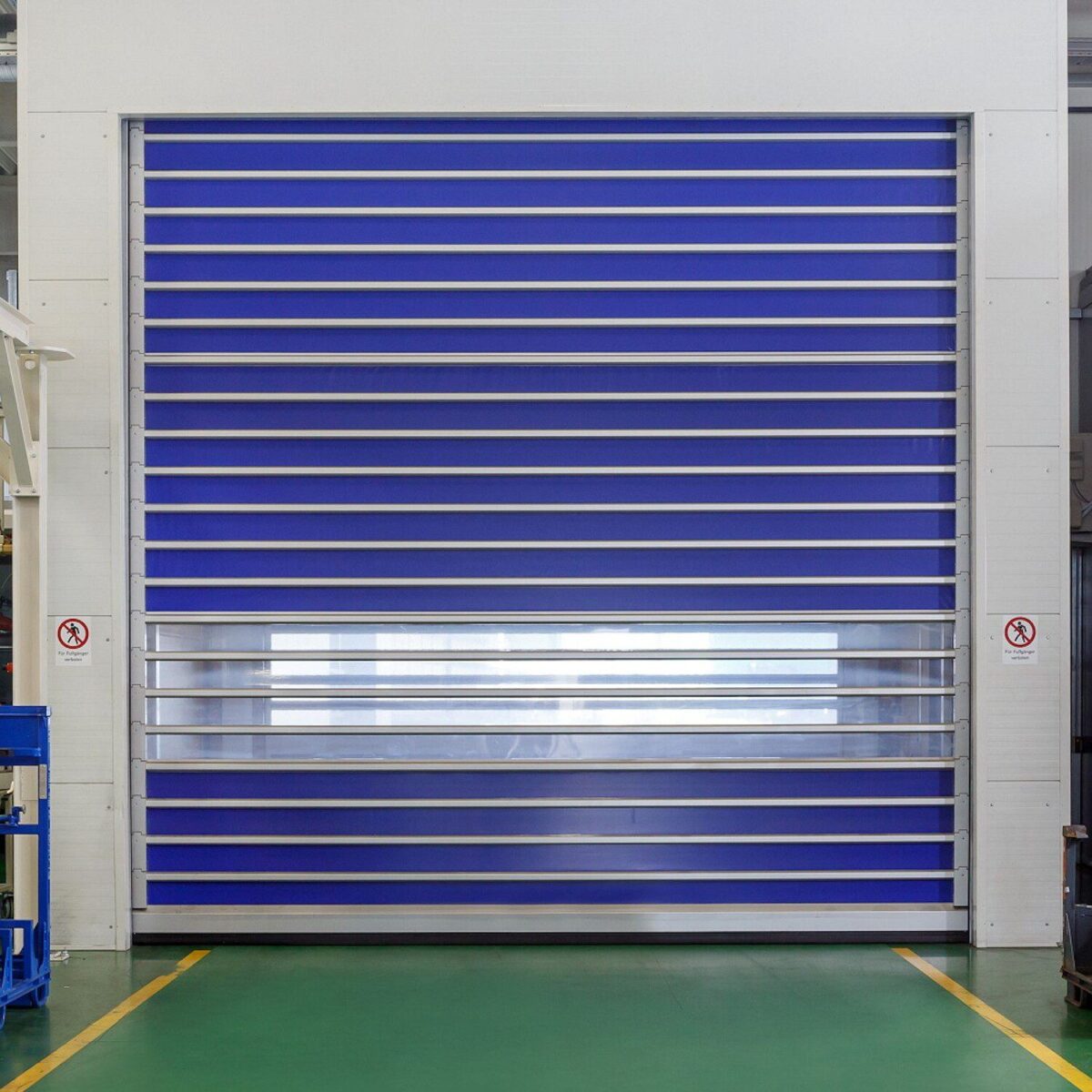

Rapid Shutter Door
High-speed doors optimize the flow of traffic, improve room conditions, and save energy. The range includes both vertically and horizontally opening transparent doors with a flexible curtain. They are available in combination with sectional doors and rolling shutters, as well as with service-friendly spiral doors with smooth aluminum profiles. Rapid Roller Shutter Doors also come with a powerful frequency converter control (FU) as standard, which considerably extends the lifespan of the door’s working parts.
Our Rapid Shutter Doors come in many different types. Some are great for cold storage and others are for warehouses. Whatever your needs might be. if you want a high-speed door that’s reliable and tough, then ultratough is the right option to go with. This Rapid Shutter Door will protect your product loads from high winds as well as keep the facility clean and not contaminated. When energy loss occurs, there are durable doors and last opening speeds as well as reliable operations to maintain the workflow.
Specification:
Brand | MR TECH |
Model No | MR-RSGD139 |
Product Name | Rapid Shutter Door |
Open Style | Roller Shutter |
Material | Aluminum Alloy |
Size | Various types of sizes Available Customer Requesting |
Color | White, Black, Silver, and Costumer Requesting colors are Available |
Surface Treatment | Hot-dip, Galvanized, Powder Coated |
Width Min./Max. | W: 1000/ 9000mm |
Height Min./Max. | H: 1000/8000mm Larger Dimension on request |
Open Speed | 0.6m/s~1.8m/s [Adjustable] |
Close Speed | 0.6m/s [Adjustable] |
Standard Thickness of door panel | 44mm |
Thermal insulation of door panel | K≤1.5W/(m²·K) |
Finishing | Anodizing + organic coloring |
Wind load resistance | 32m/s(≤12F) |
Working Voltage/frequency | 380v/14a/50Hz |
Opening/Closing speed | 0.8m/sec to 1.5m/sec with VFD |
Opening Direction | Vertical |
Drawing Design | According to Your request |
Optional products | Manual, Semi-Automation, Automatic. |
Application | Residential, Industrials, Commercial, etc. |
Optional Accessories for Rapid Shutter Door | Photo Sensor, Flashing Light, Bluetooth Controller, Wi-Fi mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port. |
Aluminum high-speed door, as a new-type metal industrial door, combines the features of high efficiency, insulation, energy saving, security, wind resistance and environmental protection. The opening speed is up to 1.8m/s, making the product applicable for indoor and outdoor logistics channels requiring frequent high-speed traffic.
Benefits of Rapid Shutter Door:
- Quickly minimize the loss of heat and restrict sound flow.
- Suitable for both commercial and industrial environments.
- Cost efficient, faster material handling, and more secure.
- Reduce the chance of impact damage.
- Space-saving design.
- Cleaning of door curtains is very easy.
- Use of the latest technology for Automation.
Roller Shutter Doors are designed to open and close at high operating and reliability in a commercial and industrial/ storage setting, where maintaining controlled environments and airflow is a top priority. Choosing a suitable door needs very careful consideration, and it is important to know how to use them and their specific characteristics to determine the best design for your on-site needs.
Product advantages
Fast and reliable:
Applicable for internal and external busy logistics channels
Long service life
Space saving
The product takes up only a small ceiling space, and it will not hinder the installation and arrangement of pipelines and equipment including fire-fighting pipelines, cables and wires, and air pipes.
The motor can be concealed in the side frame with a small footprint.
Energy saving
The door panel has excellent thermal insulation.
Insulation sealing strips are used between the door panels and on the trackside so that the optimal insulation effect can be achieved.
High safety performance
The product is equipped with multiple protection devices including an infrared safety protection sensor, airbag, and resistance rebound device, which greatly improves the safety performance of hard rapid rolling shutter doors.
Notice | If you want to place an order, please contact the seller, and we will calculate the cheapest freight for you! |
