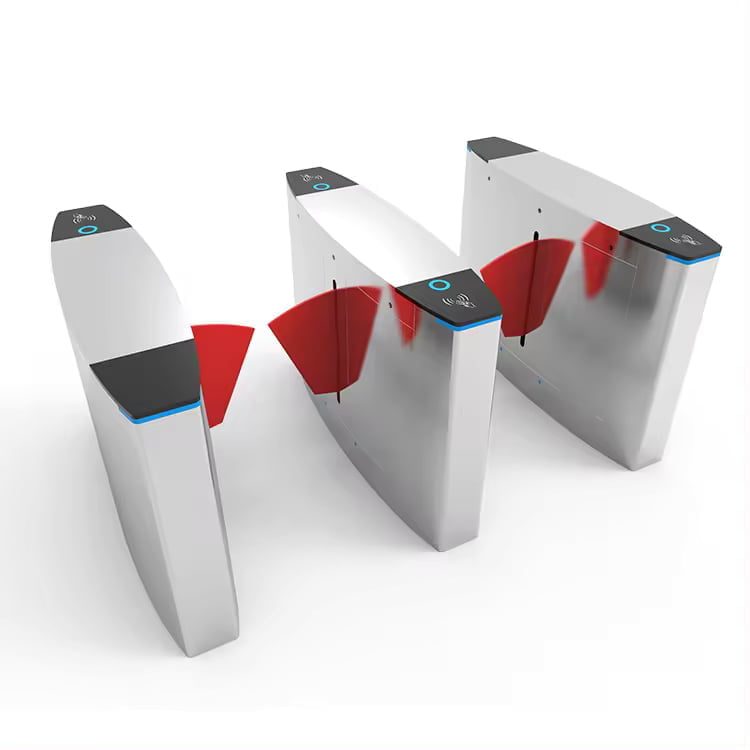

New Flap Barrier Turnstile Security for Supermarket
SLIDING TURNSTILE is constructed to control people entering or existing the restricted area. It is usually used in high pedestrian traffic low locations in both directions. The sliding barrier turnstile gate casing is made of brushed 304 stainless steel which creates a seamless and nice entrance system to blend into most indoor environments.
It can be integrated with all third-party access control systems(e.g.: RFID access system, push the button, fingerprint and face recognition with temperature check) In case of emergency, the sliding Turnstile arm will open automatically connecting with the battery or capacitor to allow free passage.
The optical sliding turnstile is suitable for luxury and elegant solutions. The sliding gate turnstile features fast speed, long life, high performance, and high operation dependability. Alarm function, in case of illegal intrusion and reverse intrusion. The infrared sensor will alarm and the LED light will flash to prevent pinching pedestrians.
Automatic reset function: New Flap Barrier Turnstile Security sliding arms will close automatically within 5s in default(can be set)if a passenger delays to The sliding gate turnstile will stay in the lock if someone wants to burst in without swiping the RFID card. An LED directional indicator on the top and front post casing Material: 304 stainless steel Anti-reverse function,
the turnstile alarms if someone wants to enter in the reverse direction. Bi-direction or single-direction running are options we can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. please refer to the below for details.
Product Technical Parameters
| Model Number | MR Y248F |
| size | 1400*300*1000mm |
| Material | SS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | 220V, 50H; (support adjustable) |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single core movement: 50KG / double core movement: 70KG |
| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Advantages |
|
| Special Functions | 1. power failure open gate or power failure close gate is optional, default power failure open gate 6. Legal passage electronic booster pusher, illegal passage lock clutch. 2. support memory mode, automatic reset, free to set the passage time, support the passage of the completion of the feedback, equipment can be set remotedly more than 10 kinds of flexible configuration of the gate mode; 3. Equipment to support remote control of the pedestrian passage time settings, and real-time feedback settings; 4. Equipment to support the passage of the completion of the feedback, fault active feedback function for the gate failure, can actively upload the fault code, to achieve early warning, easy maintenance; 5. Realize early warning, convenient maintenance; 6. Through the management computer to achieve remote control door single pass open door, multi-pass open door, normally open, normally closed, fire control, return to normal, etc. |
| Secondary development |
|
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
