Door Motor, Automatic Door Motor

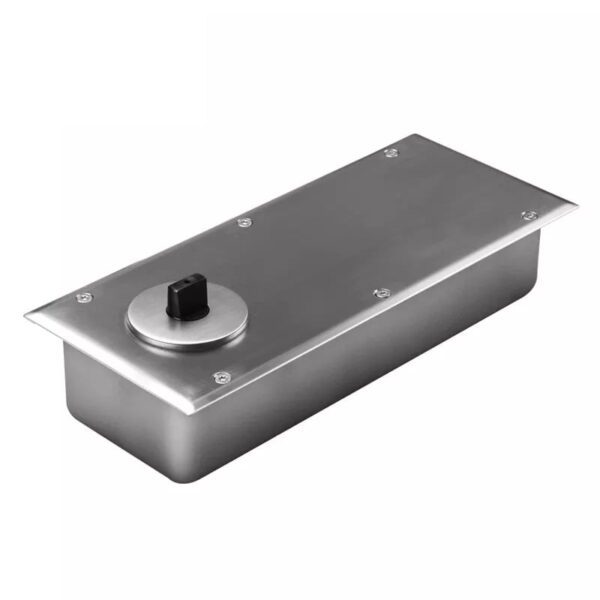

Floor Spring Ground Swing Door Motor MR-SDM180
The controller has a display debugging interface, which is simple to operate and set the parameters, it’s equipped with various function ports such as microwave sensor and electric lock.
Floor Spring Door Closer in-Ground Swing Door Motor MR-SDM180
| Notice | If you want to place an order, please contact the seller, we will calculate the cheapest freight for you! |
A floor spring ground swing door motor is a type of motor that is used to automate the opening and closing of a swing door. It is mounted on the floor and attached to the door at the base , near the hinges. The motors works by applying force to the door through the use of a spring mechanism, which allows the door to be opened and closed with minimal effort. The motor can be controlled by a variety of methods, such as push button, a remote control or a sensor.
What is Floor Concealed Door Closers?
The overhead or floor-mounted concealed door closer is a very common type of door closer mechanism which is normally unseen and unnoticed. Some concealed closers only allow single directional control for opening and closing to a fixed point or door stop.
Specification of Floor Spring Ground Swing Door Motor:
| Parameter | Description |
| Model No | MR-SDM180s |
| Maximum Door Weight | 180KG |
| Maximum Door Width | 1200mm |
| Maximum Torque | 165Nm |
| Noise | <60dB |
| Opening and closing time | 6 – 12S |
| Open Range | 86º∼95º |
| Power Supply | AC220V±10% 50/60Hz |
| Rated Power | 55W |
| Special Machine power | <2W |
| Operating Temperature | -20ºC∼55ºC |
| Protection level | IP68 |
| Control box size | 156 x 120 x 46mm |
| Unit size | 320 x 110 x 70mm |
| Unit weight | 9.25kg |
Features:
Floor Spring Ground Swing Door Motor has several features, its strength and performance are worthy.
- High load capacity Door weights up to 180 kg
- Brushless Dc motor small Size, strong power
- Strong Waterproof performance IP68
- One Way, Two way 2 in 1
- Opening the Door 90/ 180 Degree
- Safety sensor
- Integrated molding box. Thickened stainless steel panel, Anti rust, anti-corrosion, not easy to be deformed.
| Notice | If you want to place an order, please contact the seller, we will calculate the cheapest freight for you! |
| Parameter | Description |
| Model No | MR-SDM180s |
| Maximum Door Weight | 180KG |
| Maximum Door Width | 1200mm |
| Maximum Torque | 165Nm |
| Noise | <60dB |
| Opening and closing time | 6 – 12S |
| Open Range | 86º∼95º |
| Power Supply | AC220V±10% 50/60Hz |
| Rated Power | 55W |
| Special Machine power | <2W |
| Operating Temperature | -20ºC∼55ºC |
| Protection level | IP68 |
| Control box size | 156 x 120 x 46mm |
| Unit size | 320 x 110 x 70mm |
| Unit weight | 9.25kg |
There are no reviews yet.
