Automatic Sliding Door Operator MR-SDO150

Automatic Sliding Door Operator MR-SDO150

Easy-to-customize, aesthetically pleasing, state-of-the-art doors for retail, industrial, commercial, education, and healthcare buildings. All of our components are fully tested for fast, trouble-free installation and reliability.

Security Options & Features

Enhance your building’s safety and security with these security options and features, which are available on most automatic doors:

1. Delayed egress
2. Uninterrupted Power Supply (UPS)
3. Recessed panic release
4. Lock guard
5. Armored strike
6. Security strobes
7. Full or partial breakout for emergency egress

Automatic sliding door opener with sensor

• The main controller adopts dual chips for coordinated operation, with built-in automatic calibration, which can accurately detect the position of the light and heavy doors and calculate the automatic speed regulation, and the working performance is more stable and reliable.
• All digital element type computer controller systems, with good anti-interference, stable operation, low noise, gentle walking, and stable parameters.
• With Power on Self-test and Automatic reset function, accurate positioning, and high efficiency.
• The DC servo motor, which has the function of an electric lock, and the access control effect can be achieved without an additional mechanical lock.
• The precise manufacturing process and worn gear transmission structure make the motor run quietly, greatly improving the driving torque and transmission efficiency.
• The motor adopts a step-less variable speed drive to operate at a constant speed and stably, effectively reducing the operating noise

Specification:

Sliding Door Glass Operator

Features of sliding door operator :

1. Microcomputer intelligent control, advanced machinery manufacturing.
2. Adjust door-leaf status automatically, and can manually adjust it if necessary.
3. Low noise, sliding smoothly.
4. Brushless DC servo motor for Sliding Door Operator, long service life.
5. Interlock; Electric Lock; Compatible with access control system.
6. Can hold Max. 300KG Door-leaf
7. Easy Installation.

automatic sliding door installation manual pdf

Automatic door controller parameter adjustment instructions

TEST: It is the test button for opening the door. Press it once to complete the opening action.
DRP is the power indicator light, which is always on when the power is on.

• It is a switch for the left and right door opening. When double opening the door, the switch is set to the right.
• When it is set to the left, it is always open when the sensor is detected, and it is always closed when it is detected again. When it is set to the right, it is automatically closed after being opened.
• When it is set to the left, the door will operate normally after the power is cut off; when it is set to the right, the back door will always be open when the power is cut off (the backup battery is connected)
• To adjust the door opening speed, turn counterclockwise to decrease the door opening speed and clockwise to increase the opening speed.
• To adjust the slow travel distance for opening the door. Turn counterclockwise to reduce the slow travel distance for opening the door. Turn cock-wise to increase it.
• To adjust the door closing speed, turn counterclockwise to decrease the door closing speed, and turn clockwise to increase the door closing speed.
• Adjusts the door closing slow travel distance. Turn counterclockwise to decrease the door’s closing slow travel distance, and clockwise to increase it.
• To adjust the slow speed, turn counterclockwise to decrease the slow speed, and turn clockwise to increase it.
• Adjustment of the door opening dwell time. Turn counterclockwise to reduce the door opening dwell delay, and clockwise to increase it.

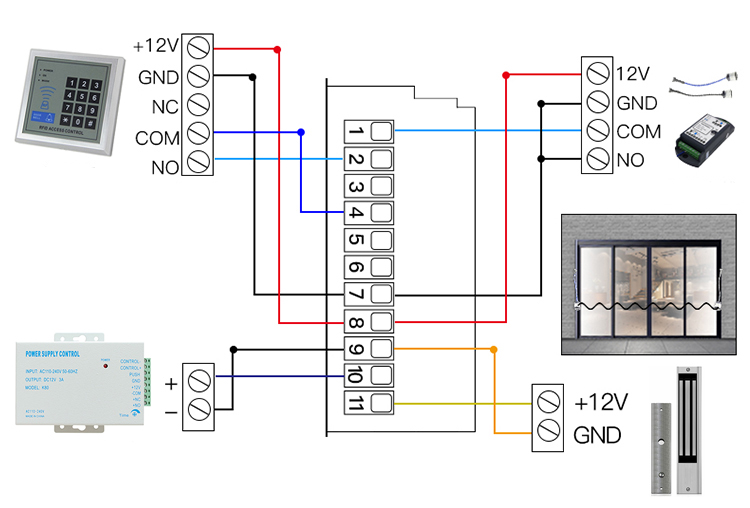

Optional Access Controller
