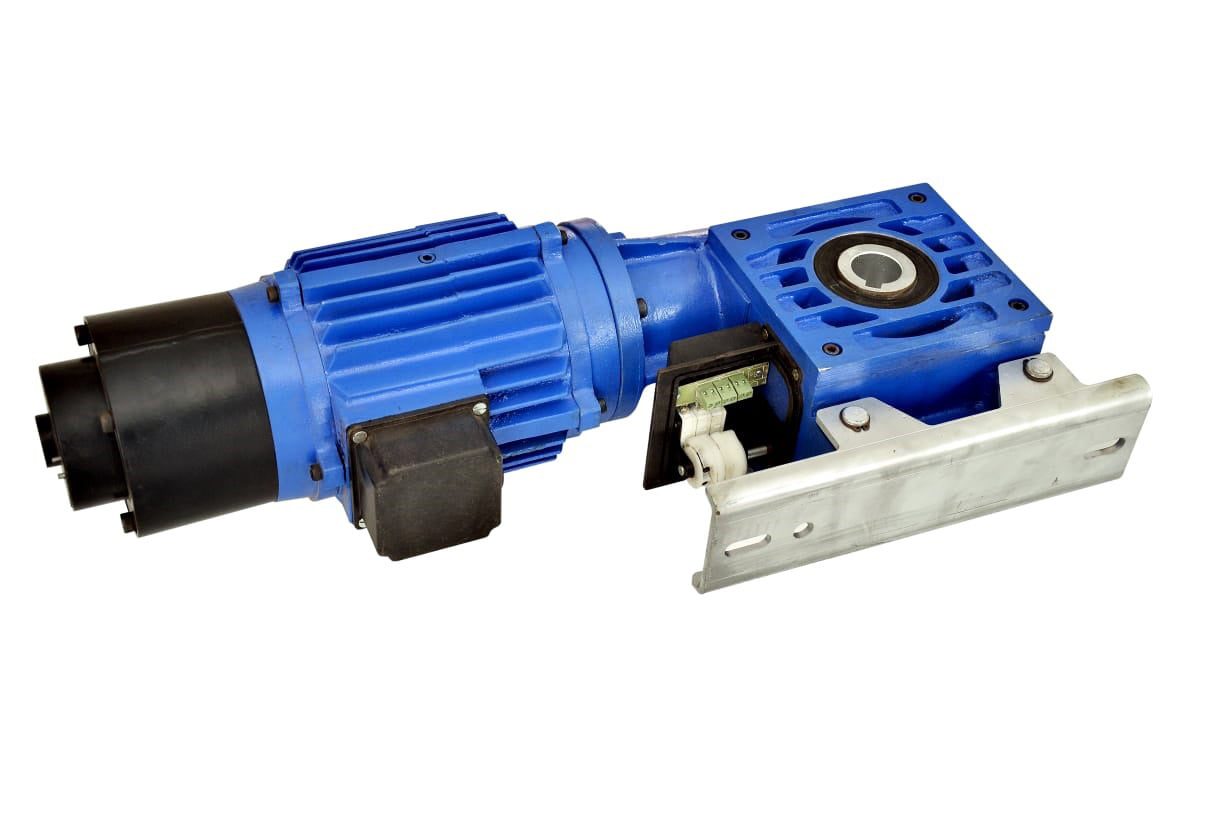

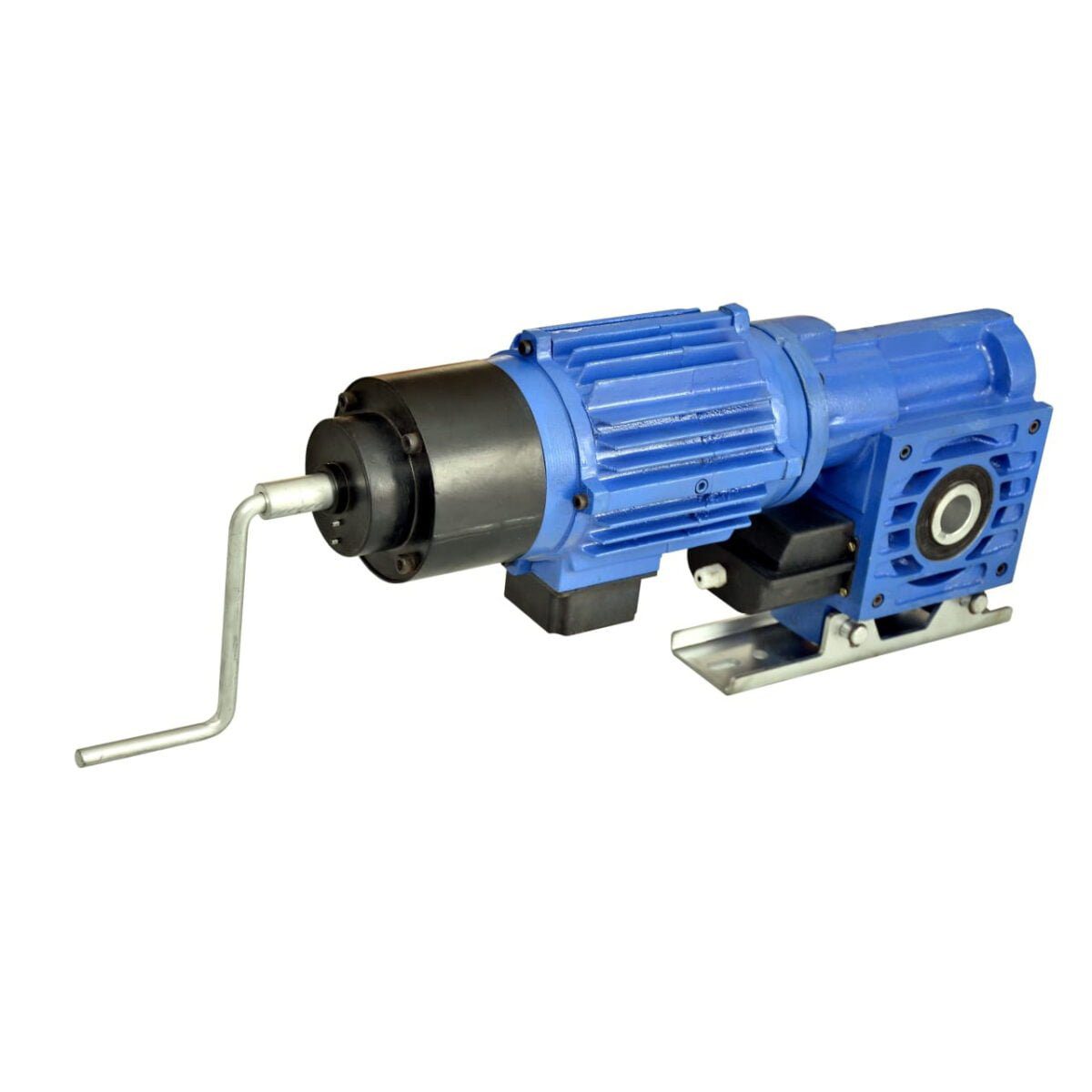

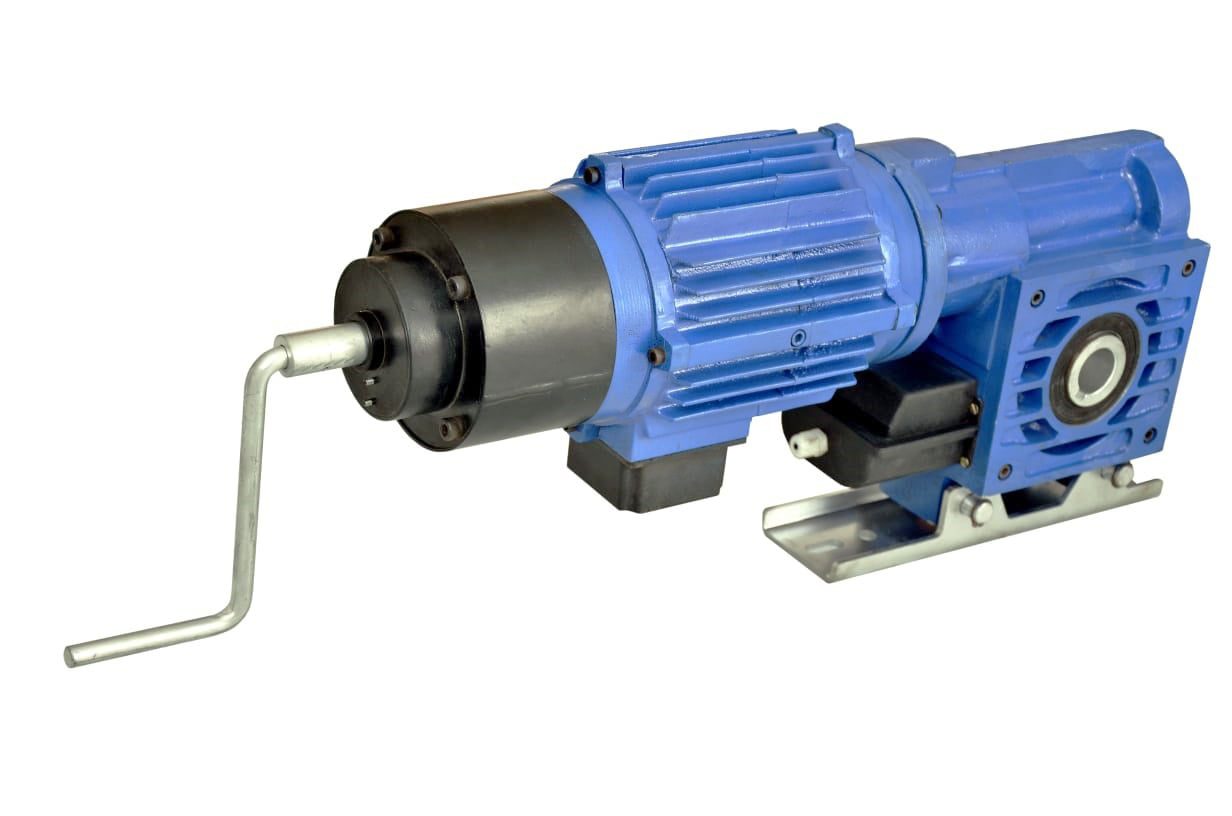

Complete Direct Drive Shutter Motor for Industrial Shutters
Owing to the presence of our expert team members, we have been able to offer a wide range of Rolling shutter Gear operators. These are available with us in various technical specifications and range as per the precise demands and requirements of clients.
Benefits of Direct Drive Rolling Shutter Motor:
Rolling Shutter Gear Motor Operators are the next step in mechanical development. They are made up of a gearbox that is directly attached to the motor. This eliminates the need for a motor adapter and coupling since the motor pinion meshes directly with the high-speed gear in the gearbox. Eliminating these additional components results in a lighter, more compact solution, as well as fewer worn components, resulting in less maintenance for you and your team.
Direct Drives for Industrial Shutters & Doors

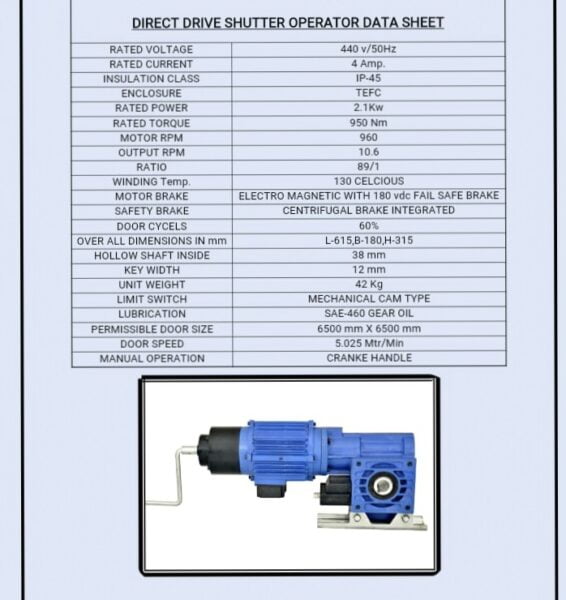

| ITEM | DESCRIPTION |
| Brand Name | MR. TECH |
| Model Number | Gear Motor MR-RSGM1200 |
| Type | Direct Drive Shutter Motor |
| Name | Gear Motor, Wall Mount Shutter Motor |
| Usage | Garage, Shutter |
| Material | Mild Steel |
| Mounting Type | Wall Mounted |
| Voltage | 230V |
| Frequency | 60Hz |
| Continued Working Time | 10Mins |
| Max. Lifting Height | 15-20Feet |
| Winding | Copper |
| Gear Drive Type | Helical Spur Gears |
| Weight Capacity | 1200Kg |
| MOQ | 3 Set |
| Application | Residential, Commercials, Industrials |
A geared motor has several other advantages. Let’s go through the top benefits of using a geared motor.
- Overworking for a short time.
- Built-in Control panel.
- Overheat Protection.
- Limit Switch Unit enables precise adjustment of door in UP and Down positions.
- Electric and manual operations.
- The Shutter Gear Operator has Both sides of manual operation in case of power Failure.
- Key type and Push button extension possible.
- Smooth Noiseless Function.
- Safety Protection Sensor
| Optional Accessories | Bluetooth Controller, Wi-Fi mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Lock box with key. |
