    Description

    304 Stainless Steel Coat Sliding Barrier Gate for Indoor Lobby

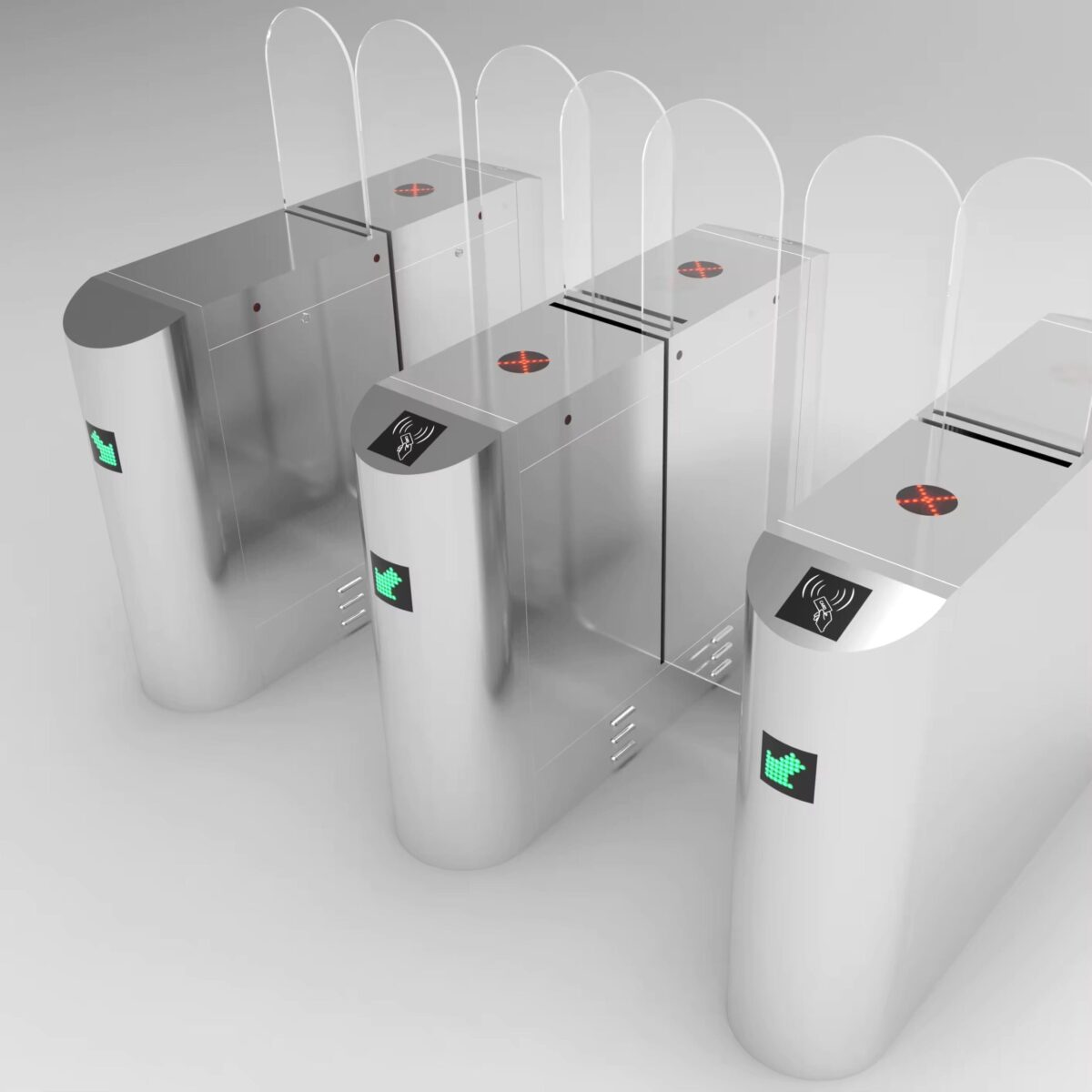

    Sliding turnstile is a kind of pedestrian access control turnstile gate based on the parallel linear movement of two baffles in the same or different directions to open and close the door. The sliding turnstile is an electric controlled automated turnstiles gate, which can be opened and closed manually through buttons, cad swiping, and remote control, or fully automatic through face recognition and human body induction. At present, it is commonly used at the entrance gate of various residential areas, enterprises, factories, and other places. which is specially used to control pedestrian access.

    304 Stainless Steel Coat Sliding Barrier Gate for Indoor Lobby

    304 Stainless Steel Coat Sliding Barrier Gate for Indoor Lobby

    Basic Function

    1. The entry and exit direction can be set independently, free mode/forbidden model

    2.Automatic reset function: The speed gate will open the arm after receiving the valid opening signal when standby. The speed gate will return to the hindered zero position automatically under the following situation:

    –within the allowed time, pedestrians have ben detected to pass through the passageway in specified direction;

    –over the allowed time, there is no people passing through the passageway.

    3.self-recovery function: The speed gates do not return to the hindered zero position because of human intervention. After revoking human intervention, the gat automatically return to the hindered zero position.

    4.Direction indicator: The direction indicator is installed on the top of the housing cabinet to indicate the valid passing direction

    5.Compatibility: Equipped with dry contact signal input interface can make sure compatible with all kinds of access controllers

    Customized Function:

    1. Built-in or external counter
    2. External gate open button or remote controller
    3. 316 grade stainless steel. Thickness of the material
    4. Lane width can be made based on the requirement
    5. Arm material organic glass, tempered glass, acrylic
    6. Integrate with access control system and built-in reader appointed by customers

    304 Stainless Steel Coat Sliding Barrier Gate for Indoor Lobby

    Product Technical Parameters

    Model NumberMR P604
    Product name304 Stainless Steel Coat Sliding Barrier Gate for Indoor Lobby
    ApplicationSecurity Access Control Management
    size1400*320*980mm
    MaterialSS304 grade stainless steel
    Thickness of materialbody cabinet 1.0mm, top of cover 1.2mm
    Arm materialAcrylic/Glass 10mm thickness
    Channel width ≤1000mm
    open gate signal inputDry contact signals, 232 or 485 commands.
    Unlocking time0.2s
    Speed of passage≤35p/Min
    Voltage inputAC 220V/110V 10% 50/60MHZ(optional) 220V, 50H; (support adjustable)
    Typefull automatic or semi automatic
    environmental temperature-25°C~+70°C
    working environmentIndoor/outdoor (under shade)
    MCBF≥5 million
    weightsingle core movement: 70KG / double core movement: 80KG
    configuarationone channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared
    Driving MotorDC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w
    AlarmIllegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current:
    Special Functions1. support normally open, normally closed, power failure door opening, fire linkage.

    2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode.

    3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback;

    Advantages
    1. The equipment has fault active feedback function, for gate failure, can actively upload fault code, realize the early warning, convenient maintenance
    2. Through the management computer to realize remote control door single pass open door, normally open, normally closed, fire control, return to normal and so on.
    Secondary development1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment;

    2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking  gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ)

    patentpatented design products patented movement utility model products

    304 Stainless Steel Coat Sliding Barrier Gate for Indoor Lobby

    304 Stainless Steel Coat Sliding Barrier Gate for Indoor Lobby

    Optional Access Control Solutions:

    The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.

    Occasion Application:

    suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University,  institutions, clubs, and other high-end places related to entrance access control solutions.

    304 Stainless Steel Coat Sliding Barrier Gate for Indoor Lobby

    304 Stainless Steel Coat Sliding Barrier Gate for Indoor Lobby

    FAQ

    Can this swing barrier gate wiyh anti-tailaing alarm?

    yes, Anti-alarm is our standard request.

    What is the using lif of this speed gate?

    More than 5,000,000 times.

    Can I using our own access system to control the swing barrier gate?

    Yes, the swing turnstile gate can receive the signal from your access control system and running.

    Can you offeraccess control system?

    Yes, we have our access control system like rfid cards, QR codes, Barcode. Ticket selling systems, face recognition. ect.

    Can you make my own brand?

    Yes, we have 12 ODM Experience since 2009. we can make our private design and logo.

    What is the warranty policy?

    During 12 months warranty period. any parts running wrong or problems, we will send the free to replace.
