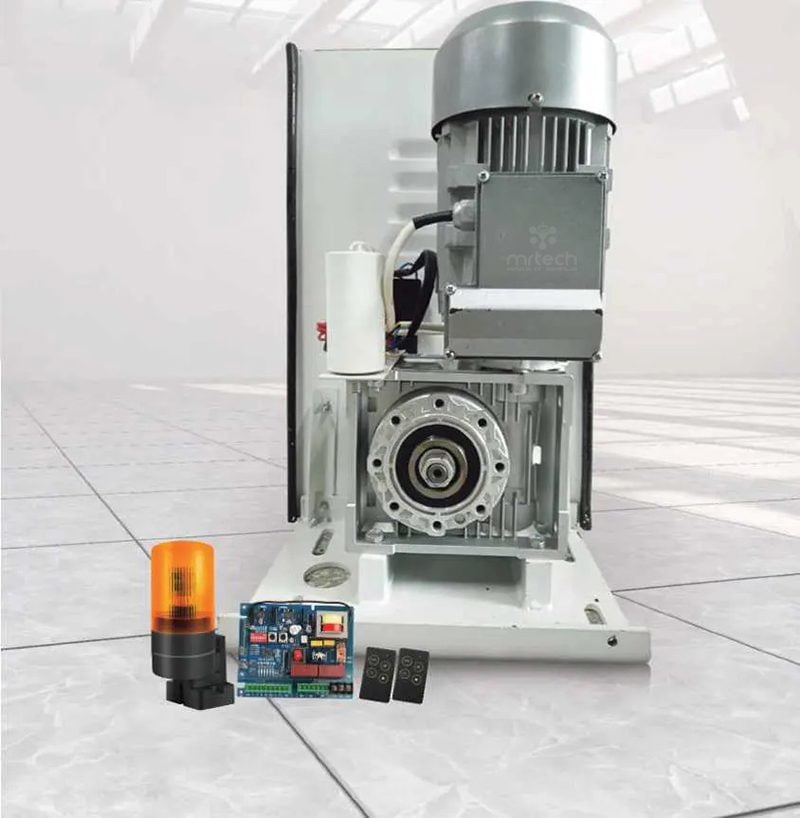

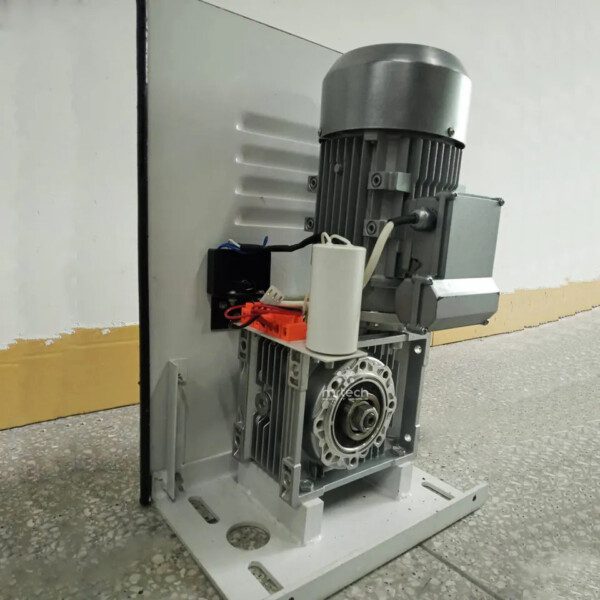

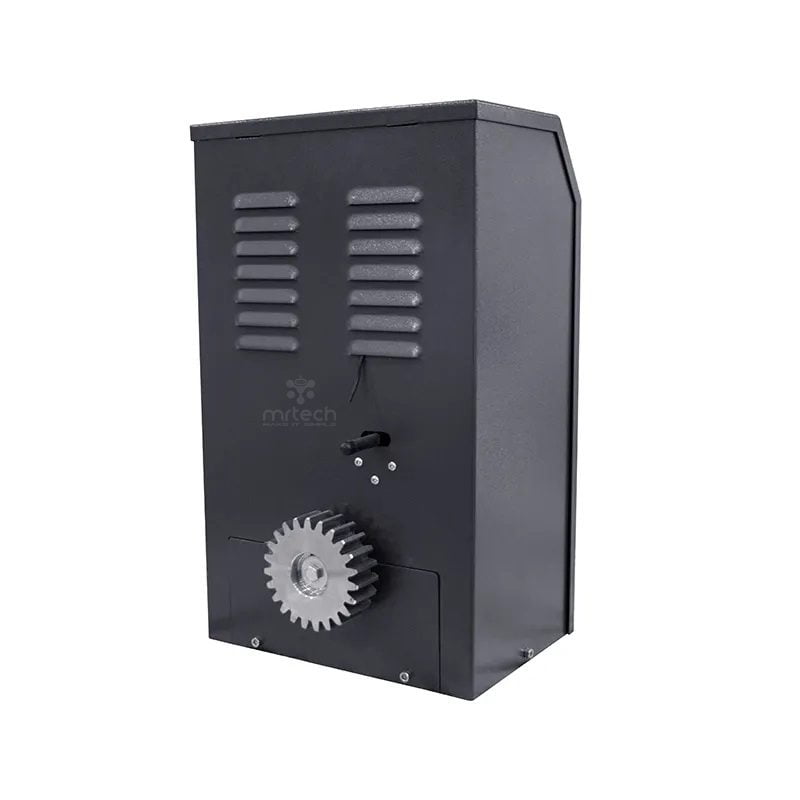

Automatic Sliding Gate 4000kg AC220V Motor for Commercial
Mr. Tech Technology built a control board for the sliding gate opener, which makes it automatical stop against extra resistances. This controller is the latest product developed by our company. it contains an overheating protector. when the temperature reaches the value, it will automatically power off and protect the motor electronic parts are connected by SMT technology, more safely, more stable, more secure, and more reliable
Specifications Technical data
| Type | Automatic Sliding Gate 4000kg AC220V Motor for Commercial |
| Model | MR SGM4000 |
| Project Solution Capability | Total Solution for Projects |
| Power Supply | AC 220VAC/ 50Hz or 380v / 50Hz |
| Motor Power | 750W/1100W |
| Control Model | Frequency Converter |
| Gate Moving Speed | 12m/min |
| Motor Speed | 1400rpm |
| Maximum Weight of Gate | 4000kg |
| Customise Weight of Gate Motor | 3000kg / 3500kg / 4000kg / 4500kg / 5000kg |
| Max. Output Torque | 35NM |
| Limit Switch | Encoder, Magnetic, or Spring limit switches |
| Noise | <60dB |
| Working Duty | no limit |
| Working Temperature | -20ºC ~+50ºC |
| IP Grade | IP44 |
| Feature | Easy Install |
| Warranty | 1 year |
| Driven Mode | Gear |
| Standard Configuration | 1 motor, 1 control box, 2 remote controls, 2keys, 2magneetic limit switches, 1 mounting plate, fixing accessories |
Automatic Sliding Gate 4000kg Optional Used
Sliding gates, Sectional sliding gates, Telescope Sliding gates, Cantilever Sliding gates, Skylight glass roof, Curved folding Sliding gates
MAIN FEATURES
- Space saver
- Smooth operator, soft start and slow stop
- No gates left open!
- Increased privacy no uninvited visitors
- Greater convenience and improved quality of life
- Safety devices as standard
- Various control options
- Gates can be locked in open or closed position
- Suitable for industrial use
- Very easy to install on both new and existing gate
- Control to stop anytime while the gate is moving
- Emergency clutch key: In case of power failure just unlock the device with a personalized key
- Overheating protector: when the motor temperature reaches the rated value, it will automatically power off and protect the motor
- Wide range of electromechanical operators for sliding gates up to 4000kg weight
| Optional Accessories | Photo Sensor, Flashing Light, Bluetooth Controller, Wi-Fi mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port. |
| Application | Medical Stores, Houses, Industries, Stores, Warehouses, restaurants, etc |
Automatic Sliding Gate 4000kg AC220V Motor for Commercial
| Notice | If you want to place an order, please contact the seller, and we will calculate the cheapest freight for you! |
