Automatic Gate System for Home
| Notice | If you want to place an order, please get in touch with the seller, and we will calculate the cheapest freight for you! |


What is an electric gate?
The simplest way to describe an electric gate is an automated entrance gate that can be opened and closed using a mechanism that is powered using electricity. There are generally two types of electric gates to choose from.

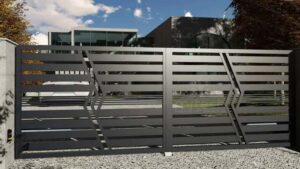

The sliding gate is a popular choice for many looking for the security and other benefits of an electric gate. This type of automatic gate glides across a track on wheels. Sliding electric gates can also be fabricated with the more ornamental wrought iron or other metal designs using aluminum or steel.


Specification:
| Brand | MR. TECH |
| Model No | MR-AG05 |
| Product Name | Automatic Gate System for Home |
| Gate size | 14’feet x 5 feet |
| Open Style | Sliding Type, Swing Type, folding type, Bi-folding, Turning Sectional Sliding Gate |
| Material | Mild Steel, etc |
| Size | Various types and sizes are Available. Customer Requesting |
| Color | White, Black, Silver, and Customer Requesting colors are Available |
| Surface Treatment | Hot-Dip, Galvanized, Powder Coated |
| Drawing Design | According to your request |
| Optional products | Manual, Semi-Automation, Automatic. |
| Application | Residential, Industrials, Commercial, etc. |
| Optional Accessories | Photo Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port. |

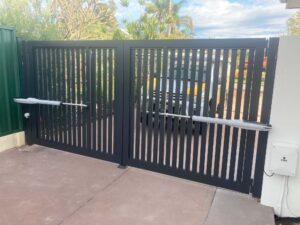

The Automatic electric swing gates are those where two gates swing inwards towards your property. Similar to sliding gates, they can be either wooden or wrought iron. Using a sensor, an operator, when commanded by remote control or keypad, works the arm to make the doors swing open.


Swing Gates Motors Specification:
| ITEMÂ | Â DESCRIPTION |
| Brand Name | Â MR. TECH |
| Model Number | Â MR SWGM350DC |
| Type | Â Automatic Electric Swing Gates Motors |
| Name | Â Automatic Gate Opener with Remote Control |
| Material | Aluminum & Plastic |
| Power Supply | Â 220V AC to the control panel |
| Power to Motor | 24V dc |
| Average power consumption | 1.7A |
| Manual Override | Via override keys supplied |
| Actuator Length When retracted | 740mm |
| Actuator Length Fully expanded | 1080mm |
| Arm Stroke | 350mm |
| Opening/closing running time | 12-15mm |
| Max absorbed power | 144 (72w per ARM) |
| RF Frequency | Â Rolling code 433.92mhz |
| Max. Operating Current | Â 4A for a maximum of 10 seconds |
| Max. Gate weight | Â 450kg per leaf |
| Max gate length | Â 3.5 meters |
| Operating Temperature |  -20ºc ∼ +50ºc |
| Duty Cycle | Â 20% |
| Motor Weight | Â 7.0kg |
