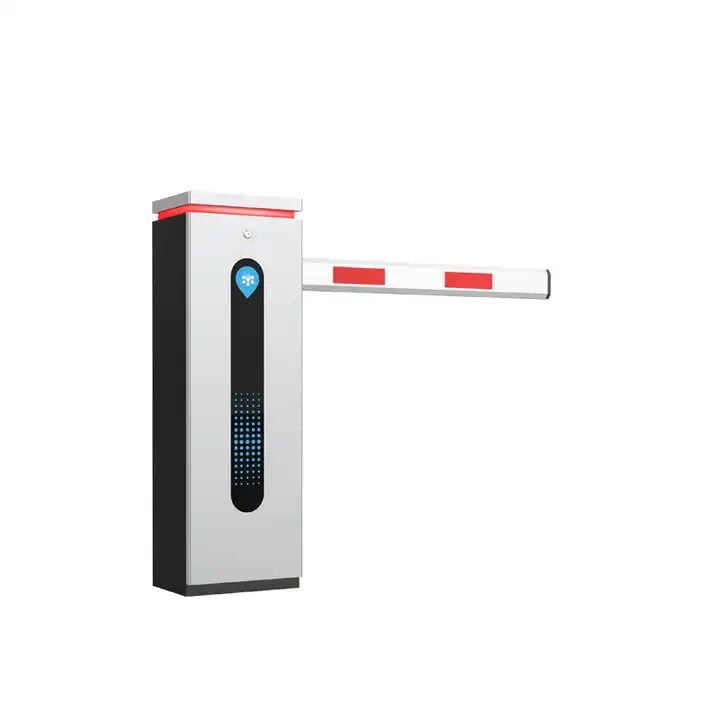

Automatic 4M Straight Arm Road Boom Barrier
Boom Barriers are dependable, improve security and traffic flow control, and provide immediate privacy from unauthorized entry. They’re built to last and are incredibly durable. They’re also built to withstand wear and tear and be low-maintenance and space-efficient. Barriers play an essential role in a variety of industries. Barriers are designed to control flow in either direction.
Specification:
Brand | MRTECH |
Model No | MR ASTB42-4M |
Product Name | Automatic 4M Straight Arm Road Boom Barrier |
Arm Type | Straight Arm |
Boom Length | 4 Meters |
Arm Material | Aluminum. (Optional: Mild steel, Stainless Steel ) |
Voltage | DC 24V |
Temperature Range | -40ºC ∼+75ºC |
Current | 7.5 A |
Open/ Close Time | 1.5 ∼ 6 sec Adjustable |
Operation Lifetime | ≥5 Million times |
Boom Length | 3∼6 Meters ( Customized sizes Available ) |
Motor Rated Speed | 780 RPM (No load), 600 RPM (Rated) |
Output Efficiency | 180 W |
Gross Weight | 50 Kg |
MOQ | 3 set |
Application | Warehouses, Residential apartments, Traffic Hubs, Industrial parks, etc. |
How do traffic loop detectors work?
The inductive-loop system behaves as a tuned electrical circuit in which the loop wire and lead-in cable are the inductive elements. When a vehicle passes over the loop or is stopped within the loop, the vehicle induces eddy currents in the wire loops, which decrease their inductance.

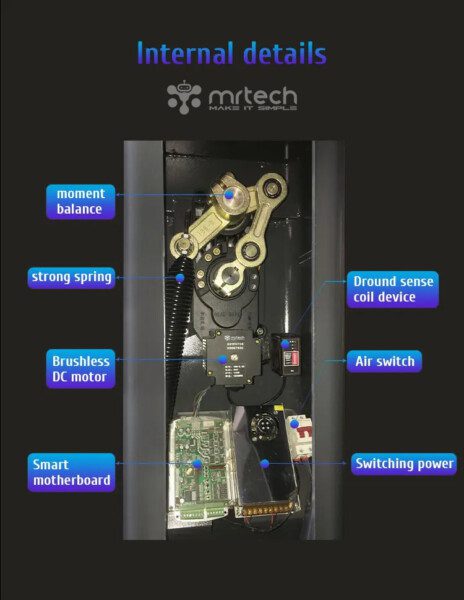

Product Features of Automatic 4M Straight Arm Road Boom Barrier:

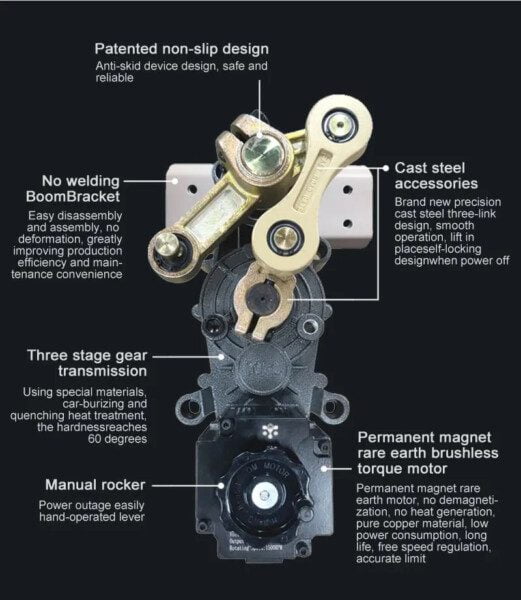

- Anti-skid device design, safe and reliable
- Brand new precision cast steel three-link design, Smooth operation, lift in place self-locking design when power off.
- Easy disassembly and assembly, no deformation, greatly improving production efficiency and maintenance convenience.
- Using special materials, car-buzzing, and quenching heat treatment, the hardness reaches 60 degrees.
- Permanent magnet rare earth motor, no demagnetization, no heat generation, pure copper material, low power consumption, long life, free speed regulation, accurate limit.
- Power outage easily hand-operated lever.
Optional Accessories :
- Photocell sensor.
- Wi-fi USB Controller.
- RFID with Detector.
- Voice commands Through Google Assistant, Alexa, and Siri.
- Bluetooth controller.
- license plate recognition
- Wi-Fi mobile access Controller.
- Face Recognition.
- Loop Detector
