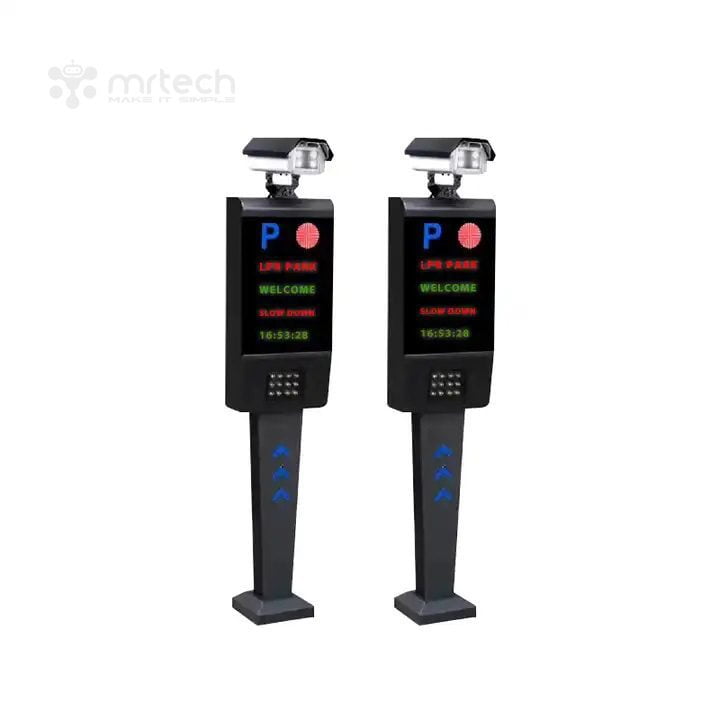

ALPR Camera License Plate Recognition For Car Parking
what is the vehicle number plate recognition system?
number plate recognition can be used to store the images captured by the camera as well as the text from the license number plate with some configurable to store a photograph of the driver systems commonly use infrared lighting to allow the camera to take the picture at any time of day or night,
Automatic number plate recognition provides a comprehensive enforcement service for your car park by reading the vehicle number plate, our ANPR Systems Records entry and exit times of parked vehicles a parking charge notice can then be issued to any vehicle exceeding the allotted time restriction
Technical Parameters:
Brand | MR TECH |
Model No | MR ALPR13 |
Product Name | ALPR Camera License Plate Recognition For Car Parking |
Power Supply | Ac 220V / 110V ; 50/60 Hz ( optional) |
Recognition Rate | up to 95% |
Trigger Mode | Video trigger, coil trigger, vehicle capture rate over 99% |
Ultra Wide Dynamics | 120 DB |
Camera | 200W Pixel |
Operating Temperature | -20ºC ∼ +65ºC |
Related Humidity | ≤95% RH |
MTBH | 310,000 Hours |
Communication | TCP /IP |
Power Interface | DC 12V |
Identification Accuracy | >99% |
Voice prompt | 0.2 seconds |
Protection Level | IP 65 |
Minimum Illumination | 0.1 Lux (standard) |
Capturing speed | ≤120 km/h |
Detection Distance | 7-30m |
Machin Height | 1715mm |
Display Case | 1750*150mm |
Base Size | 230*230mm |
Working Environment Humidity | <95% non-condensing |
Flase Detection Rate | >1% |
24/7 Vehicle Capture Rate | >99.8% |
24/7 Vehicle License Plate Recognition Accuracy Rate | >99.8% |
Vehicle Color Recognition | >99% During the Day >98%at night |
Adaptive Camera Adjustment Rate | <1 minute |
Voice Display Scereen | Horizontal Screen Three color four-line screen |
Applications scenario:
Suitable for parking lots in residential communities, enterprises and institutions, hotels, commercial buildings, government organizations, logistics companies, hospitals, villages, shopping markets, and so on.

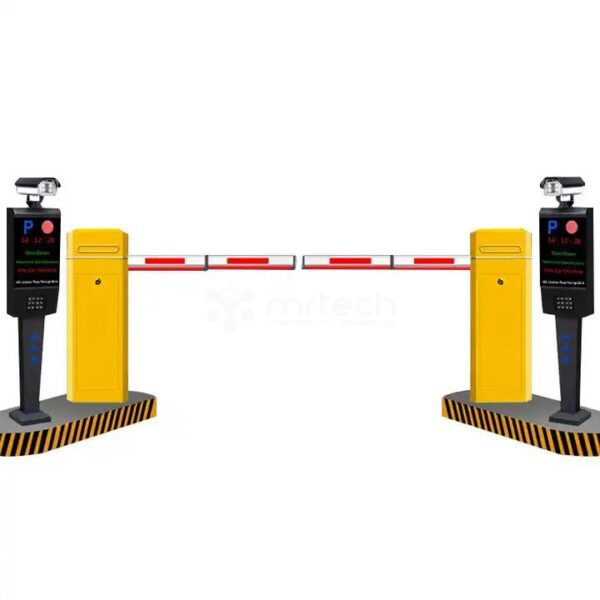

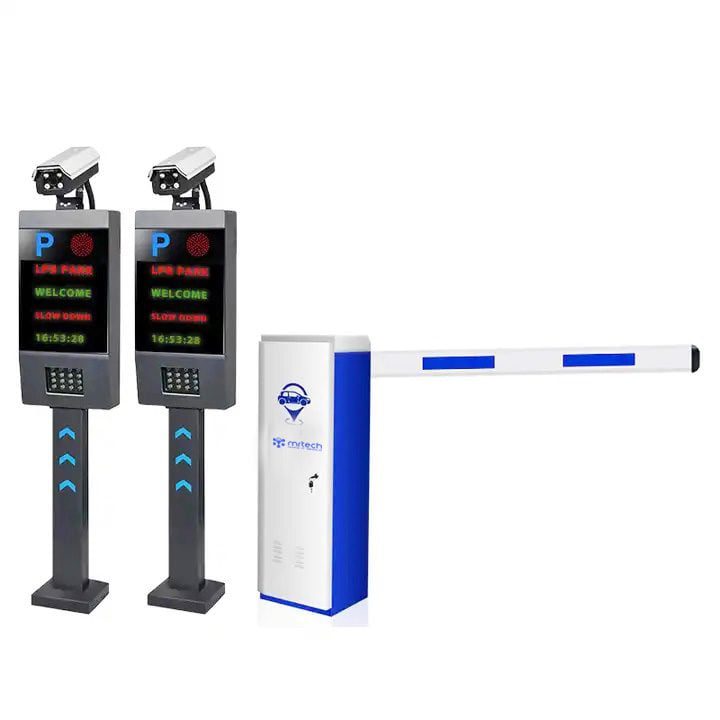

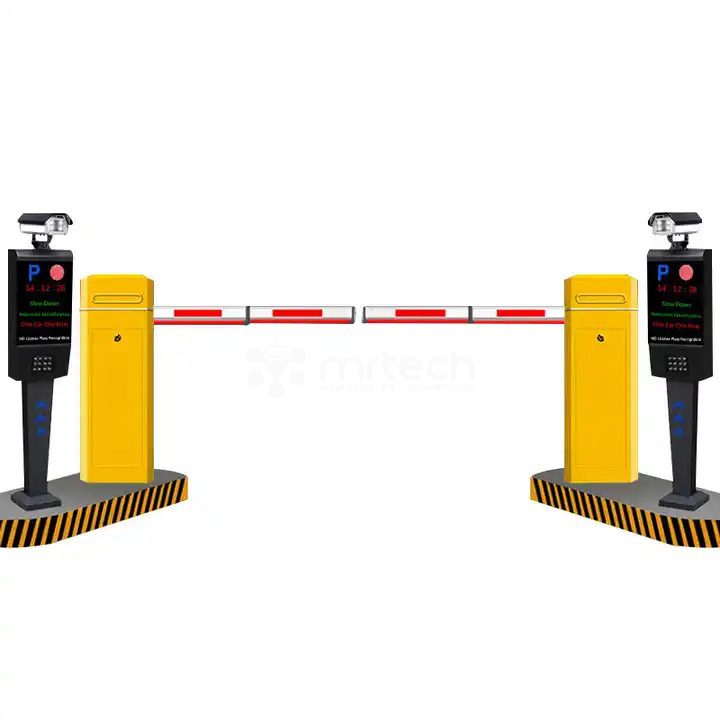

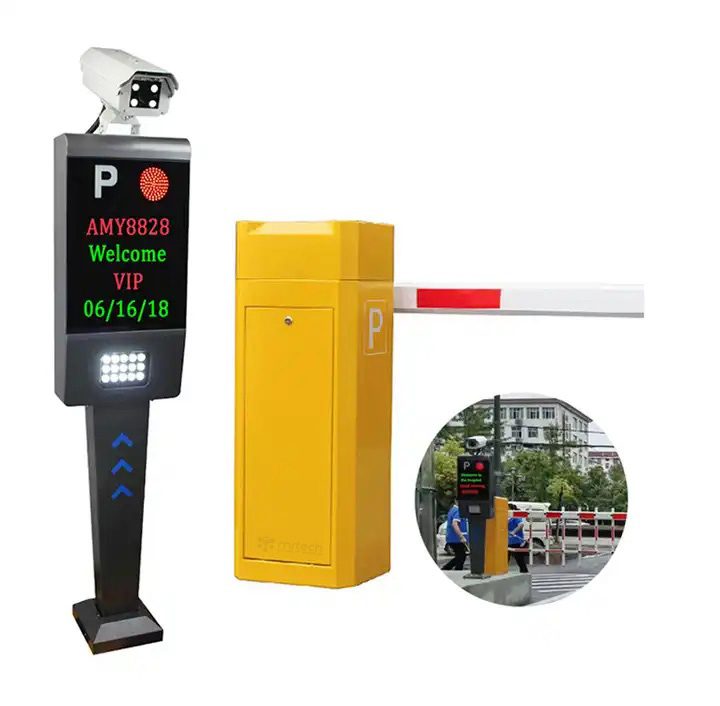

ALPR Camera License Plate Recognition Optional Used in or exit
Entrance for Boom Barriers, Gates, Garage Doors, high-speed doors
Notice | If you want to place an order, please contact the seller, and we will calculate the cheapest freight for you! |
