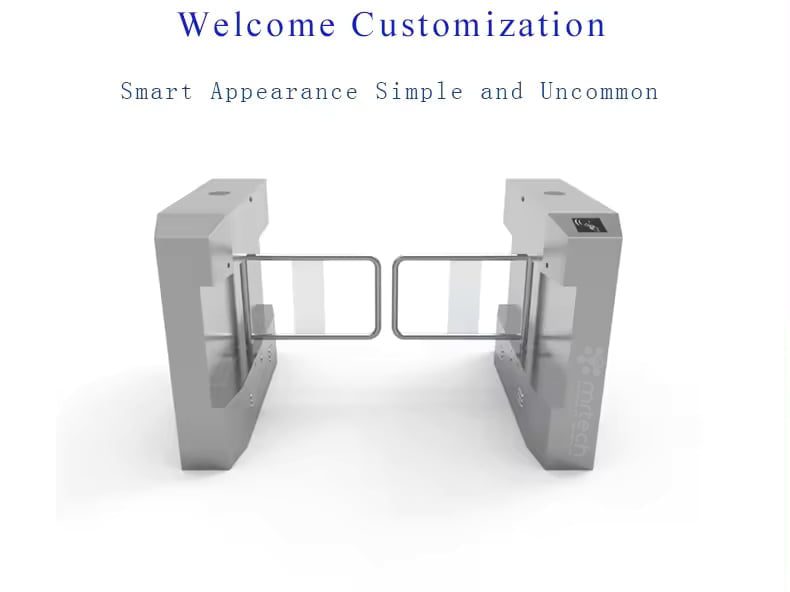

Waterproof Swing Turnstile RFID Card Bar Code Ticket Reader for Factory
Pay attention to daily cleaning and maintenance during the use of the sliding barrier turnstile. Regular inspection can effectively prevent the aging of turnstile, the appearance and function can be customized according to the demand.
We can provide OEM and ODM services. we also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanner’s, face recognition cameras, and so on. If you need to integrate these devices on the turnstile gate or have any questions, please contact us
The function of our access controller can work with the sliding turnstile:
- can show the records on the TV screen
- show the access records
- personnel location function
- can set the access time(extension function)
- Time Attendance
- Monitor function
Product Technical Parameters
| Model Number | MR B118 |
| Product name | Waterproof Swing Turnstile RFID Card Bar Code Ticket Reader for Factory |
| Application | Security Access Control Management |
| size | 1200*280*980mm |
| Material | SS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | AC 220V/110V 10% 50/60MHZ(optional) 220V, 50H; (support adjustable) |
| Type | full automatic or semi automatic |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single core movement: 70KG / double core movement: 80KG |
| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Special Functions | 1. support normally open, normally closed, power failure door opening, fire linkage. 2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback; |
| Advantages |
|
| Secondary development | 1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment; 2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ) |
| patent | patented design products patented movement utility model products |
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.

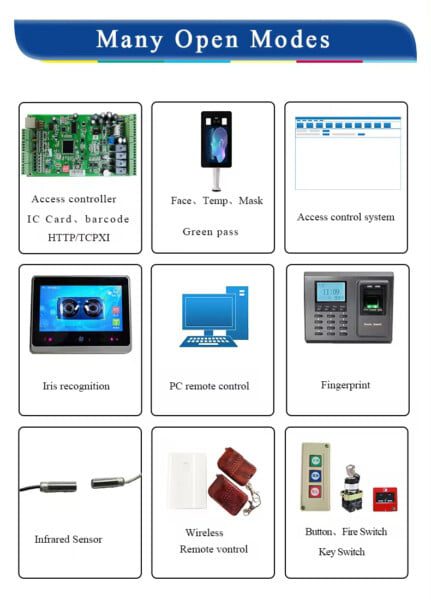

Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
FAQ
Can this swing barrier gate wiyh anti-tailaing alarm?
yes, Anti-alarm is our standard request.
What is the using lif of this speed gate?
More than 5,000,000 times.
Can I using our own access system to control the Swing Turnstile Bar Code Ticket Reader?
Yes, the swing turnstile gate can receive the signal from your access control system and running.
Can you offeraccess control system?
Yes, we have our access control system like rfid cards, QR codes, Barcode. Ticket selling systems, face recognition. ect.
Can you make my own brand Swing Turnstile for Factory?
Yes, we have 12 ODM Experience since 2009. we can make our private design and logo.
What is the warranty policy?
During 12 months warranty period. any parts running wrong or problems, we will send the free to replace.
