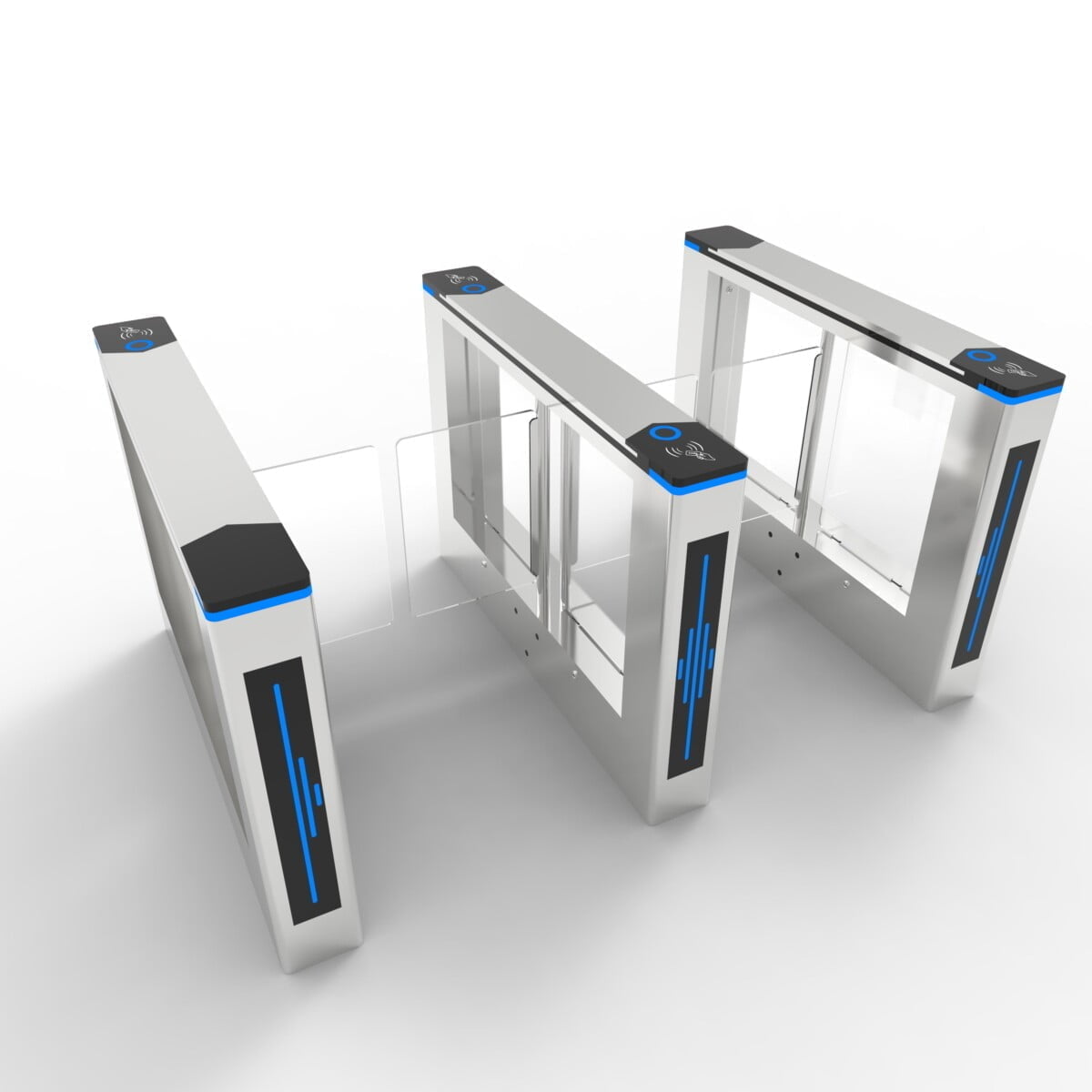

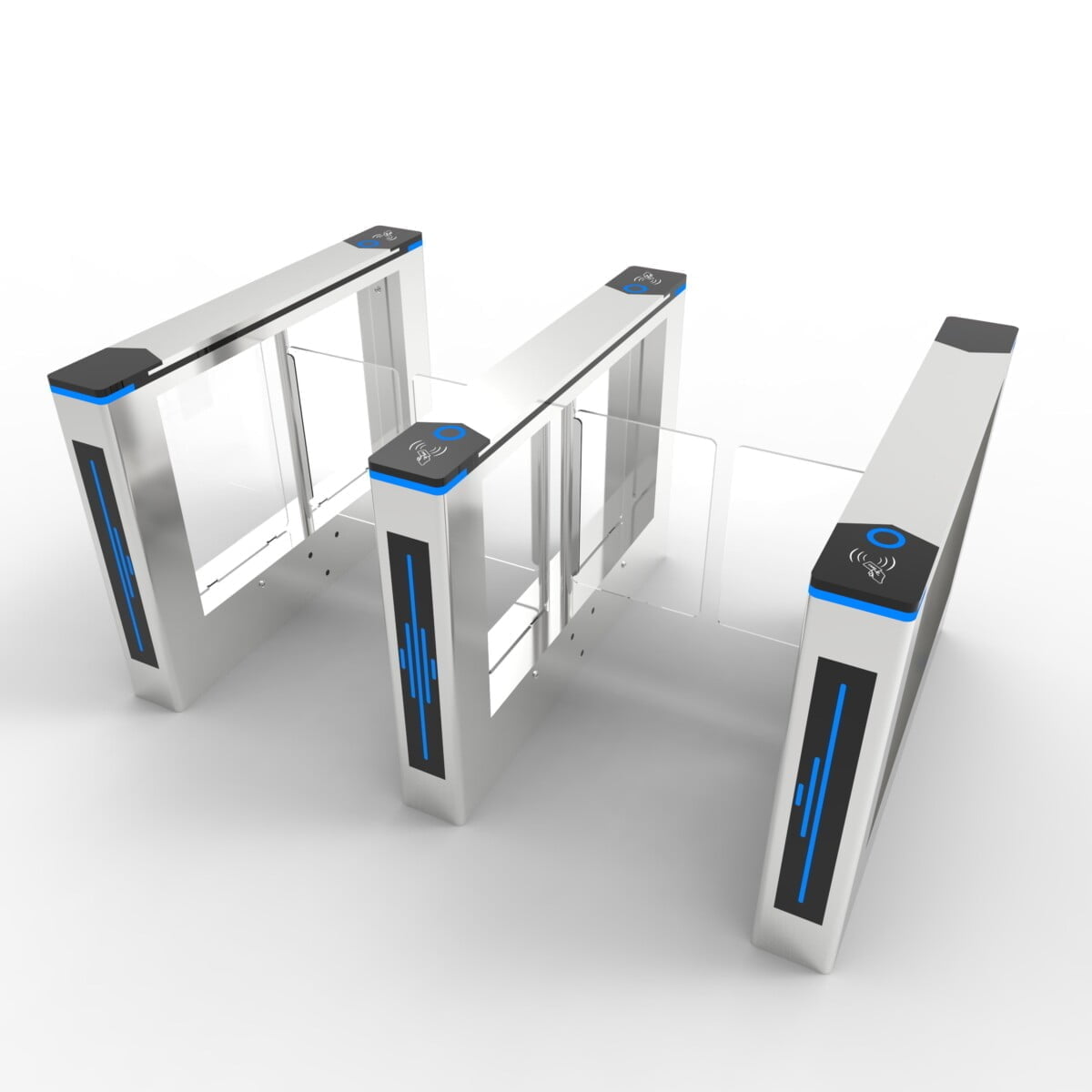

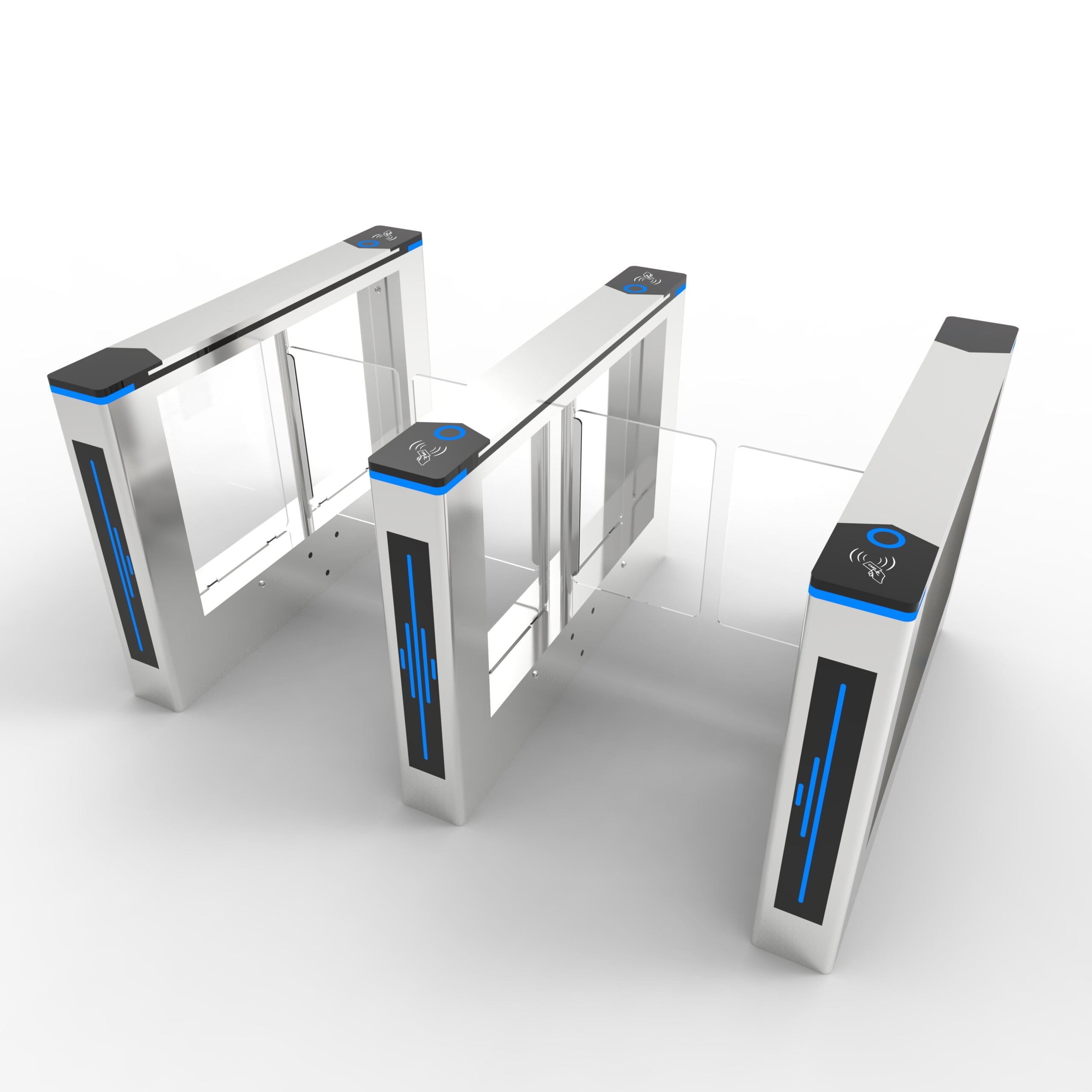

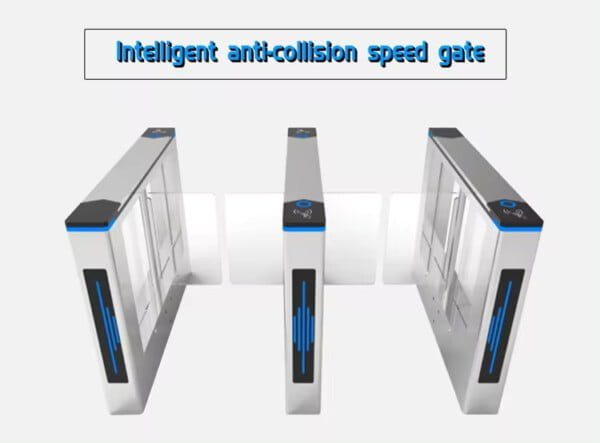

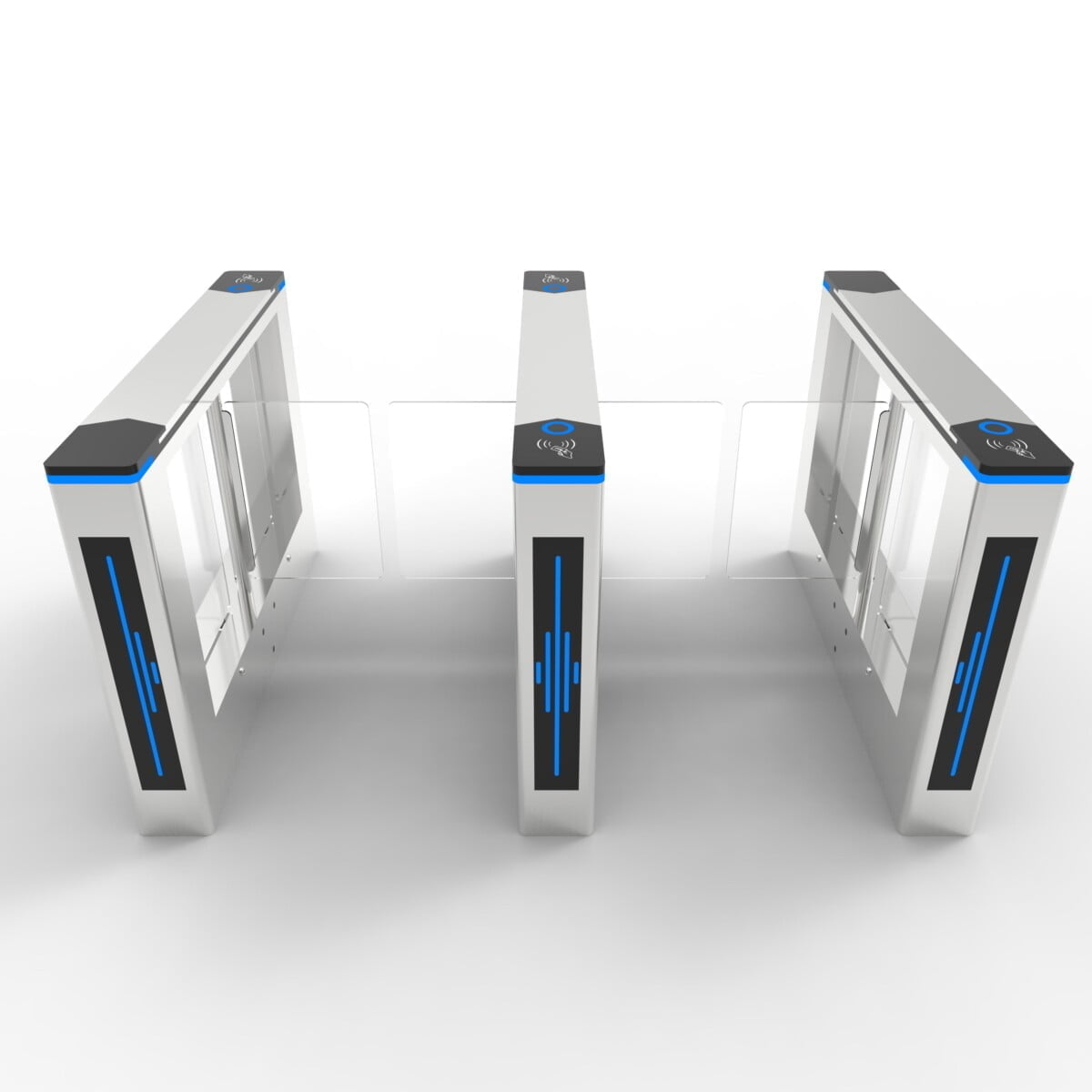

QR Code Reader Speedy Turnstile for Airport, School, University
Speedy Turnstile barrier is designed to provide access control and complete security in the public passages. It demotes the way out of the security to the employees of an organization and also to the assets of a business. At the same time, it gives a high level of access to the open public and to the visitors. This has a big benefit for the people whose entire revenue depends on a constant pedestrian flow while safeguarding and securing its assets and personnel at a time.
Functions and features:
- Designed reasonable and reliable movement, noise, smooth running, and long service life.
- Access prompt function: Red and green light prompt the passing information.
- The programmable gates control state, with a variety of operating modes you can chose, you can set a one-way or two-way control.
- Installation with personalized interfac, compactible with IC,ID cards and other smart cards.
- standard input and output interface
- Scour protecton function, when the gate signal is not received, the stick is automatically locked
- Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board
- Self-test failure alarm function, user-friendly maintenance and use.
- With the [power drop-shot function. In case of power off, the railing falls, and in case of power on, the railing automatically rise.
- Counting function: record the passing times, LED digital display function(optional)
- Waterproof, sunscreen, cold and high temperature.
Product Technical Parameters
| Model Number | MR SPT254S |
| size | 1400*185*1000mm |
| Material | SS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | 220V, 50H; (support adjustable) |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single core movement: 50KG / double core movement: 70KG |
| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Special Functions | 1. support normally open, normally closed, power failure door opening, fire linkage.
2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback; |
| Advantages |
|
| Secondary development | 1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment;
2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ) |
| patent | patented design products patented movement utility model products |
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
