8Mtr Galvanized Heavy Duty Sliding Cantilever Gate Hardware Kit
Introduction
Being a trendsetter, we realize the fact that there is a need to provide our customers with an improved product in the league of automated entrance systems. With this goa,l MR. TECH comes out with an improvised product called automated cantilever sliding gates. These gates are a new value-added product in the range of standard sliding gates.
PARCEL DELIVERY THAT’S EASY AND AFFORDABLE
The longer the item, the more your Client has to pay to send a long parcel. Posting the long parcels does not need to be a headache anymore. To find the cheapest way to send a long parcel MR.TECH has invented and patented “ALL IN ONE”, the Compact Cantilever Sliding Gate Hardware. According to the most reputable couriers, anything longer than Gate Hardware Kit 3.0 mt is considered a Long Parcel Delivery, with extremely high courier rates. Therefore MR.TECH “ALL IN ONE” Compact Cantilever Sliding Gate Hardware is the ideal solution for Cantilever Gates up to 8.0 mt, making parcel delivery easy and affordable.
WHAT MAKES THE “ALL IN ONE” GATE HARDWARE DIFFERENT?
MR.TECH has to ensure that all the gate hardware that your clients need to assemble the Sliding Cantilever Gate is included.
See what MR.TECH “ALL IN ONE” box includes:
DIFFERENCE BETWEEN A HEAVY DUTY CANTILEVER GATE AND A SLIDING GATE
Heavy Duty Sliding Cantilever Gate is a unique type of sliding gate, but with distinctive, interesting differences from your typical gate with wheels. One of the primary differences between a cantilever gate and a sliding gate is the location of the wheels that help the gate move. A cantilever sliding gate rests and rolls on a wheel on the front bottom edge of the gate with a track supporting wheels on the back edge. In contrast, a cantilever gate is held above the ground, moving along rollers running along the top and inside of the fence, with wheels attached to a vertical concrete foundation.
SAFETY
Safety devices are strongly recommended, if not required, when automating a gate. Such safety devices may include safety photo beams, safety edges, and loop detectors. Safety devices are designed and installed to protect against the gate closing on a vehicle. Due to the linear movement of a sliding cantilever gate, the path of the gate is limited in comparison to a swing gate ,which swings in an arc of approximately 90 degrees.
COST
In some instances, when a double swing gate and a single cantilever gate are to be considered, a single cantilever gate will be less expensive to automate since it requires only one gate operator instead of two.
DESIGN
The smart appearance, efficient design, and craftsmanship in a cantilever gate is sure to impress owners, visitors, and customers visiting the property.
CANTILEVER GATE PERFORMANCE
Sliding gates have simpler and smaller operating mechanisms than cantilever gates, and as a result, wheel contact with the ground can make operation coarser and noisier than with cantilever gates. Since cantilever gate wheels are off the ground, this style can span a wider range of terrain, including gravel, grass, block,s and uneven, angled, or steeply inclined surfaces. The absence of contact with the ground also allows cantilever gates to function easily in snowy or icy conditions.
SPACE
Single cantilever gates move in one direction, often directly parallel to an existing fence line. This efficient use of space makes a cantilever gate an ideal choice when designing a property’s perimeter fence and security system.
Made with modern technology and an improved reverse motion mechanism, cantilever sliding gates have better operation, functioning, and look. These gates are introduced with an aim to overcome the shortcomings of standard sliding gates and grow in terms of new trends & modern technology. Our Cantilever Sliding Gates are supported on only one end; the roadway is free of track & supported by rollers that slide in a tubular track fitted to the bottom of the gate. The obvious advantage of cantilever sliding gates is that you do not need to do an uphill struggle to do the civil foundation.
INSTALLATION STEPS
The installations do not require complicated steps and materials, and therefore, the working time is not too long as well. We invite you to follow the installation steps of MR.TECH ALL IN ONE M 8.0 cantilver hardware.
Supported at one end and held inches above the ground surface, they are the perfect solution where the roadways are uneven or where no obstruction is required on the ground. Own design and manufacturing process. Various patterns and designs are available as per the customized requirement. Tested graded steel is used for the manufacturing of these gates & thus, the gate is strong to protect your premises from unauthorized access. Imported & high quality cantilever track and top/ bottom rollers Robust electrical motor and controls.Control to stop anytime while gate is moving
CANTILEVER GATE SPACE REQUIREMENTS
Generally, the space required to accommodate a sliding gate is the same as the width it covers, with a few extra feet for access. A 9.0 mt wide driveway would need to have 9.0 mt on one side for gate storage and about 0,3 mt to allow manoeuvrability around the gate frame. A cantilever gate needs to be about 35 percent wider than its span to counterbalance the weight of the suspension posts.
- This is a perfect gate solution where one does not require any grouting on the floor.
- The cantilever gate has an imported Italian-made cantilever track and a pair of bottom trolley rollers
- No risk of wear or curvature of bottom track due to passage of Lorries or heavy vehicles.
- These types of Cantilever sliding gates can be easily installed on non-stabilized or perfectly horizontal ground.
- Our Automatic Cantilever Sliding Gates are virtually maintenance-free as there is no accumulation of dust & water on the track.
- Available with hinged side & inbuilt wicket gates for pedestrian use
- Electromechanical gear motors range: 8Mtr Galvanized Heavy Duty Sliding Cantilever Gate Hardware Kit 400 to 6000Kg for heavy gate application.
- The gate can be manually operated in case of power failure.
- Gates can be interlocked with an entrance boom barrier for additional safety.
- Various industrial gate designs available to suit clients’ choice.
- Sandblasting, hot deep galvanizing process, and painting can be provided.
|
Product Name
|
Sliding Cantilever Gate Hardware
|
|
Product Size
|
Customized Size(Length x Height by real project)
|
|
Product Materials
|
Galvanized
|
|
Cantilever Gate Wheel
|
|
|
Product Patterns
|
|
|
Product Application
|
Garden, Courtyard, Villa, School, House, Hotel, Resident
|

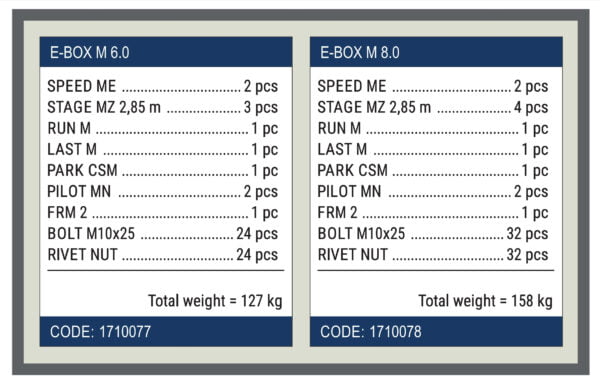

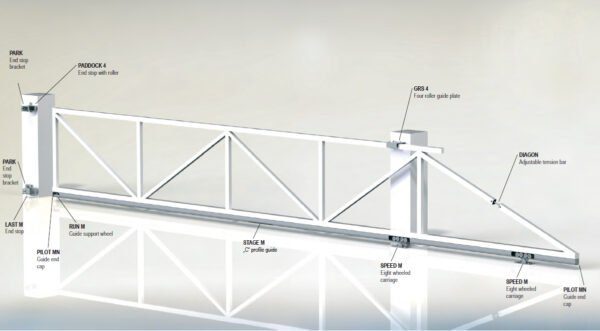

What is in the Cantilever Gate Hardware Kit box?
- Eight Wheeled Carriage (Speed ME)- 2 pcs
- C Profile Guide 3m. (Stage MZ 3)- 3 pcs
- C Profile Guide 1m. (Stage MZ 1)- 1 pcs
- Guide Support Wheel ( Run M)- 1 pc

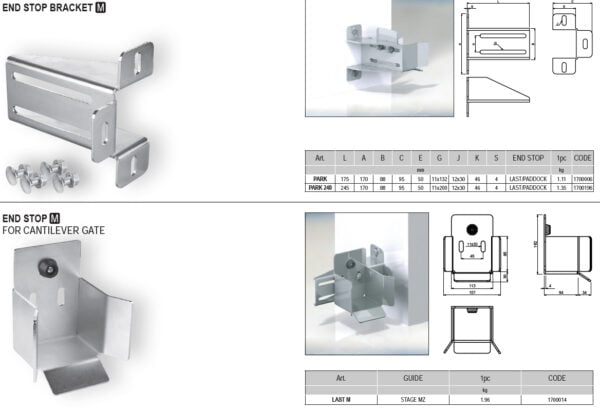

- End Stop Bracket (Park) – 2 pcs
- Guide Support Wheel End Stop (Last M) – 1 pc
- End Stop With Two Roller (Paddock SM) – 1 pc

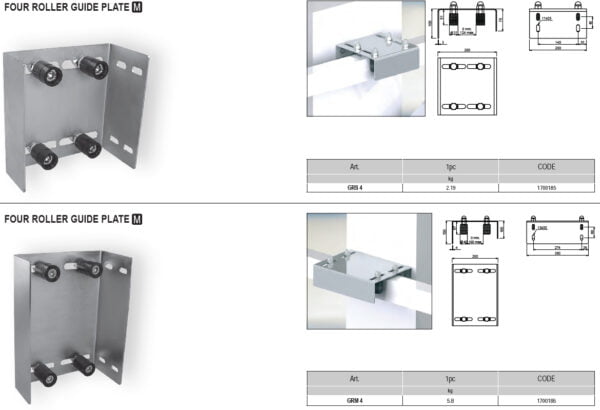

- Four Roller Guide Plate ( GRS 4)- 1 pc
- Internal Guide End Stop (Finish M) – 1 pc
- Guide End Cap With Screw (Pilot MN)- 2 pcs
Get the highest quality for your construction projects with MRM Technology Exim‘s Building, Mainly used in urban transportation, military and national important agency gates and surrounding areas, pedestrian streets, Industrial, Commercial, and Residential, highway toll stations, airports, schools, banks, large clubs, parking lots and many other occasions. Restricting passing vehicles effectively ensures the traffic order and the safety of major facilities and places solutions.
