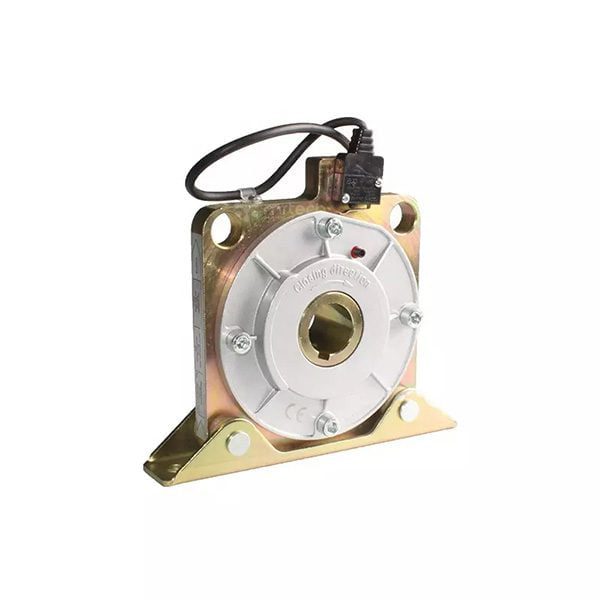

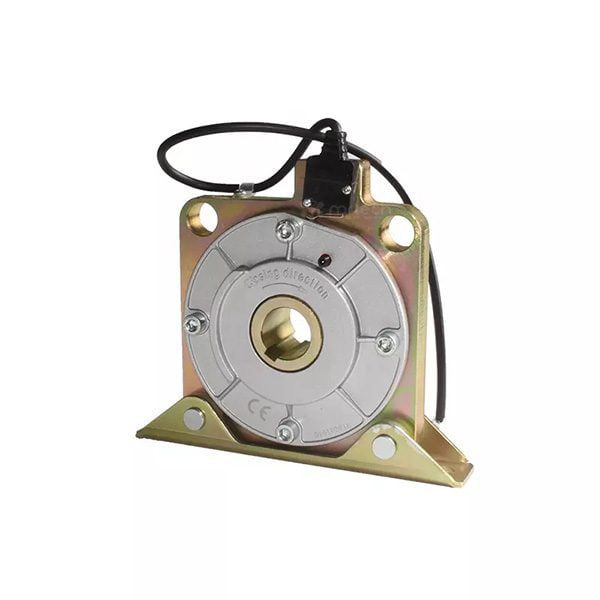

Safety Brake for Roller Shutter Door Single Way Operator
| Notice | Â If you want to place an order, please contact the seller, and we will calculate the cheapest freight for you! |
Protection against any single failure of a vulnerable suspension component must be protected such that the door is so light that it will only exert a low static weight of 20kg maximum when measured at the leading edge, in the least favorable position ( usually almost closed ) with single balancing system components failed, e.g. one single spring, cable, chain or drive unit disconnected.
Parameters:
| Brand | MR. TECH |
| Model No | MR RSB30 |
| Product Name | Safety Brake for Roller Shutter Door Single Way Operator |
| Type | Shutter Accessories |
| Material | Stainless Steel |
| Operation | Single-way |
| Max. Speed | 22 (r/min) |
| Run Torque | 365 N.m |
| Instant Max. Torque | 1444 N.m |
| Bolt Torque | 20 N.m |
| Max. weight of shutter | 800kgs |
| Bore square | 30 (mm) |
| MOQ | 3 Set |
| Usage | Rolling Shutter for Tubular Motors |
| Package Included | Safety brake system, Micro switch, Manuals |
| Applications | Warehouses, Restaurants, Commercial Building, Hospital, etc.. |
Advantages of Safety Brake for Roller Shutter Door Single Way Operator:
- Protection Device
- It acts as a pressure transmission.
- Well, function and long-lasting life.
- Good quality with factory price.
- For garage door, rolling door, rolling shutter.
