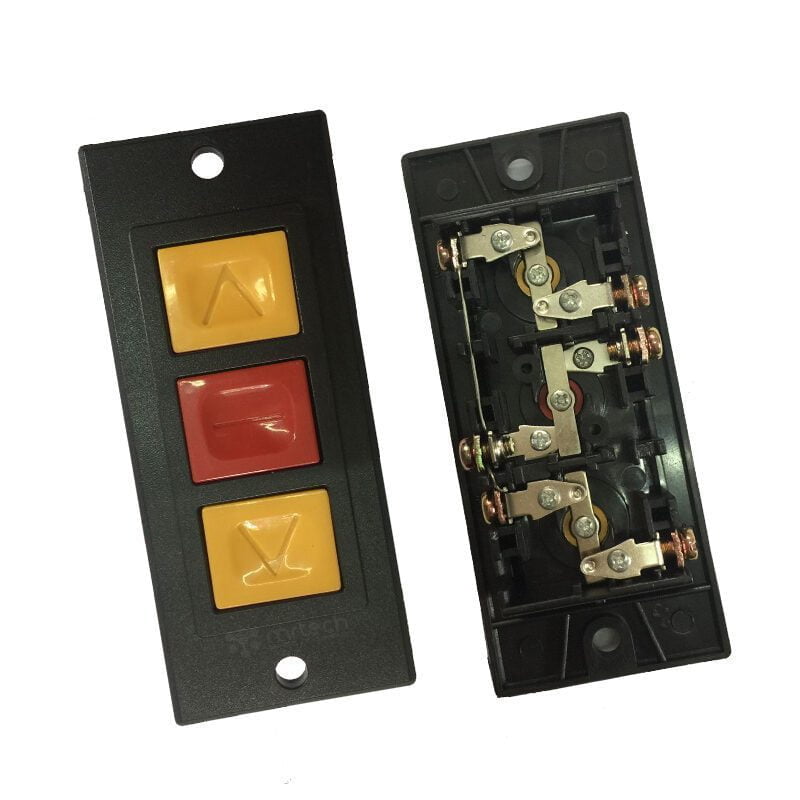

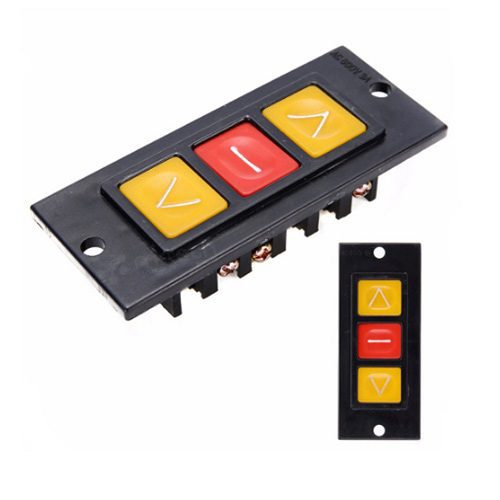

Generic Rolling Door Up Down Stop 3 Buttons Black Plastic Housing Push Button Switch for Roller Shutter Operator
How does a push button operate?
Most push-button switches function in the same way. Pressure is placed on the button or actuator, resulting in the depression of the internal spring and contacts and the touching of stable contacts at the bottom of the switch. This process will either close or open the electrical circuit. Generic Rolling Door Up Down Stop 3 Buttons is widely used for roller shutter doors, tubular motors, sliding gates barrier gates, as well as other door operators.
Function:
- Has 3 push buttons, one red stop push button, and a yellow up and down push button.
- Easy to use.
- Durable in use.
- Used for electric roller shutter garage safety door.
Specification:
| Brand | MR TECH |
| Model No | MR SPB31 |
| Product Name | Generic Rolling Door Up Down Stop 3 Buttons |
| Switch Type | Flush Push Button |
| Material | ABS Plastic |
| Color | Black |
| Button Type | UP, DOWN, STOP |
| Voltage | 220V AC |
| Current Rating | 3A |
| Frequency | 50HZ |
| Size | 100mm x 40mm x 20mm |
| Mount Hole Dia | 5mm |
| Mounting Hole Distance | 7mm |
| Rewirable Hole Dia | 1.7cm |
| Package Includes | Lock Box, Keys, Push Button. |
| Usage | Rolling Shutter/ Rolling Doors, Garage Doors, Awning. |
| Application | Residential, Industrials, Commercial, etc. |
Main Benefits of Generic Rolling Door Up Down Stop 3 Buttons:
- Commercial Garage Door Opener 3 Button Wall Mount PBS 3 Control Station
- Open/close/stop push button control
- Works on all brands of Commercial Garage Door Openers, gates, and any other electrical device that uses up to 110V and requires an open/close / stop control.
- PBS-3 Three-button control station.
- Can be used for other applications
- 5-5/16 ” High 2-3/8″ Wide 1-13/16″ Deep
- Momentary Contact Open / Close / Stop
