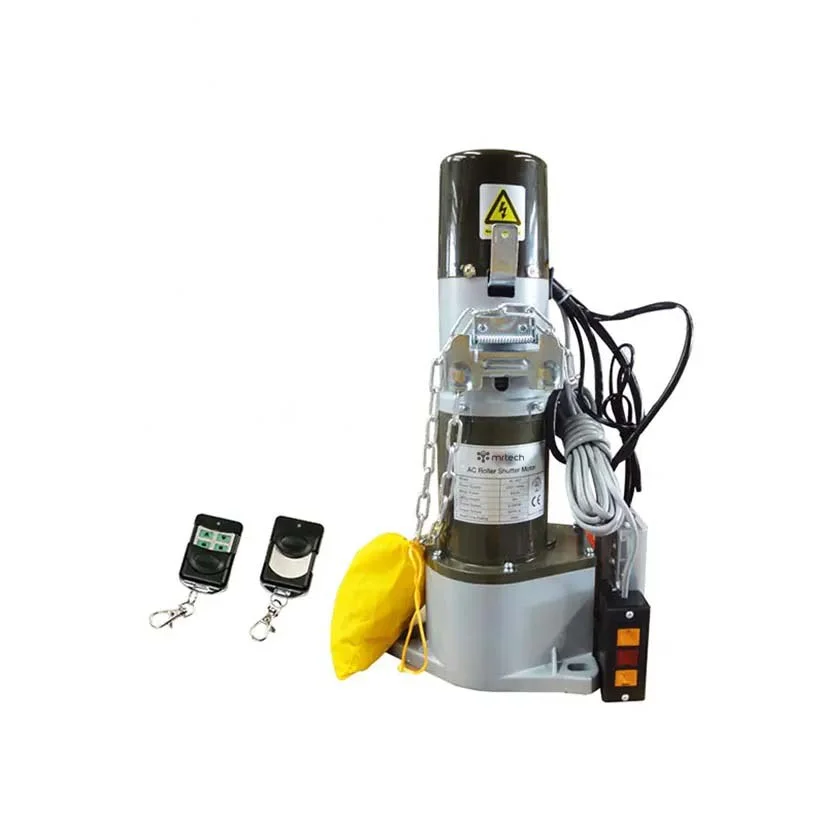

800kg Single Phase AC Electric Roller Shutter Motors
| Notice | Â If you want to place an order, please contact the seller, and we will calculate the cheapest freight for you! |
The most popular and widely used among all the categories of doors is the motorized rolling shutter. The symbolic feature of our motorized rolling shutters is their robust structure obtained due to the use of high-strength metals in the making of slate and guide profiles.
Specification:
| Brand | MR. TECH |
| Model No | MR RSMAC800 |
| Product Name | 800kg Single Phase AC Electric Roller Shutter Motor |
| Motor Type | Side Rolling Shutter Motor |
| Material | Aluminum Alloy |
| Certified | German |
| Phase | Single Phase |
| Voltage | 220V 50HZ /220V 60HZ /110V60HZ |
| Input power | 685 W |
| Max Lifting Force | 800 Kg.f |
| Output Torque | 647 Nm |
| Output Speed | 4.6 r/min |
| Rated Current | 4.5 A |
| Max Elevating distance | 9 m |
| Max diameter of Roller | 0.54 m |
| Type of Chain | 10A |
| Weight of the main Machine | 13.8 Kg |
| MOQ | 3 Set |
| Usage | Garage Shutter Door |

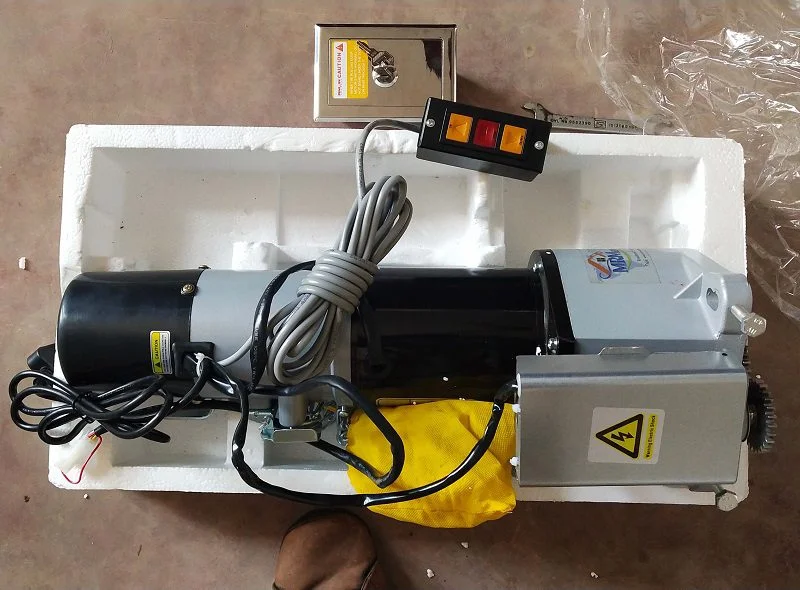

| Package Included | Motor, Radiofrequency Receiver, Remotes |
| Application | Residential, Industrial, Commercials, Warehouses, Hospitals, Malls, etc. |

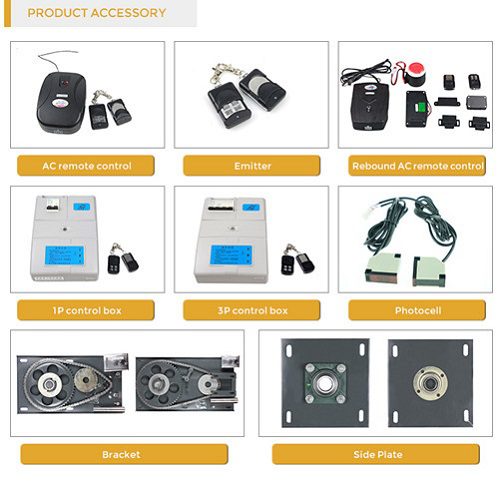

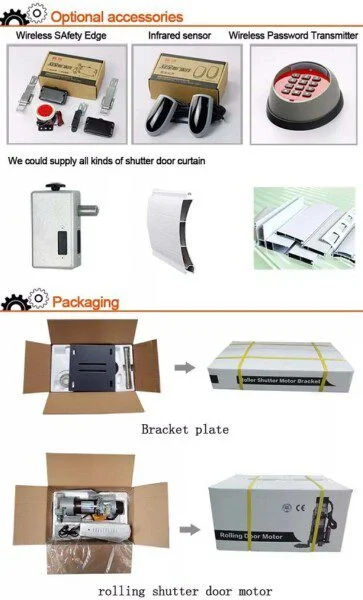

| Optional Accessories | Bluetooth controller, Wi-Fi mobile access Controller, RFID with Detector, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Photocell sensor, Electrical Side lock and center Lock, Bluetooth USB Controller, Safety edge, and Safety Break system. |
Modern Single Phase Motors are available: 300KG-1p, 400KG-1p, 500KG-1p, 600KG-1p, 800KG-1p, 1000KG-1p, and 1500KG-1p.Â
