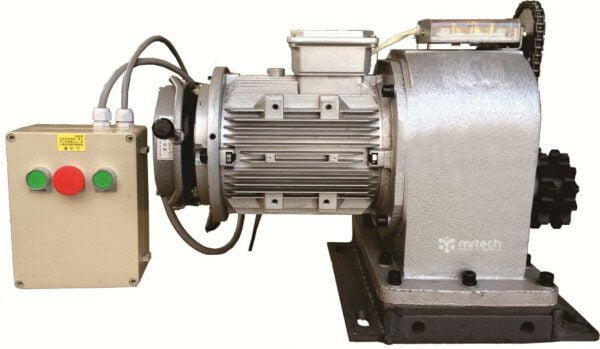

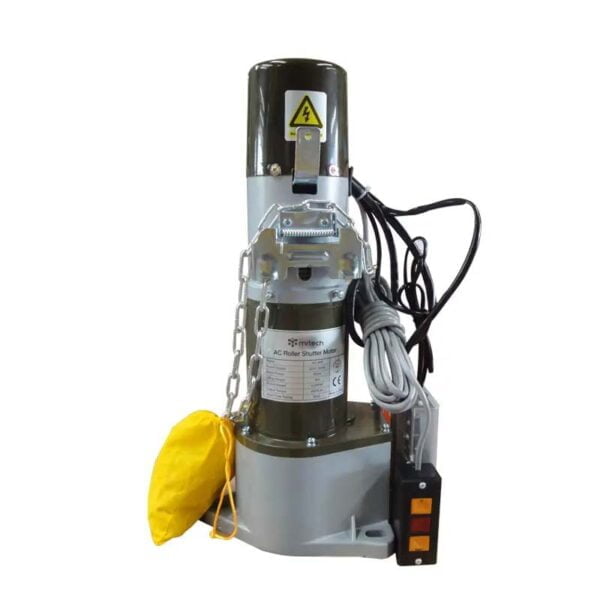

AC Drives 3000kg Heavy Duty Rolling Shutter Motor
MR TECHAC roller shutter motors are widely in extra-large roller shutter doors in commercial, industrial, and residential applications, such as shopping malls, retail stores, banks, factories, warehouses, garages, etc. Our motors and accessories are always manufactured in our factory, with a great emphasis on long service life, up-to-date Technology, and extreme security.
Specification:
| Brand | MRTECH |
| Model No | MR RSMAC30003P |
| Product Name | AC Drives 3000kg Heavy Duty Rolling Shutter Motor |
| Motor Type | Side Rolling Shutter Motor |
| Material | Aluminum Alloy |
| Certified | German |
| Phase | Three Phase |
| Rated Voltage | 380V 50 HZ |
| Rated power | 1500 W |
| Max Lifting Force | 3000 Kg.f |
| Output Torque | 3450 N.m |
| Output Speed | 3.2 r/min |
| Rated Current | 4 A |
| Max Elevating distance | 12 m |
| Diameter of Roller | 266mm |
| Constant working Time | 30 min |

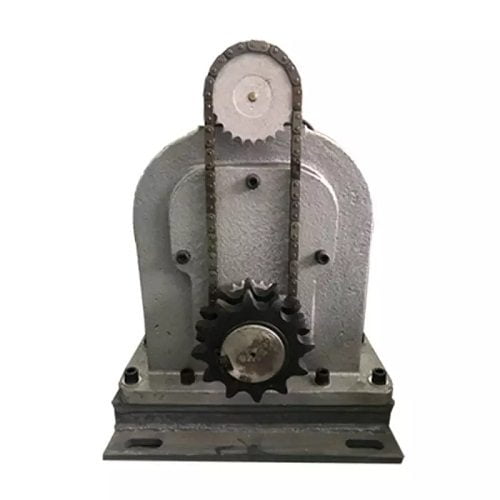

| Type of Chain | 16A |
| Weight of the main Machine | 27.4 Kg |
| MOQ | 3 Set |
| Usage | Garage Shutter Door |

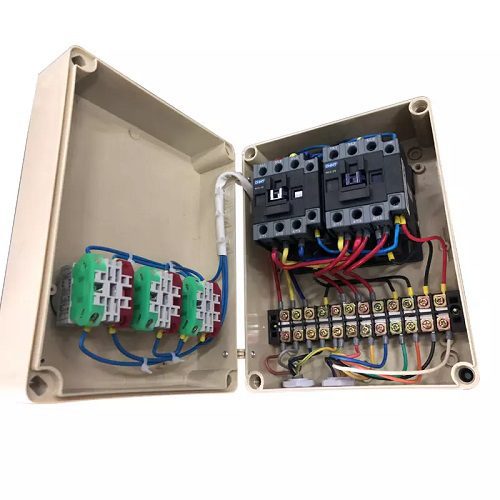

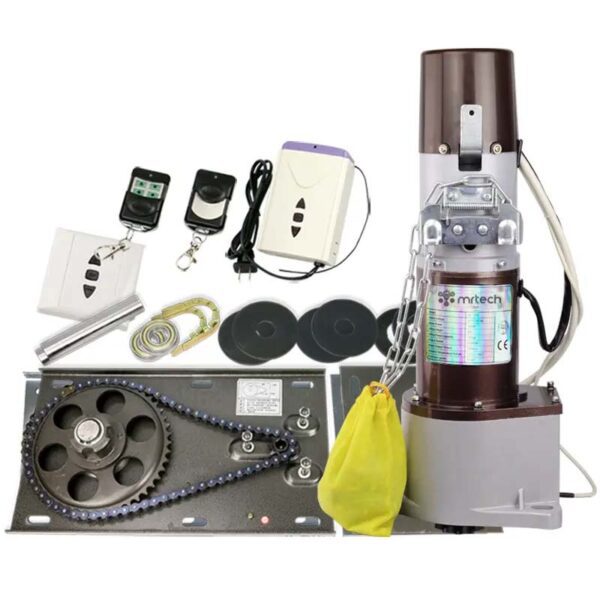

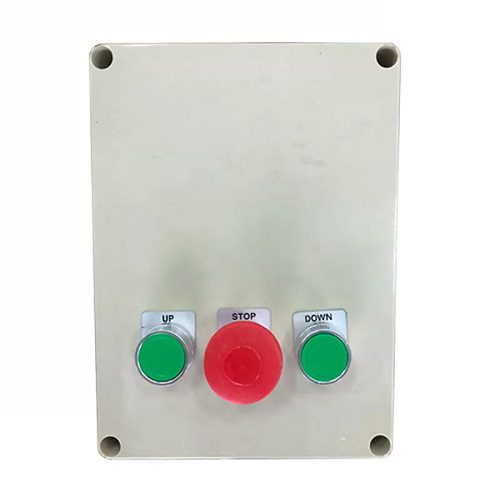

| Package Included | Motor, Control Board, Radiofrequency receiver, Remotes |
| Application | Houses, Icecream Stores, warehouses, Hospitals, Industries, etc. |
| Optional Accessories | Bluetooth controller, Wi-Fi mobile access Controller, RFID with Detector, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Photocell sensor, Electrical Side lock and center Lock, Bluetooth USB Controller, Safety edge, and Safety Break system. |
Products Features:
- Widely in extra large roller shutter doors.
- Stylish design, up-to-date Technology.
- Overheat protection and overload protection.
- Low noise
- Easy manual operation when power failure
- Precise/accurate Limit switch
- Long service life, Durable
| Notice | If you want to place an order, please contact the seller, and we will calculate the cheapest freight for you! |
