Motorized Wooden Grains Color Rolling Shutter Car Garage Door
Profile Rolling Shutter Door
Wood Grains Rolling Shutters door, beautiful and practical new structure, specially designed high-strength wind-resistant door against the wind of typhoons in coastal areas, sand inland area, wind-resistant door plate use high strength color-coated steel door galvanized steel cold-rolled.
Features:Â
Heat preservation, heat insulation, sound insulation, noise reduction, bad weather resistance, and corrosion resistance. It’s the alternative product for domestic single-piece Wood Grains Rolling shutter doors.
Included in Product
Wooden Grains Color Rolling Shutter Car Garage Door Slot With Powder Coating, MS Drum, Channel, AC 1p Shutter Motor With Chain And Manual Break System, Receiver With Remote Controller, Manual (Up,Stop,Down) Push Button With Safety Key Box With Key, Fixing Accessories Kit, Bluetooth Mobile APP with Remote Controller
Application
Residential, Industrial, Commercials, Warehouses, Hospitals, Malls, etc.
Specification:
| Product Name | GI Wooden Grains Color Rolling Shutter |
| Open type | Rolling; |
| Control model | Remote control(Standard), push button; |
| Door slat type | 80mm; |
| Opener | MR RSMAC600 based on the doorway’s size; |
| Thickness of material | 0.8mm/1.0mm/1.2mm; |
| Hardware | High-quality galvanized alloy hardware; |
| Color of panel | Â wooden Grains, White, grey, silver, red, green(standard colors), or customized follow need; |
| Package | Carton for full container or plywood case; |
| size | 15 feet x 8 feet, square feet |
Colors
| Brand | MR TECH |
| Model No | MR RSMAC600 |

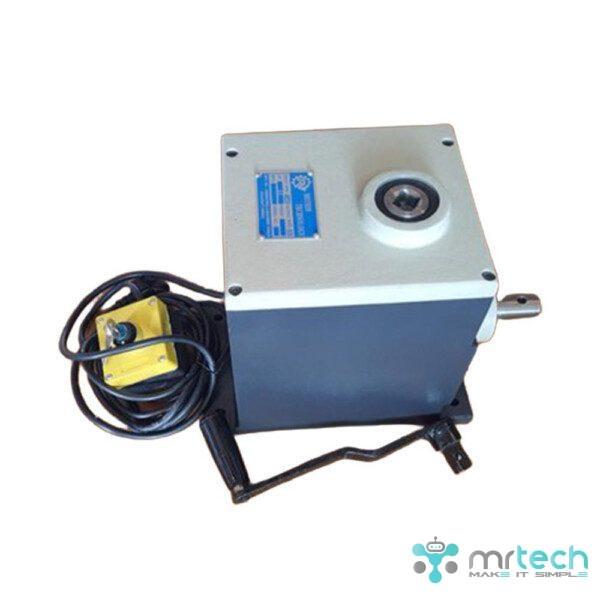

| Product Name | 600 kg Single Phase Rolling Shutter Motor |
| Motor Type | Side Rolling Shutter Motor |
| Material | Aluminum Alloy |
| Certified | German |
| Phase | Single Phase |
| Voltage | 220V 50HZ /220V 60HZ /110V60HZ |
| Input power | 530 W |
| Max Lifting Force | 600 Kg.f |
| Output Torque | 412 Nm |
| Output Speed | 5.3 r/min |
| Rated Current | 3.9 A |
| Max Elevating distance | 6 m |
| Max diameter of Roller | 0.48 m |
| Type of Chain | 10A |
| Weight of the main Machine | 12.8 Kg |
| MOQ | 3 Set |
| Usage | Garage Shutter Door |
| Package Included | Motor, Radiofrequency Receiver, Remotes |
| Application | Residential, Industrial, Commercials, Warehouses, Hospitals, Malls, etc. |
Working Environment and Working Conditions of 600 kg Single Phase Rolling Shutter Motor:
- GI Wooden Grains Color Rolling Shutter Working temperature: -20°C∼+50°C, relative humidity is below 90% (25°C), changes in the ambient air temperature with the season).
- Use it indoors or in similar places, and pay attention to moisture, and rain.
- Short-time working, continuous operation shall not exceed 7 minutes.
- Installation height of rolling door motor, not less than 2.5 meters.

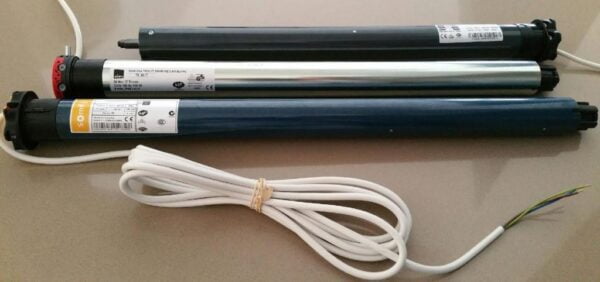

| Optional Operators | Rolling Side Motor, Center operators, Tubular Opernner |
| Optional Accessories | Bluetooth controller, Wi-Fi mobile access Controller, RFID with Detector, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Photocell sensor, Electrical Side lock and center Lock, Bluetooth USB Controller, Safety edge, and Safety Break system. |
