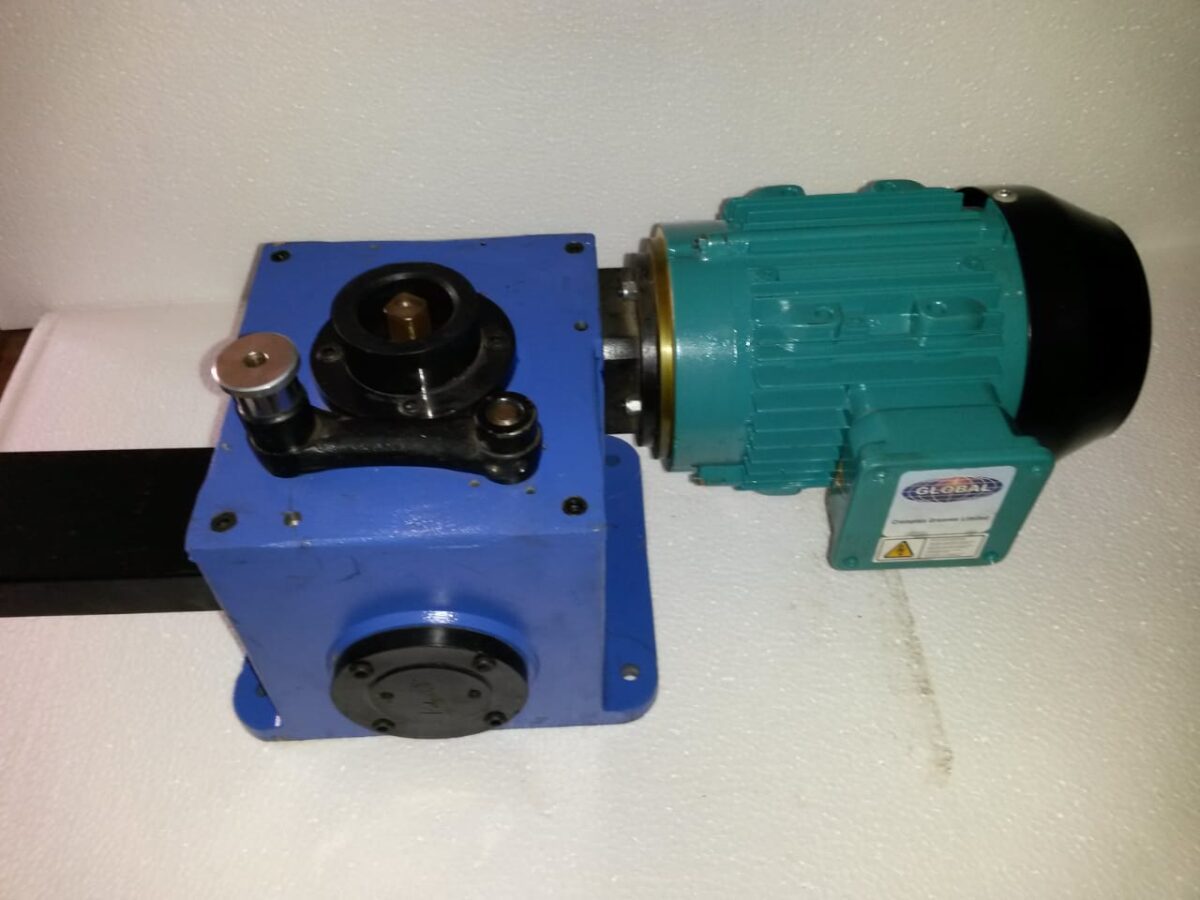

Wall Mount Type Shutter Gear Operator
Owing to the presence of our expert team members, we have been able to offer a wide range of Rolling shutter Gear operators. These are available with us in various technical specifications and range as per the precise demands and requirements of clients.
Benefits of Rolling Shutter Gear Motor:
Rolling Shutter Gear Motor Operators are the next step in mechanical development. They are made up of a gearbox that is directly attached to the motor. This eliminates the need for a motor adapter and coupling since the motor pinion meshes directly with the high-speed gear in the gearbox. Eliminating these additional components results in a lighter, more compact solution, as well as fewer wear components, resulting in less maintenance for you and your team.
A geared motor has several other advantages. Let’s go through the top benefits of using a geared motor.
- Overworking for a short time.
- Built-in Control panel.
- Overheat Protection.
- Limit Switch Unit enables precise adjustment of door in UP and Down positions.
- Electric and manual operations.
- Shutter Gear Operator has Both sides of manual operation in case of power Failure.
- Key type and Push button extension possible.
- Smooth Noiseless Function.
- Safety Protection Sensor
Specifications:
| ITEMÂ | DESCRIPTION |
| Brand Name | MR. TECH |
| Model Number | Gear Motor MR-RSGM500 -2000KG |
| Type | Automatic Operator, Wall Mount Rolling Shutter Motor |
| Name | Gear Motor, Wall Mount Shutter Motor |
| Usage | Garage, Shutter |
| Material | Mild Steel |
| Mounting Type | Wall Mounted |
| Voltage | 230V / 440 |
| Frequency | 60Hz |
| Continued Working Time | 10Mins |
| Max. Lifting Height | 15-20Feet |
| Winding | Copper |
| Gear Drive Type | Helical Spur Gears |
| Weight Capacity | 500Kg TO 2000KG |
| MOQ | 3 Set |
| Application | Residential, Commercials, Industrials |

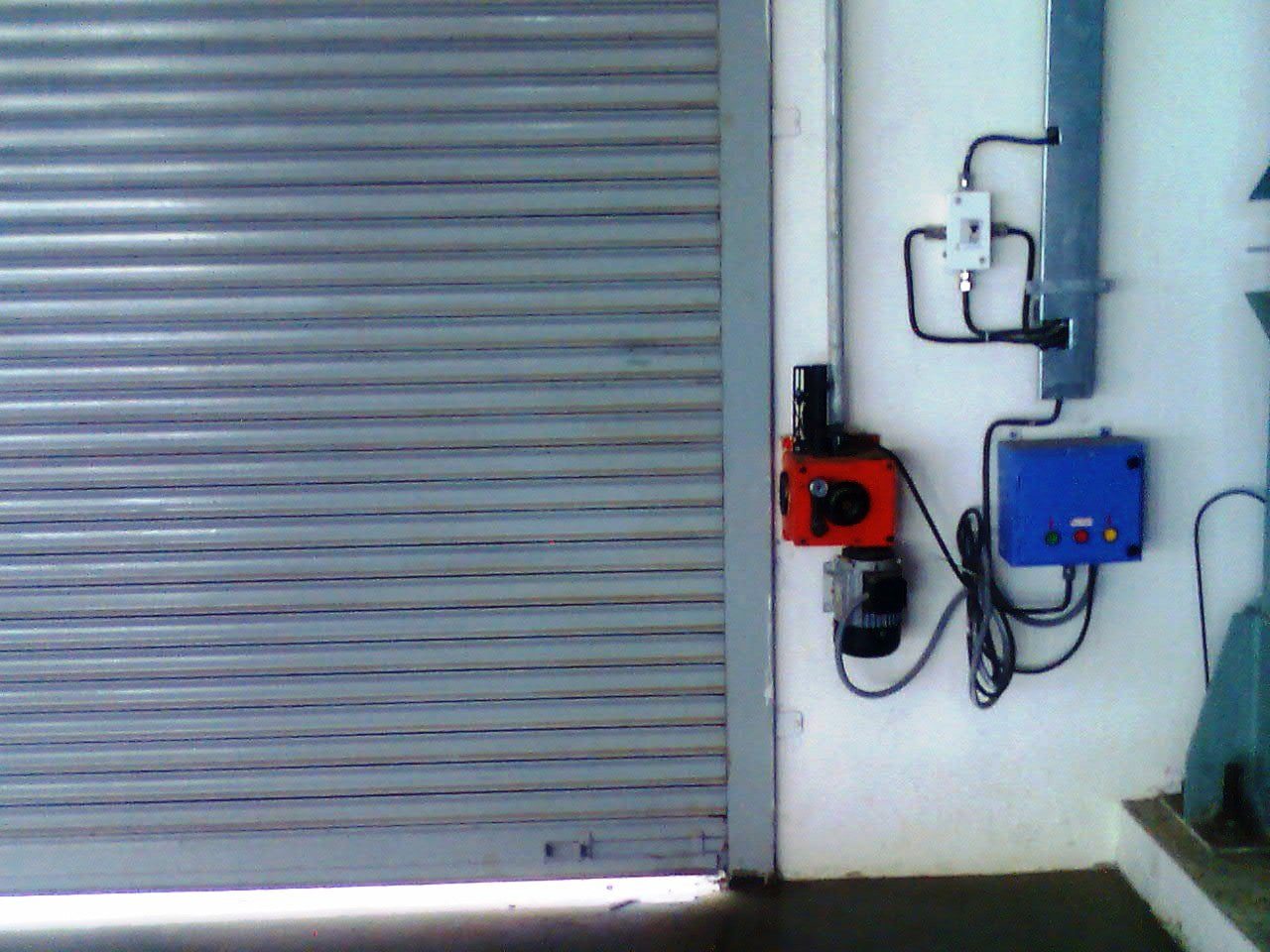

WALL MOUNT TYPE SHUTTER OPERATOR
| Width | 9″inch x 22mm |
| Length | 9″inch x 22mm |
| Height Form Wall | 9″inch x 22mm |
| Reduction Ratio | 26/1, 26:1 |
| Output Shaft Dia | 24.5mm |
| Worm Input Hole | 14mm for 1/2Hp & 19mm1hp to 2hp |
| Motor Mounting Type | Face mount / B14 searise |
| Bevel Gear | EN-8 tempered |
| Worm Wheel metal | Phosphere bronzee Screw type |
| Output RPM | 55rpm |
| Input Motor RPM | 1440rpm |
| Limit control type | progressive Screw type |
| Limit switch type | DV-5 / mICRO LIMIT SWITCH |

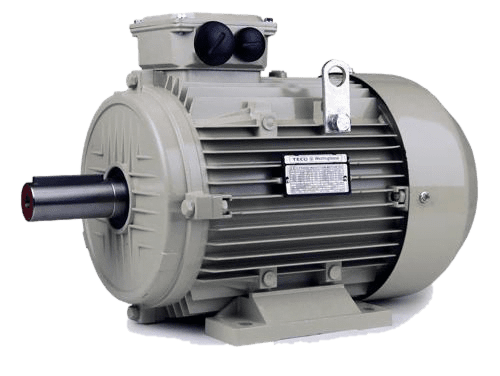

| Input motor 3phase | 1/2hp to 2hp as per shutter size |

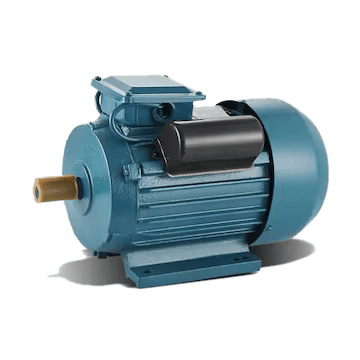

| Input motor 1phase | 1/2hp to 1hp as per shutter size |
| Torque | 500kgfcm to 2000kgfcm according to motor |
| Lubrication | Grease Base |
| Door Cycels | 60% |
| Unit weight | 38kg with motor |
| Door Speed | 3.5 mtr/min |
| Manual Operation | Cranke handle |
| 1HP 3HP CROMPTION MOTOR DATA | |
| Motor Model | 0.75kg4 |
| Kilo watt | 0.75 |
| ferquency | 50 +-5% |
| Volts | 415+ -10% |
| Amps, cap | 1.8amp star connection |
| RPM | 1410 |
| fRAME SIZE | GD80m |
| Enclosure | TEFC |
| Den. of protection | ip-55 |
| Mounting type | B14-face mount |
| Optional Accessories | Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Lock box with key. |
Which Motor is More Powerful AC or DC?
Wall Mount Type Shutter Gear Operators are generally considered to be more powerful than DC motors because they can generate higher torque by using a more powerful current. However, DC shutter motors are typically more efficient and make better use of their input energy.
Electrical Type Rolling Shutters are operated by using a range of electrical actuators capable of operating shutters of all sizes. They are made up of self-braking worm gear with hollow shafts, integrated limit switches, and integrated safety brakes with overload protection. Operationally, Rolling Shutter Gear Motors are relatively easy, hassle-free, and extremely safe and operate by integrating the control accessories like push-button, key selector, or remote controls. During downtime, the option for manual operation is also available
