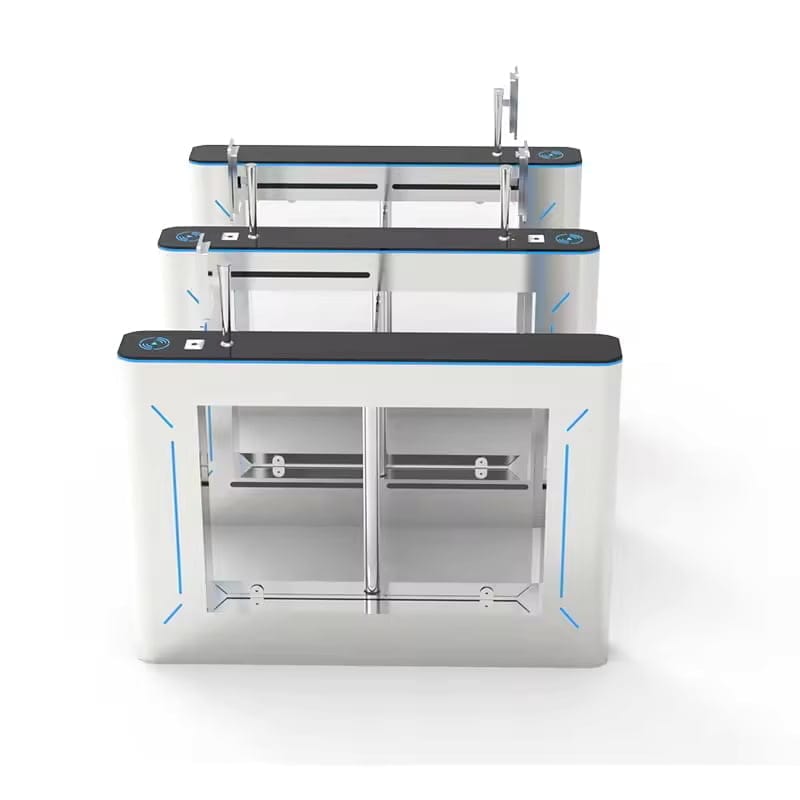

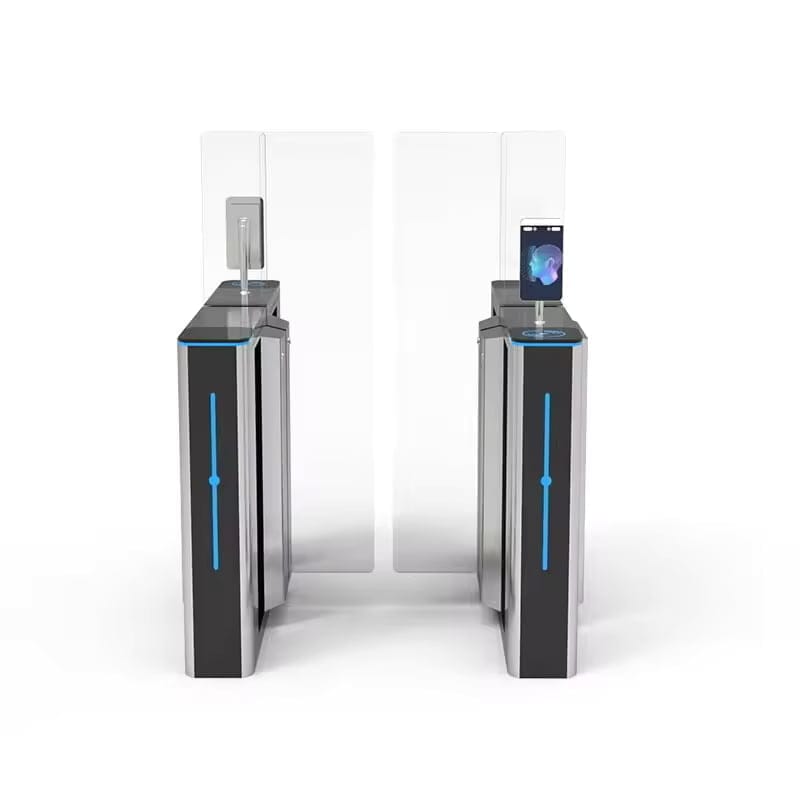

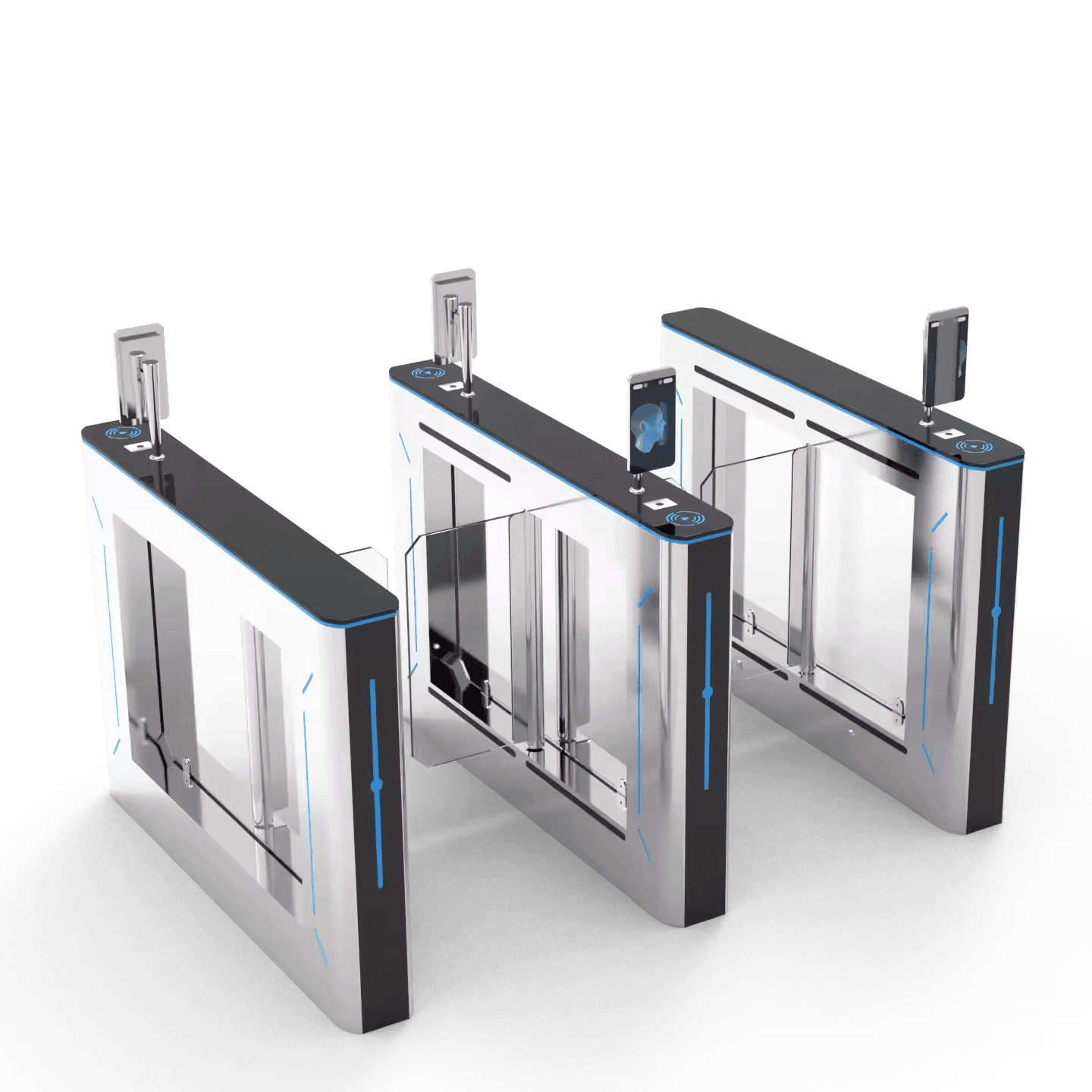

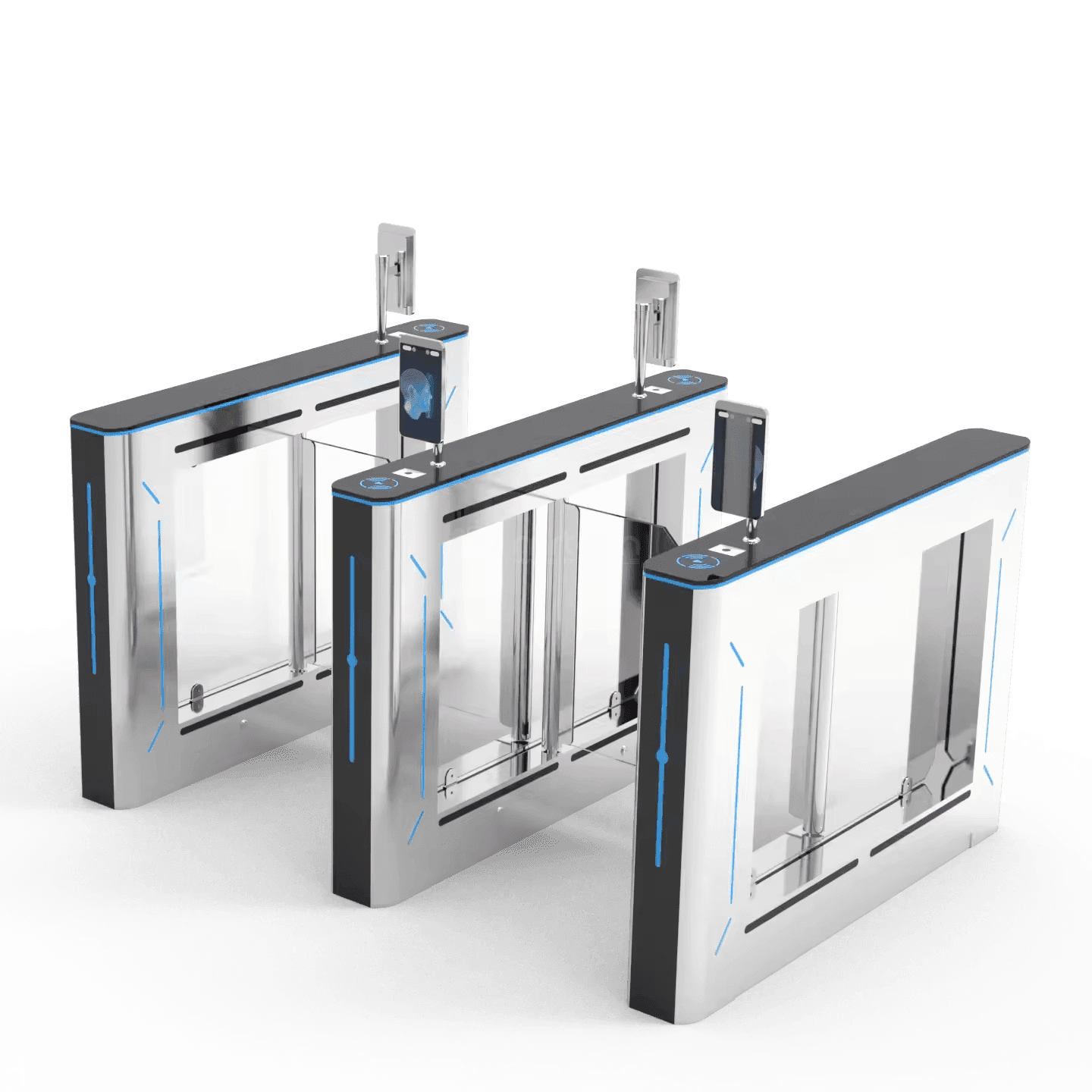

304 Stainless steel Swing Barrier Gate Turnstile Access Control Solutions
Swing Barrier Gate are also available in a variety of styles, from basic models to more advanced ones that include features such as automatic closing and locking. Additionally, many Turnstile Access Control can be customized to match the aesthetic of the building in which they are installed.
In terms of installation, Swing Barrier Gate Turnstile are relatively easy to install. They can be placed either in a recessed or surface-mounted position, and they can be powered by either AC or DC power.
Features:
- The turnstile is intended for facilities with high traffic capacity: stadiums, universal sports complexes, exhibition centers, concert halls, cultural and educational institutions, transport facilities, etc.
- Â Full-featured integrated access control software;
- Â The integrated reader is designed to read contactless cards and all types of barcodes;
- Â The interactive screen supports graffic and video display;
- Â Convenient and user friendly management interface + API for connecting an external ACS;
- Â High capacity. Instant triggering when a card or ticket is presented;
- Â A two-way intelligent light display module shows the direction of passage and ticket category;
- Â A patended unique anti-panic system-when alarm is triggered, the arms move to the lower position, therby ensuring an unobstructed passage;
- Â A dapted to work in extreme conditions. Outdoor operation is possible both in the conditions of the Siberian winter and the heat, humidity and dust of Qatar.
Product Technical Parameters
| Model Number | MR B286x |
| Product name | 304 Stainless steel Swing Barrier Gate Turnstile Access Control Solutions |
| Application | Security Access Control Management |
| size | 1400*185*1000mm |
| Material | SS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | AC 220V/110V 10% 50/60MHZ(optional) 220V, 50H; (support adjustable) |
| Type | full automatic or semi automatic |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single core movement: 70KG / double core movement: 80KG |
| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Special Functions | 1. support normally open, normally closed, power failure door opening, fire linkage. 2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback; |
| Advantages |
|
| Secondary development | 1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment; 2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ) |
| patent | patented design products patented movement utility model products |
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
FAQ
Can this swing barrier gate wiyh anti-tailaing alarm?
yes, Anti-alarm is our standard request.
What is the using lif of this Swing Barrier Gate Turnstile?
More than 5,000,000 times.
Can I using our own access system to control the swing barrier gate?
Yes, the swing turnstile gate can receive the signal from your access control system and running.
Can you offeraccess control system?
Yes, we have our access control system like rfid cards, QR codes, Barcode. Ticket selling systems, face recognition. ect.
Can you make my own brand?
Yes, we have 12 ODM Experience since 2009. we can make our private design and logo.
What is the warranty policy?
During 12 months warranty period. any parts running wrong or problems, we will send the free to replace.
